Description

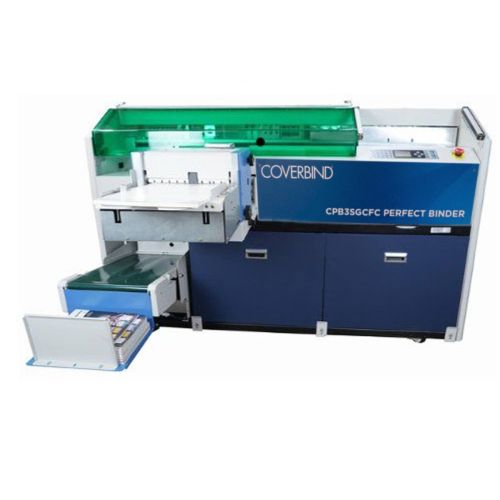

Bookbinding has never been easier with the Coverbind CPB3SGCFC Perfect Binder with Side Gluing, Cover Feeder, and Creaser. Its functional design makes it ideal for medium to large volume binding, and its simple operation is an added bonus. The machine is equipped with an automatic cover feeder with creaser and a vertical stacker to increase productivity. The two separate glue tanks and rollers evenly apply adhesive to the main cover and the spine of the book. Adjust the book’s thickness by simply turning the lever dial to the right to angle the book or to the left to round it. By lifting the cover and adjusting it up and down, the spine position of the book can also be adjusted. The scrapping and milling system on this binding machine ensures that coated, oil-infused, and UV coated materials adhere. It also has a vacuum system that collects dust and other debris after the book spine is cut, keeping your machine and workspace clean. This machine stacks completed books vertically in a loading box for the convenience of the operator.
Features:
* Fast Binding. Bind up to 360 books per hour, depending on the book specifications and operator capabilities.
* Efficient Controls. A simple control panel lets you customize the machine to your specific job quickly.
* Automated Clamping. A pneumatic powered clamping mechanisms automatically adjusts to your book block thickness up to 2-1/4”.
* Optimum Glue Penetration. Roughing blade includes a serrated edge with 4 notching pins for maximum glue penetration and finished book strength.
* Specialized Nipping. Set the nipper to produce an exceptionally square-backed book with an adjustable height and dwell time up to 8 seconds.
* Stronger Bind. Side gluing on the front and rear of the book block makes for exceptional finishing.
* Saturated Glue Coverage. Twin gluing rollers saturate the spine with adhesive while a separate adjustable metering roller smooths the glue to the optimum thickness.
Specifications:
• Maximum Speed:Up to 360 books/hour
• Max Book Thickness: 2.25″ / 57.15mm
• Compatible Supplies and Accessories:
o Coverbind Standard Perfect Bind Adhesive
o Coverbind Premium Perfect Bind Adhesive
• Max Cover Size: 13.4″ x 30.75″ / 34 x 78 cm
• Maximum Spine Length: 12.5″ / 32cm
• Book Block Size: 12.5″ x 8.7″ / 32cm x 22cm
• Display: LCD Screen
• Clamp: Automatic/Pneumatic
• Roughing Blade: Milling and 2 Heavy Duty Notching Pins
• Rollers: 2 Glue, 1 Metering, Side Glue Tank
• Air Compressor: Air Compressor is Included
• Castors: Included
• Machine Dimensions: 68” W x 75” L x 49” H
• Shipping Dimensions: 45” H x 83” W x 56” L
• Machine Weight:
• Shipping Weight: 1148 lbs.
• Castors: Included on Stand
• Electrical: 220V 60 Hz, 15 amps, single phase (plug not included)
