Description
Easy accurate cutting of all picture framing materials

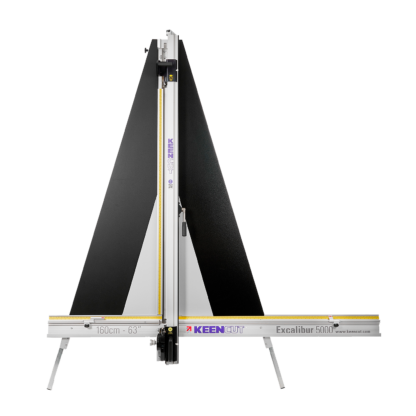

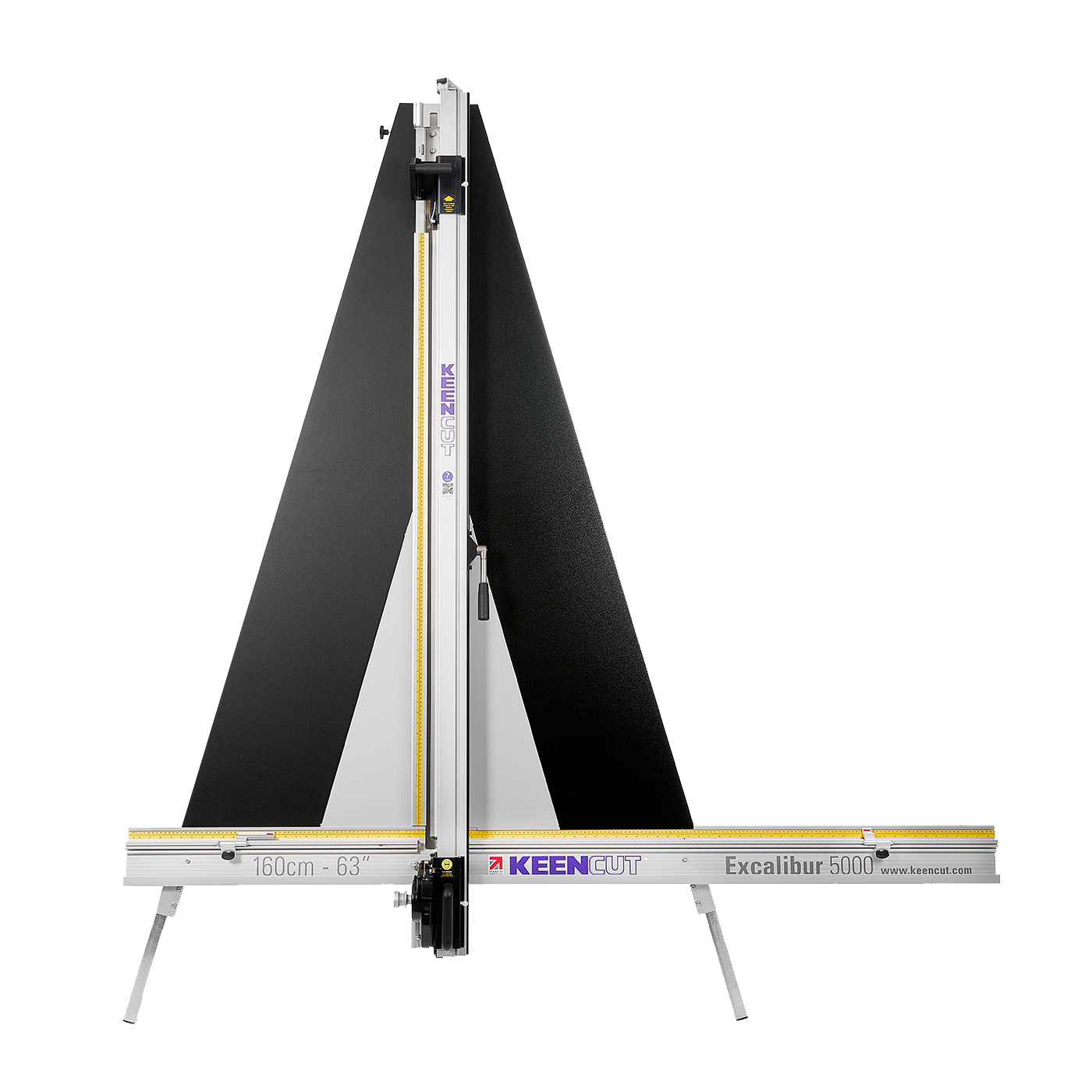

With the 63” Excalibur 5000 you can instantly swap from cutting mountboard, to glass, to MDF.
- Accuracy – All blades cut down the same cut line so that all materials are square and accurately cut to ensure a perfect frame fit.
- Alignment is fast and easy with the flip in/out measuring stops. They help whether you are setting up for a one-off job or volume production cutting.
- Versatile Cutter– The two heads house four cutting tools. The lower multi-tool head has a unique ratchet system that provides incremental cutting of thicker materials. The upper twin wheel cutter cuts 3mm (1/8”) MDF in a single pass producing a clean edge. A balance weight parks the twin wheel head at the top when not in use.
- Glass Scoring – To ensure your safety, glass can be scored and broken on the machine. A slightly recessed left-backing panel is designed to break out glass with minimal effort and no need for additional tools.
- Reduced set-up time – Cutting and scoring tools are permanently fitted for immediate selection and use. Quick set production stops can be adjusted rapidly.
- Reduced user fatigue – Vertical design utilizes body weight to minimize the effort needed to cut tough materials.
- Space saving – To minimize the required floor space, the Excalibur 5000 comes complete with wall mounting brackets. For those with limited wall space or requiring more flexibility a free-standing kit is also available.
- 5-year guarantee
Perfect for cutting…
- Mountboard
- Conservation board
- MDF up to 1/8” (3mm)
- Cast acrylic / Plexiglas up to 3/32” (3mm)
- Glass up to ¼” (6mm)
- Foam centered board up to ½” (13mm)
- Cardboard up to ½” (13mm)
- PVC Foamboard up to ½” (13mm)
- Corrugated plastic up to ½” (13mm)
Consistent perfect cuts every time:
The Excalibur 5000 cuts all materials down the same line, so there is no need to alter production stops for different materials. After a simple initial set-up, the cutter maintains permanent 90-degree accuracy. A one-piece, horizontal squaring arm ensures positioning and rigidity either side of the cut line and accuracy is assured with a clear sightline strip acting as your guide to precise alignment. Materials are then held firmly by a unique pressure-sensitive clamp, which is designed to protect delicate surfaces from damage.
Saves time and money:
By reducing set-up and cutting time the Excalibur 5000 increases your productivity. All tools are permanently mounted for instant selection, allowing you to switch between cutting mount board, hardboard, glass and acrylic in seconds. All four blades cut along the same line, so you only prepare one stop setting and one measurement. Everything has been designed to save you time, reduce costly mistakes and reduce waste.
Accessories
Medium duty utility blades:
A double ground edge, reversible blade suitable for cutting all types of material
Free standing kit:
Enables the Excalibur 5000 to be installed without fixing to a wall
Easy measuring scale:
Designed to aid in measuring and aligning rigid and semi-rigid materials.
Glass Cutting Wheels:
Replacement tungsten carbide glass cutting wheels (min 5)
