Description

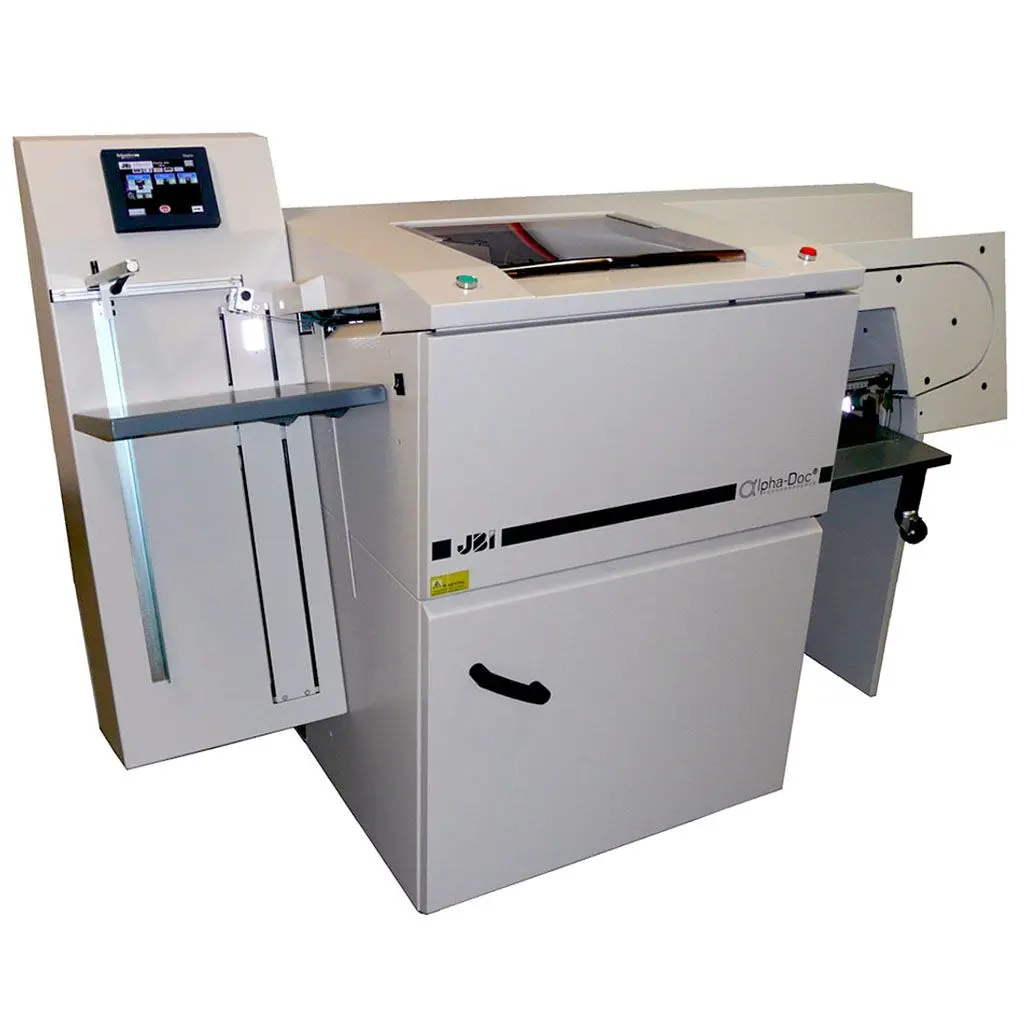

The James Burn Alpha-Doc MK4 Automatic Punch Machine is the ultimate industrial binding punch that will give you the extra mile you need to enhance your productivity. This remarkably user-friendly, high-productivity machine offers a top speed of 90-cycles per minute that can reach outputs up to 54,000 sheets per hour, with realistic outputs of 40,000 sheets per hour allowing time for operator loading & unloading of sheets.
The Alphadoc MK4 offers a dynamic size change feature that is controlled by a conversational touch-key screen and ensures precision punching of a wide variety of documents (now including thumb cut dies for wall calendars). The large capacity of the high pile feeder and reception provides maximum productivity.
The Alpha-Doc punch provides large volume hands-free punching of pre-printed, collated documents directly from your copier or printer including mixed stocks from 16 lb. bond to 110 lb. index. It also punches tabs pre-collated into the finished sets. Tabs must have minimum .25” shoulder. Hands-free operation means your operator is free to perform other tasks. The Alpha-Doc punches a wide variety of material in virtually any size from 5.4″ x 5.4″ up to 14″ x 13″. Our simplified paper path and unique turnover device with receding stacker provide low waste and assure that pages are kept in perfect pre-collated order.
The remarkable Alpha-Doc MK4 combines the versatility and ease of an office machine with the speed and efficiency of an automatic punch for perfect holes every time. Simply load the tray, push a button, and walk away for hands-free punching of pre-collated books, presentations, proposals, reports, and even tabbed sheets.
With a wide assortment of die patterns available and surprisingly fast changeover times, the Alpha-Doc will punch up your document binding productivity without punching holes in your document finishing budget!
Key Features & Benefits:
* High Productivity: With a top speed of 90 cycles / minute, it can punch up to 54,000 sheets per hour without the constant presence of the operator required

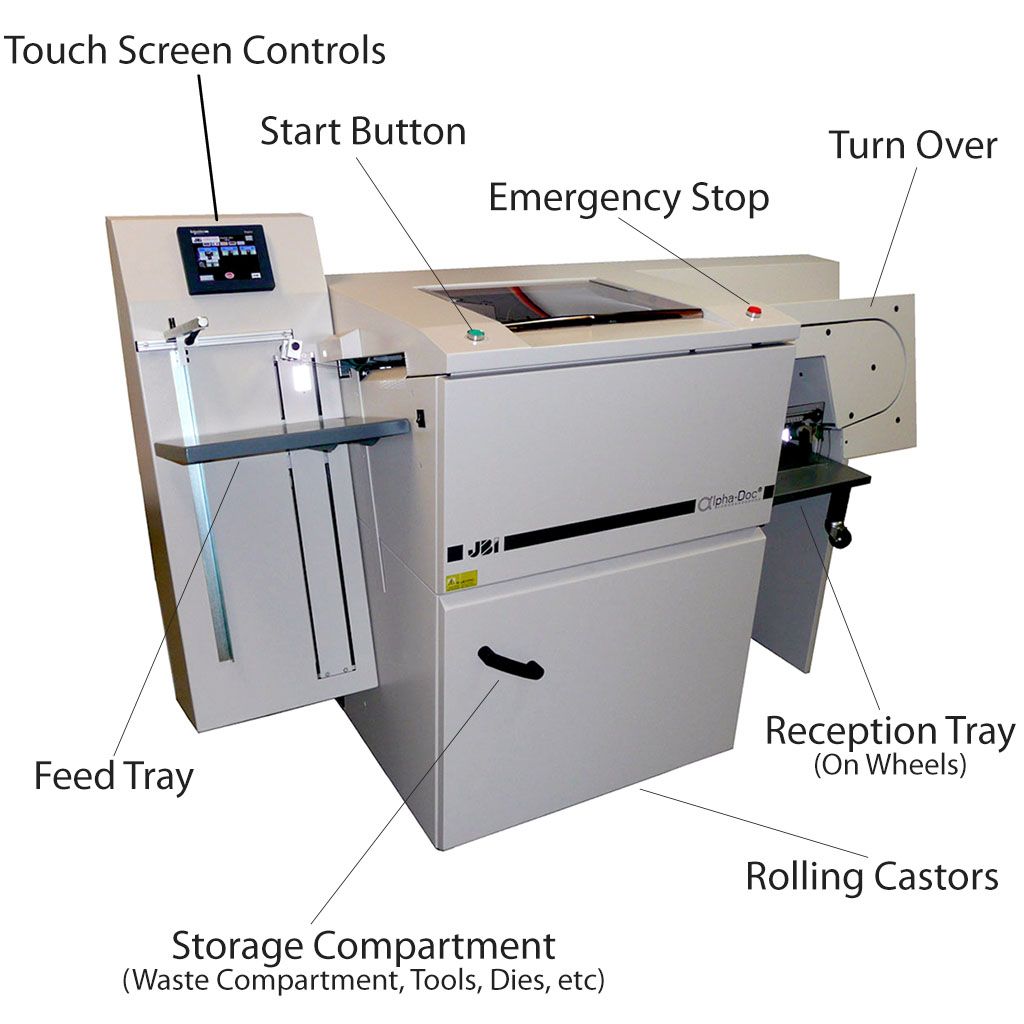

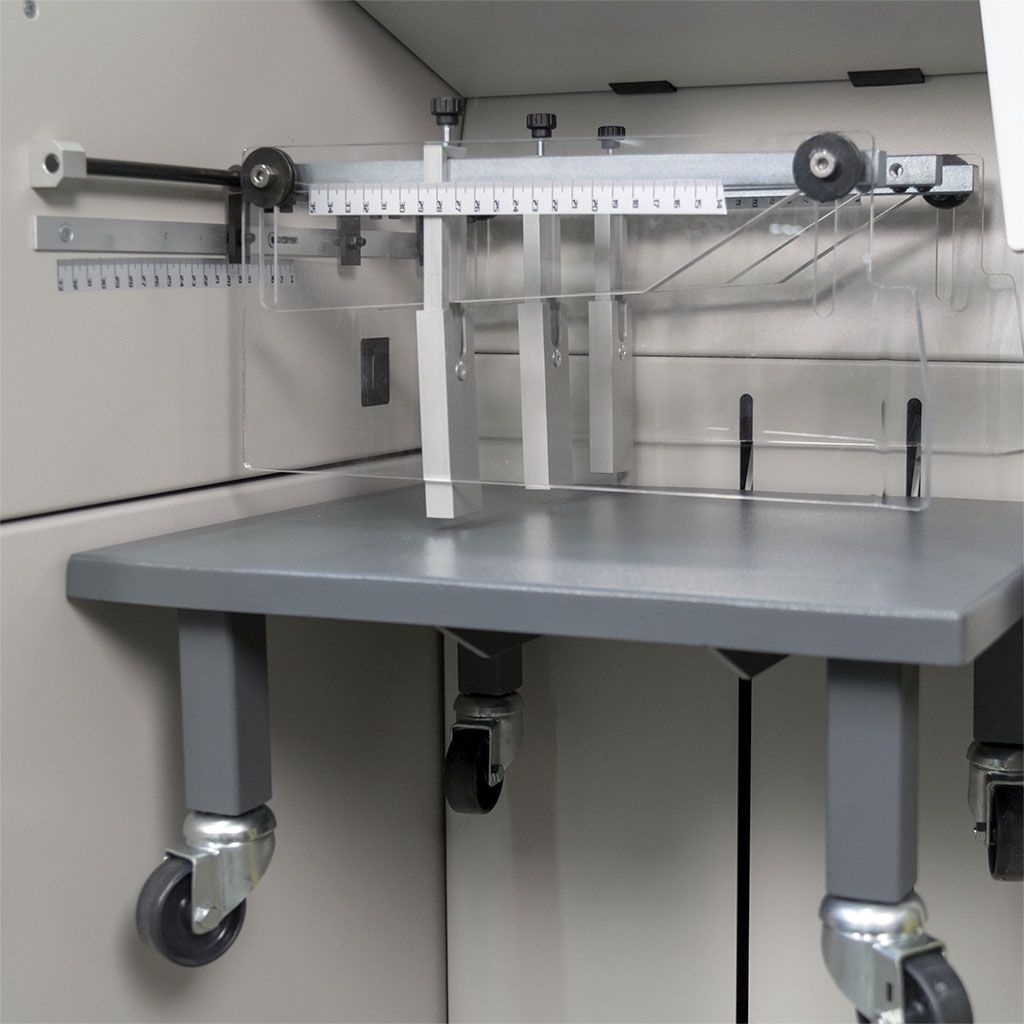

* Large capacity: The high pile feeder and reception trays will accommodate up to 6 reams of paper.
* Versatility: The Alpha-Doc® MK4 can punch a wide variety of paper stock and covers including tab cut sheets and wall calendars with thumb cut, in virtually any size from 5.4″ x 5.4″ up to 14″ x 13″
* Easy-to-Use: Just load the tray and push a button, no special training is required.
* Simple Formatting: Just follow the instructions on the conversational touch screen and, with pre-set standard formats, size change-over can be done in less than 2 minutes.
* Wide Choice of Punching Dies: Original hardened steel dies provide long life time. They can be changed in less than 5 minutes. * Retractable pins allow to produce clean and perfect holes whatever the sheet formats are. The wide choice of punching dies covers all perforation styles now including thumbcut punching.
Specifications:
• Manufacturer: James Burn
• Suggested User: Industrial/Production Binding Style: Wire, Comb, Coil (Depends on Die)
• Operation: Automated
• Compatible Supplies & Accessories: Alpha Doc MK4 Dies
• Punch & Bind Capability: Punching Only
• Setup Time: Less than 5 Minutes
• Die Change Time: Less than 2 Minutes
• Paper Size: 5.4″ x 5.4″ Minimum to 14″ x 13″ Maximum
• Accepted Paper Stock: 16 lb. Bond to 110 lb. Index
• Feed Table Capacity: 8 Reams
• Selectable Speeds: 3 Speed Settings (70, 80, 90 Cycles per Minute)
• Maximum Speed: Up to 54,000 sheets per hour (Depending on Die, Sheet Size, & Other Factors)
• Sheet Pickup: Top of Pile Positive Sheet Pickup
• Maximum Punching Thickness: 1 mm

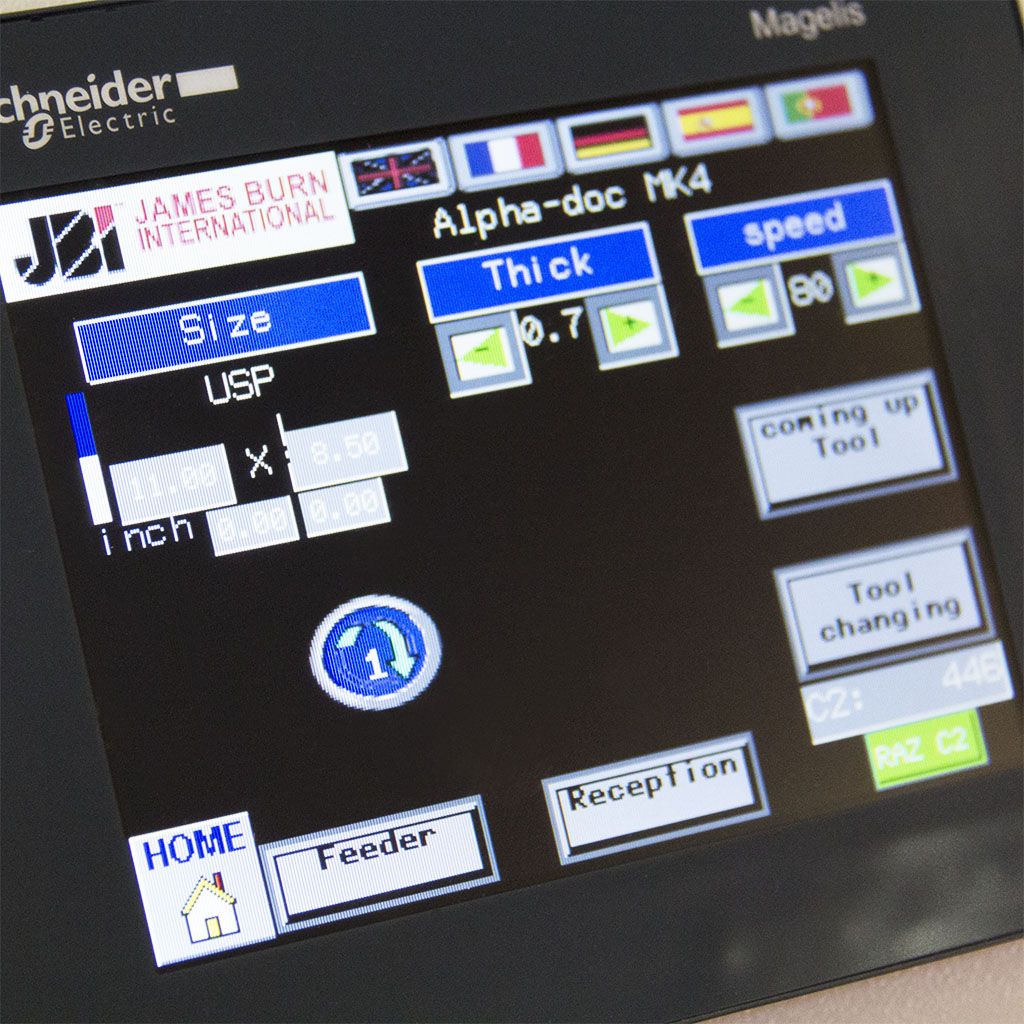

• Control Panel: Digital LCD Touch Pad
• Control Panel Alerts: Paper Jam, Cover Open, Emergency Stop
• Die Sharpening Available: Yes, Express Die Sharpening Service is Available Upon Request
• Disengageable Die Pins: Yes (For Common Paper Sizes, Varies by Die)
• Die / Tool Storage: Storage Compartment on Front (Hold Dies, Oil, Tools, Etc.)
• Monthly Volume: Recommended for up to 3,000,000 Sheets per Month
• Training Required: No Special Training Needed
• Power Requirements: 110v Single Phase 60Hz
• Castors: Yes; Lockable
• Dimensions: 72″ W x 28″ D x 46″ H
• Weight: 650 lbs.
• Shipping Weight: 1045 lbs.
• Shipping Method: Freight Truck
• Warranty: 90 Day Manufacturer’s Warranty
