Description

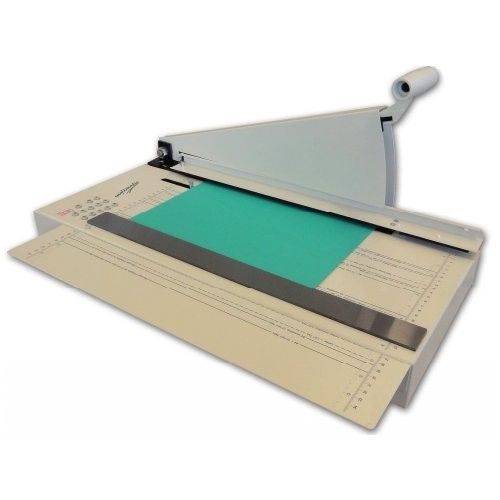

Add the new Onglematic O5P tab cutter from James Burn to your lineup and bring on-demand tab making completely in-house. With this tab cutting machine you control the timeline of your jobs and can offer your clients quicker turn-around. This top-quality index tab cutter combines both manual and electric features to offer you convenience and accuracy while keeping costs down. The cutting action is manually controlled with a guillotine-style blade and handle. The paper stops and then automatically moves to the next position, ensuring accuracy and eliminating the hassle with having to re-align them manually each time.
With the James Burn Onglematic O5P tab cutting machine, you can cut several tab sizes with easy change-over; anywhere from 1/2 cut to 1/12 cut tabs can be achieved, which gives you up to 12 tabs along an 11″ edge, or up to 9 tabs on the short 8.5″ edge. This cutter will cut through up to 15 sheets (20 lb. bond) at a time, or the index and coverstock equivalents. It can also handle plastics, cardboard, and even poly up to the equivalent thickness and density of 120 lb. bond stock. Eliminate additional costs and lead times associated with outsourcing when you buy the Onglematic O5P tab cutter online at Spiral.
How to Use the Onglematic O5P Tab Cutter:
1. Set the magnetic paper stop using the ruled guide to your paper size and desired tab size
2. Pull down the guillotine handle to cut the first edge
3. The guides automatically move to the next location
4. Repeat this process for all tabs in your set
Onglematic O5P Tab Cutter Key Features:
• On-demand tab cutting for quick turn-around
• Combination manual and electric features adds convenience while keeping costs low

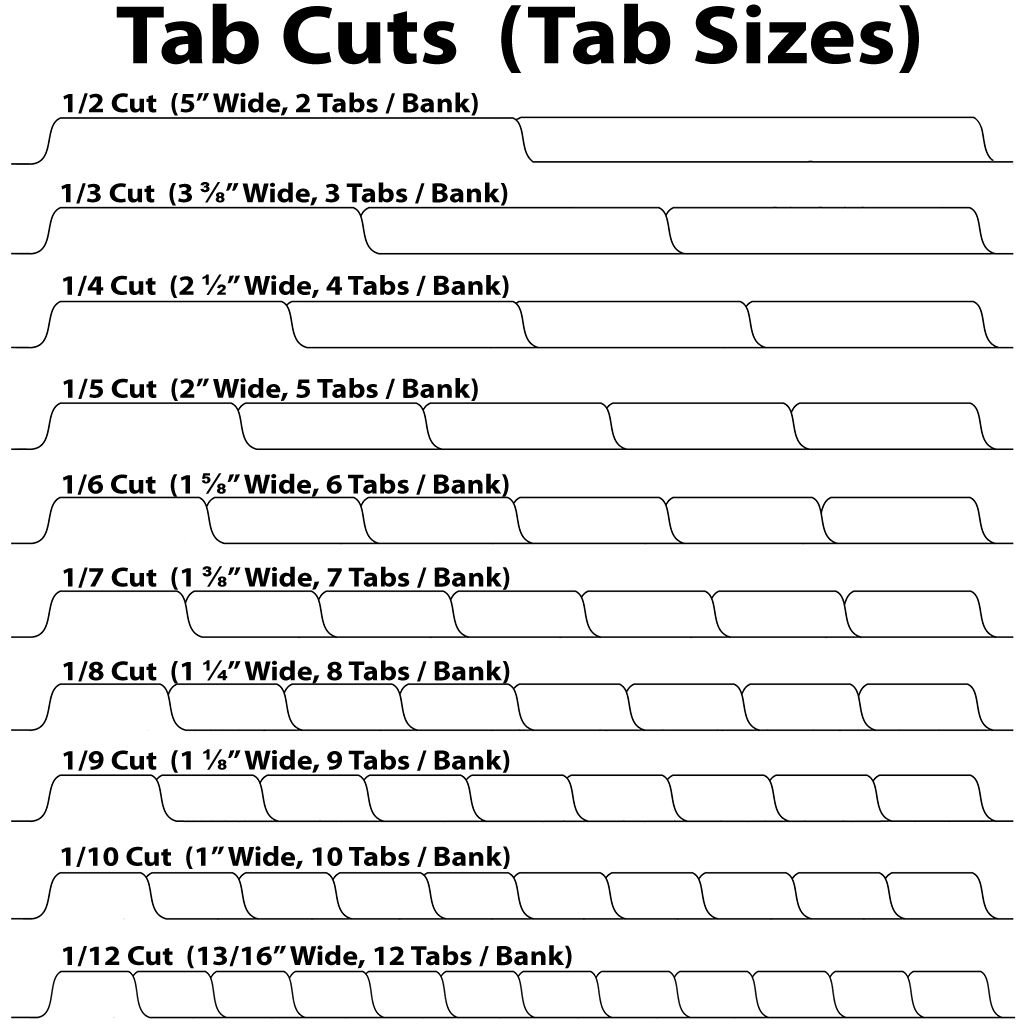

• Creates tab sizes from 1/2 cut to 1/12 cut (5″ Wide to 13/16″ Wide Tabs)

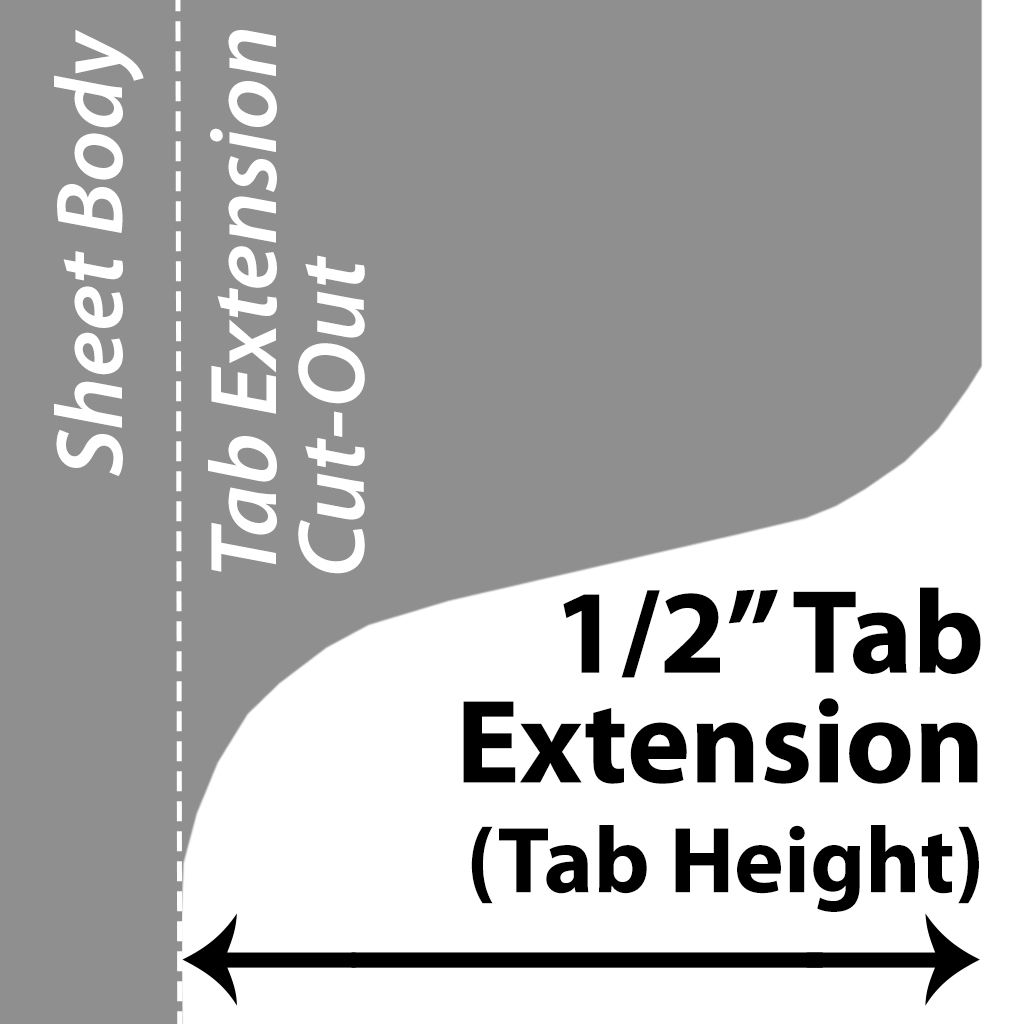

• Creates industry-standard 1/2″ extension tabs
• Can cut through paper, cardboard, and poly materials
Specifications:
• Max Cutting Size: 210 x 297mm (8.5″ x 11″)
• Cutting Thickness: Up to 10-15 sheets / (80gsm)
• Tab lengths: Pre-set
• Voltage: 120/240V- 1ph
• Machine Dimensions: 17.7″ x 30.7″ x 11.8″ (57 x 78 x 30 cm)
• Machine Weight: 22.4 lbs. (6 kg.)
