Description

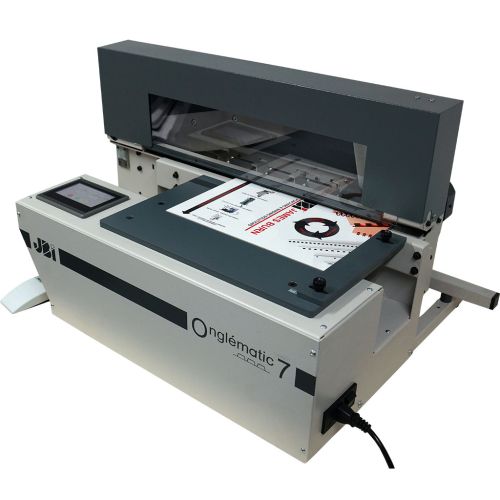

The Onglematic 07 is an affordable semi-automatic electric tab index cutter and divider that can handle medium to high production volumes with ease. It can be used on a tabletop and is ideal for cutting tabs from bound sheets or loose pages. With just 150 sheets (80 gsm) or 550 sets of 9 dividers each hour, it can effortlessly bind up to 60 papers with 10 chapters (220 gsm). There are several cutting dies included for making step tab sets. Quick turnaround on tabbed items that are created in-house so that you have control over the lead time is a special service that you can provide your clients that no one else can.
Top Features:
* Flexible: The Onglematic 7 is a versatile tool that effortlessly handles various materials. It can cut through 15-20 sheets of 20 lb. bond paper, cover stock, cardboard, and poly up to 120 lb. This machine can create both single and double tabs, offering options for up to 59 tabs with the same width or 24 tabs with variable width, and it can store up to 11 programs.
* Productive: The Onglematic 7 ensures efficiency by producing 60 bound documents with 10 chapters each, totaling about 150 sheets (80 lb. cover) or 550 sets of 9 dividers (20 lb. cover) per hour, maximizing productivity.
* User-Friendly: Operating the Onglematic 7 is simple with its automatic functionality. Set the cutter to your paper size (in inches or mm), choose the tab type (single or double), specify the desired quantity of tabs, and use the foot switch to cut the first edge. Repeat the process for all tabs in your set.
* Convenient Design: The ergonomic design allows all operations to be easily performed from the front of the machine. The foot switch activation further enhances user convenience.

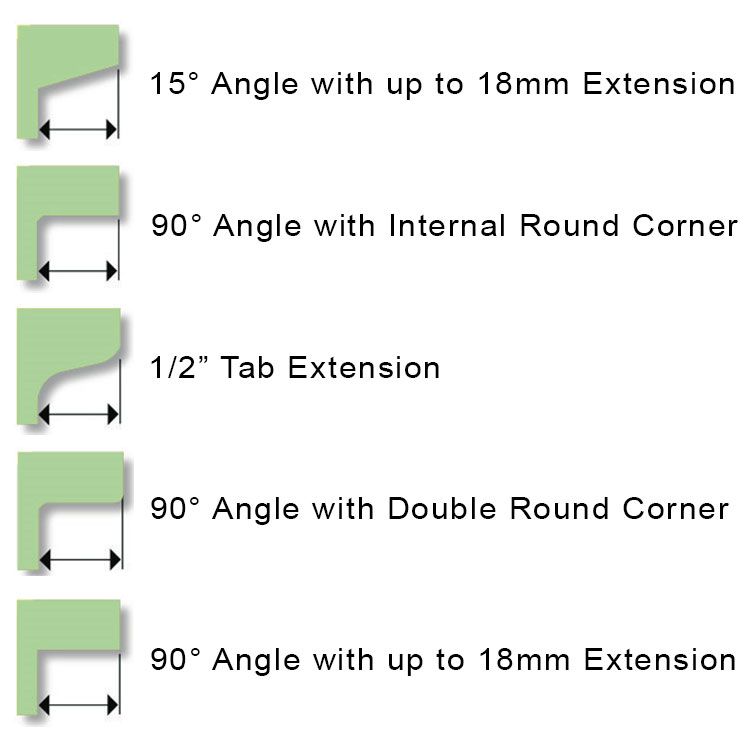

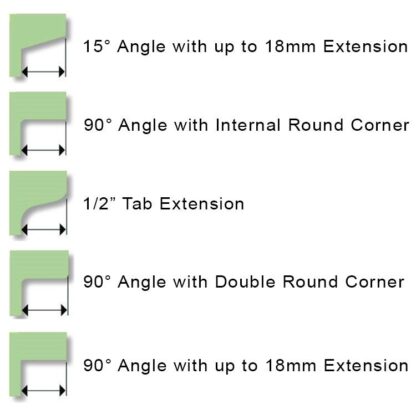

* Various Tab Shapes: Choose from five available tab shapes, including standard, 15° angle, 90° angle, 90° angle with internal round corner, and 90° angle with double round corner. Each tab shape features a ½” tab extension.
* Safety Features: The Onglematic 7 prioritizes operational safety with built-in features, ensuring a secure working environment.

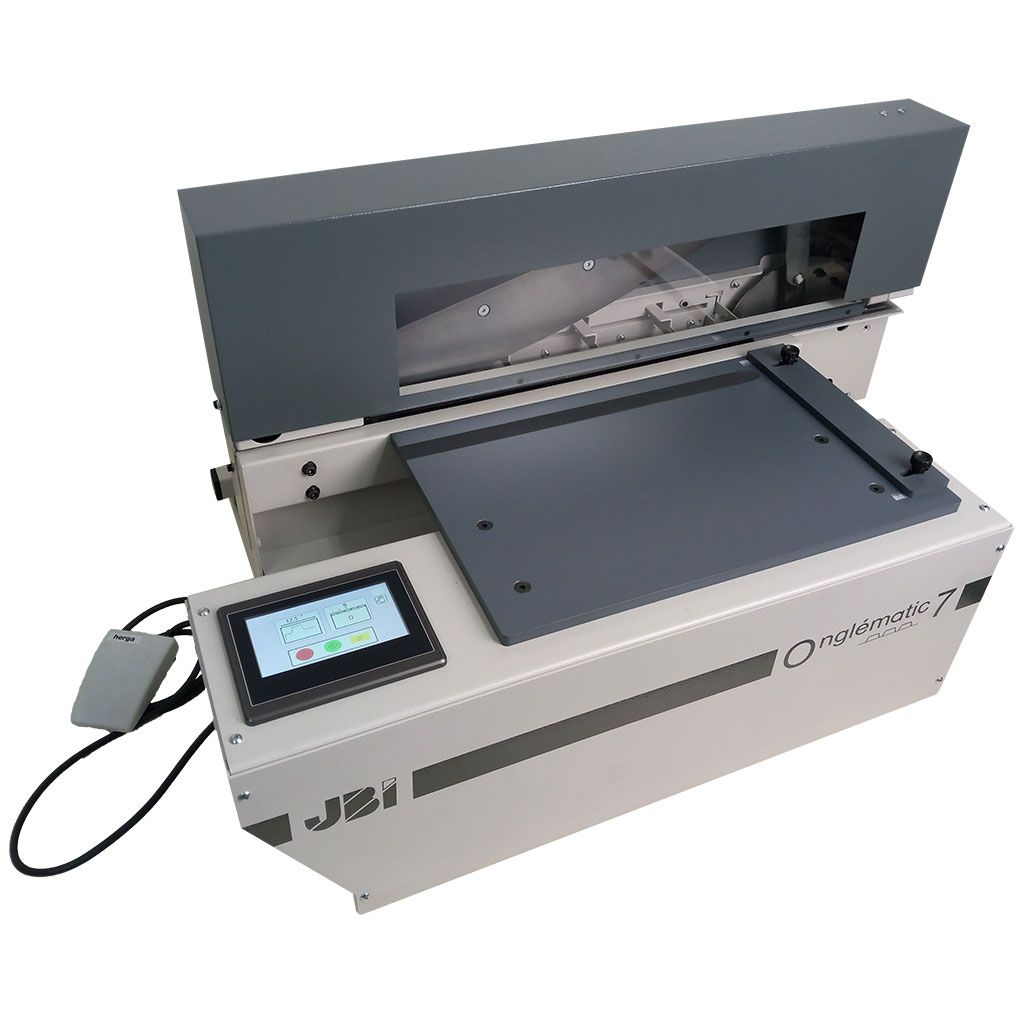

* Hands-free operation is possible thanks to the practical on/off foot pedal.
* The user must review and advance the procedure before it may continue.

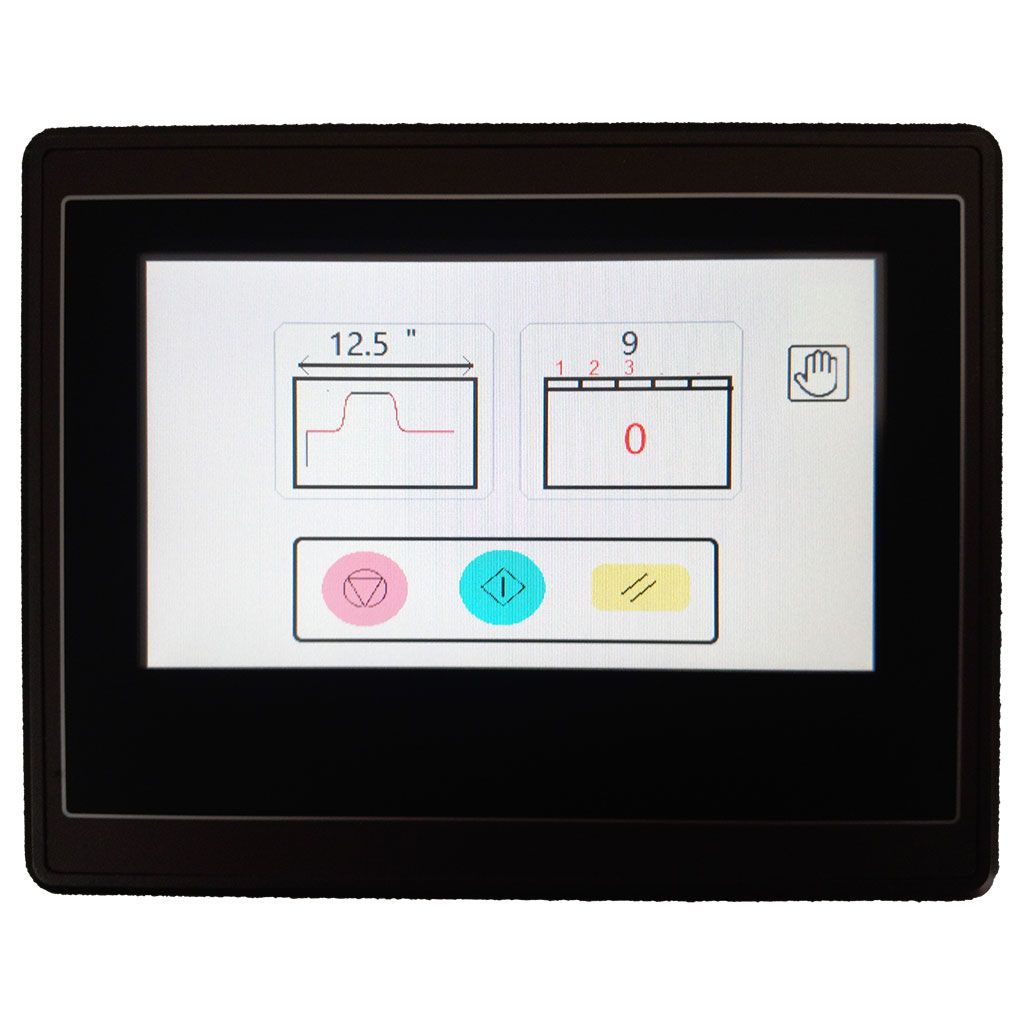

* Users may select the paper size, the kind of tab, and the quantity of tabs they need using a simple LCD touchscreen.
* The clamping technique for bound documents ensures that every cut is straight and uniform.
Specifications:
• Cutting Width: 320mm / 12.5″
• Cutting Thickness: Up to 20 sheets (80gsm / 20lb.)
• Number of tabs: From 2 up to 59
• Number of single tabs with variable width: From 2 up to 24 with storage up to 11 programmes.
• Number of double tabs with variable width: From 2 up to 12 with storage up to 11 programmes
• Control Panel: LCD Touch Screen
• Format Set Up Time:Via LCD Touch Screen
• Power:220/240 V (50Hz) 1ph – 110/120 V (60Hz) 1ph
• Machine Dimensions (WxDxH): 700 x 800 x 420 mm / 27.6” x 31.5” x 16.5”
• Net Weight: 132 lbs.
