Description

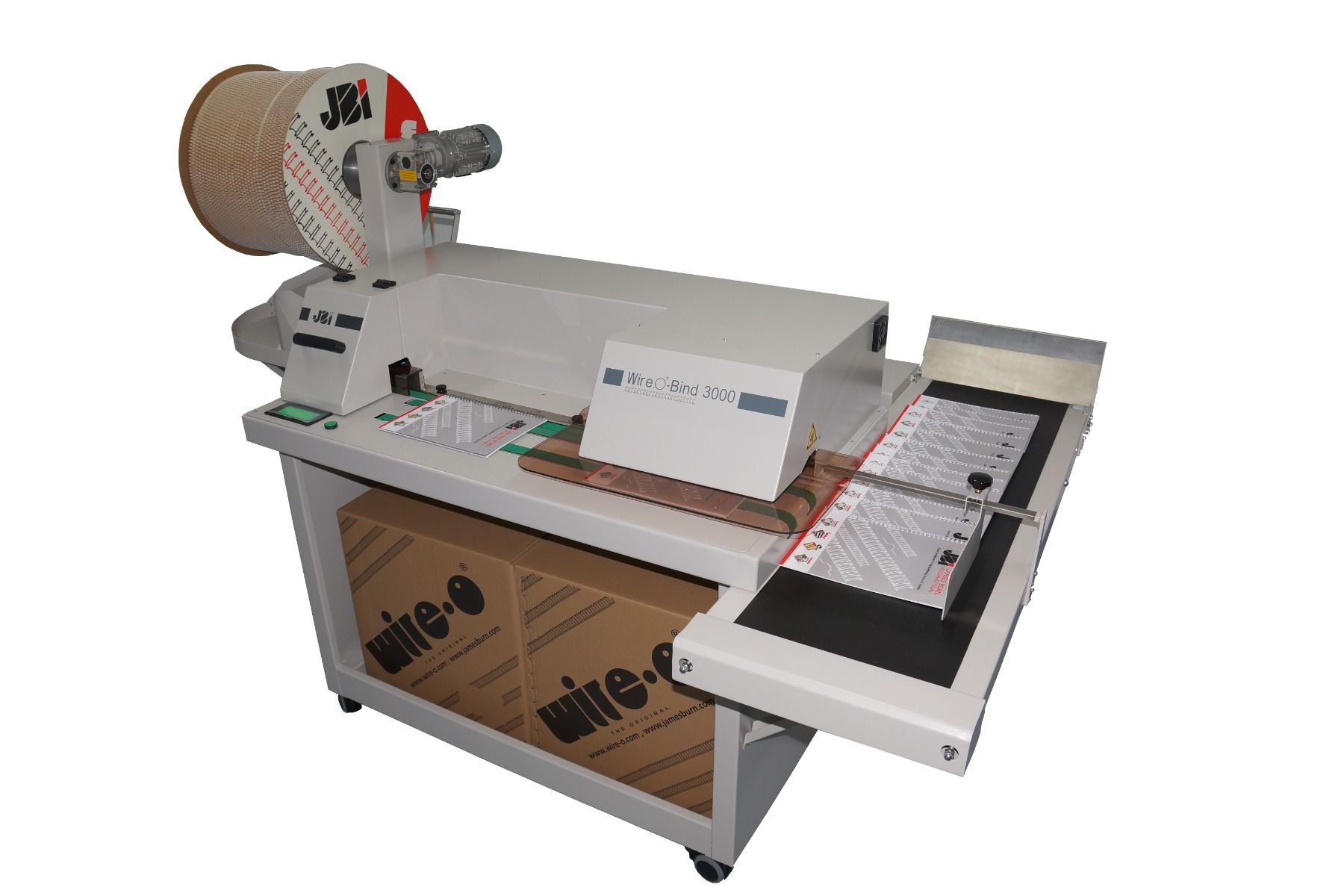

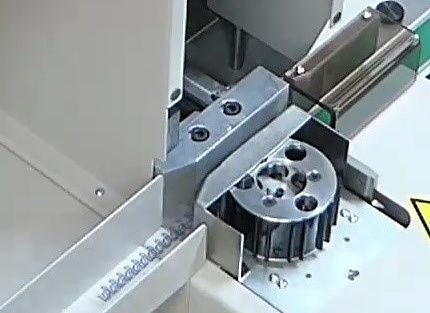

Take advantage of the James Burn Wire-O Bind 3000S Semi-Automatic Binding Machine’s exceptional productivity. This semi-automatic binding machine offers unparalleled versatility when used with Wire-O spools or cut lengths. By allowing settings for sizes and formats to be programmed in and altered without the need for manual changes, the distinctive touch screen digital keypad simplifies setup and operation. The document can be correctly aligned without the use of stops or paper guides by sending it to the closing unit. This wire binding machine automatically feeds, chops, and positions the wire element so that it is prepared for insertion. Because of this automatic setup, waste is also reduced.
Because of its versatility, the WOB3000S can bind a variety of papers with flush cut or overlapping covers as well as larger index tab paper stocks. The task is completed quickly and with little effort thanks to a pace of up to 1,000 documents per hour. Even simple tasks like switching the size of the Wire-O connector and replacing spools can be finished in 2 to 5 minutes.
The machine’s ergonomic design, which offers a spacious table-top workplace, considerably reduces fatigue. This useful tool is transportable and comes with easy-rolling rollers. Use the James Burn Wire-O Bind 3000S Semi-Automatic Binding Machine to automate wire binding for a quick and effective binding procedure.
Features:
* Versatile: By employing Wire-O® spools or cut lengths, it is possible to use all forms of Wire-O® binding techniques for a variety of
documents with flush cut or overhanging covers as well as extended index tabs.
* Effective: One hour can be used to handle 1,000 pages. Waste can be decreased by using an automated setup. There are three additional
plug-and-play reception kinds that can support a variety of workflow scenarios.

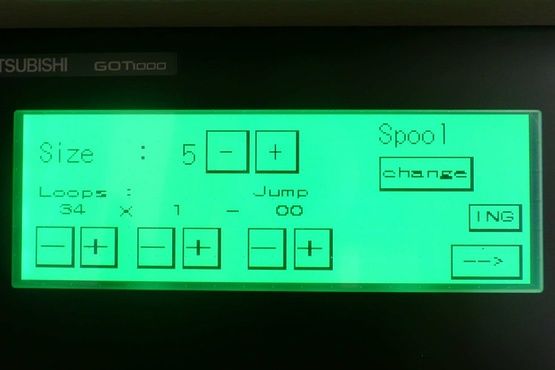

* User-friendly: No mechanical changes are required because all size and format sets are instantaneously customizable using a “touch

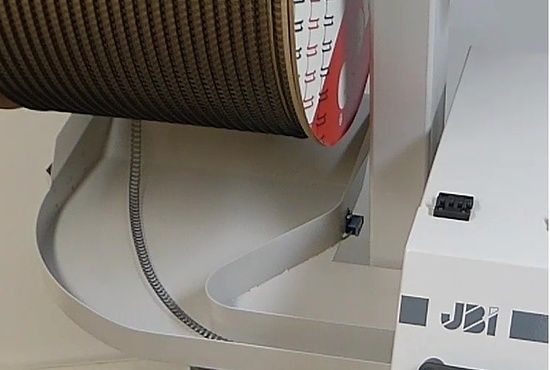

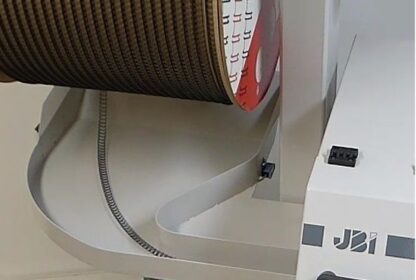

screen” digital keypad. The spool can be replaced, along with the size of the Wire-O, in 2 to 5 minutes.
* Thanks to adaptive design, a large tabletop workstation reduces operator fatigue. Because of its caster wheels, it can fit in any
location without the need for air.
* Safety: Components created for the safest operation.
Specifications:
• Max document size: 12″ B.E. (300mm) x 13″ (330mm)
• Min document size: 1.5″ B.E. (38mm) with spools or 2.8″ B.E (71mm) x 1.5″ (38mm) with cut lengths
• Document thickness: Up to 1-1/8″ (28 mm)
• Cycle speed: Up to 1 000 documents/hour
• Wire-O® sizes: 3:1 Pitch 1/4″ to 9/16″ & 2:1 Pitch 5/8″ to 1-1/4″
• Oversize covers: Possible
• Skip binding: 1 with 2 loops min. (Only in spool mode)

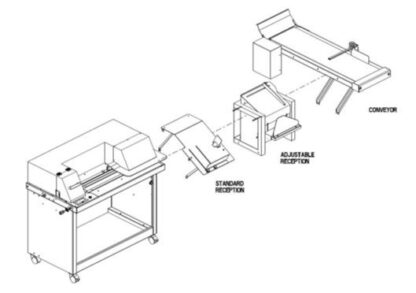

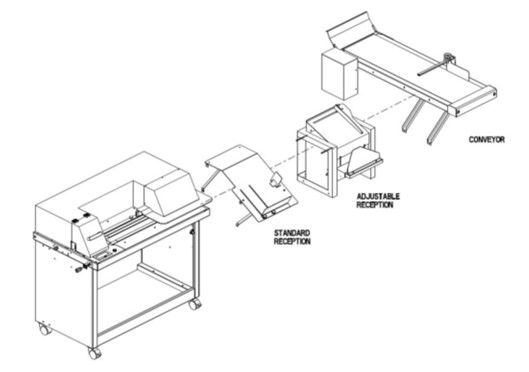

• Reception capacity with standard tray: up to 2″ (50mm)

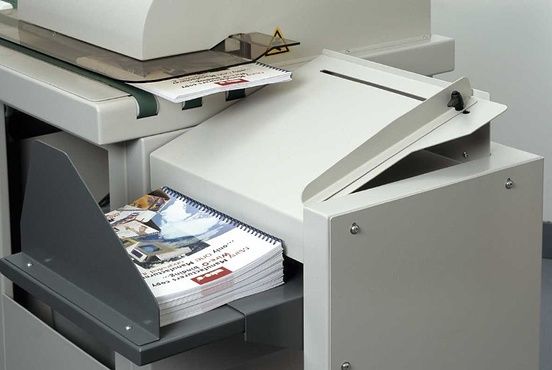

• Optional adjustable reception bin: up to 7″ (180mm)

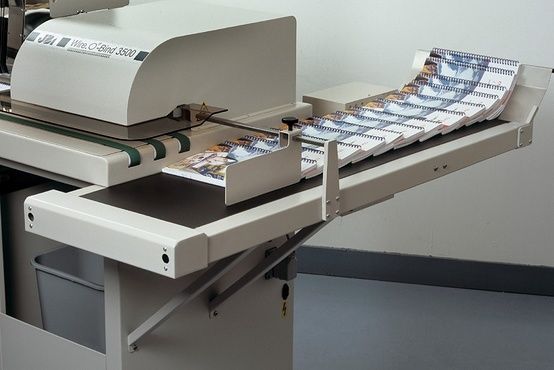

• Optional conveyor reception: up to 50 books 3/8″ (10 mm) thick
• Spool change over In less than 5 minutes
• Control panel: Touch screen
• Format set up: Fully automatic
• Format set up time: less than 2 minutes
• Power: 110/120 V (60Hz) 1ph
• Machine dimensions with standard reception ( L x W x H): 8’x 2′ 10″’x 5′ (2250 x 850 x 1540 mm)
• Net weight: 550 lbs. (250 kg)
