Description

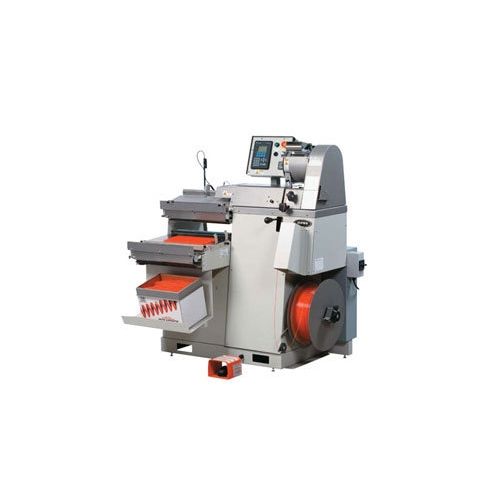

Making plastic coil on demand is easy with the JBI CF30 Plastic Coil Forming Machine. Designed with convenience in mind, the system provides a practical way to produce only the amount of plastic coil you need for a specific job or order, saving you time, reducing your packaging costs, and increasing your profit margin at the same time. The machine can create coil with a 26 different diameters, from 6mm and up to 30mm, with the option to expand the range up to 50mm. It self-adjusts the speed ratio to optimize it for each diameter and has a convenient electronic temperature control for extra precision. Other features include interchangeable mandrel parts, digital counter for box and total order requirements, DC variable speed motors, a unique roller system, automatic oiling, and an innovative hot start feature.
Features:
* Coil forming machine for in-house spiral coil manufacturing
* Provides an easy solution to produce only the quantities you need
* A perfect choice to increase profit margin
* Compact design with a quiet operation
* Hot start feature
* 7 filament profiles to create 26 coil diameters
* Coil diameters range from 6mm to 30mm, optionally up to 50mm
* Pitch options range from 4:1 to 5:1 and 2.5:1
* Custom pitch options also available
* Coil lengths from 6.5″ to 43″
* PLC control system with a user-friendly panel
* Pre-programmed speed modes optimized for each job
* Electronic temperature control for more precision
* Digital counter per box and total orders
* Built-in mandrel storage
* Positive hexagon mandrel drive

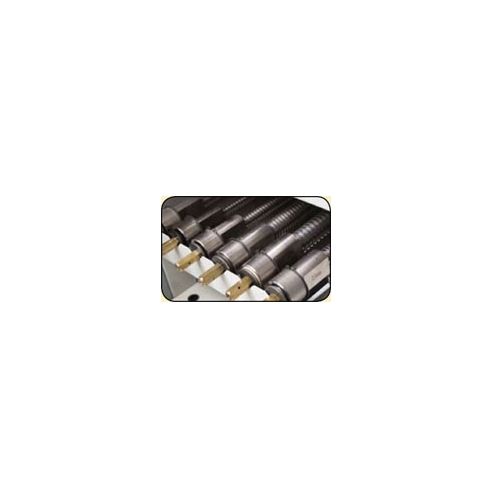

* Interchangeable mandrel parts

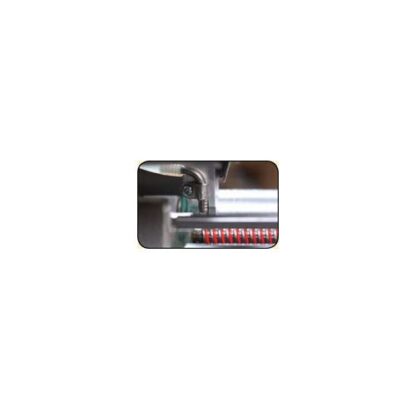

* Unique roller system
* Unique spool brake design
* Heater drum with safety shields
* DC variable speed motors

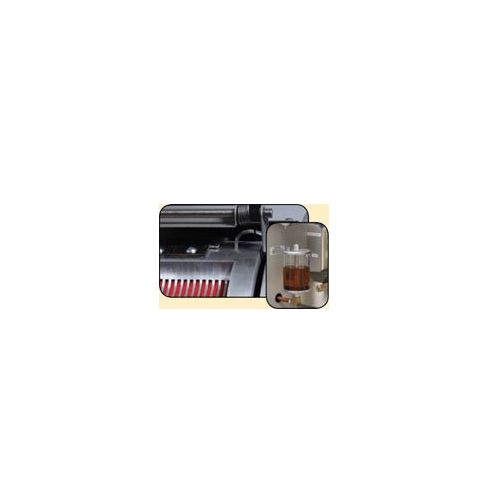

* Automatic oiling system
Specifications:
• Sheet Size: 5” to 17” Binding Edge
• Books / Hour: 750+
• Book Thickness: 6mm to 30mm
• Air Required: Yes
• Power Requirements: 220 V / 1-phase / 60Hz / 20A
• Compatible with: Forming Mandrels
