Description

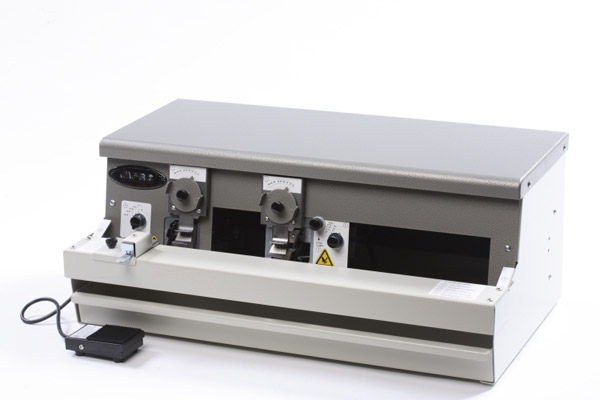

The TCB – Total Cut & Bend with its patented design can cut and crimp the full range of plastic spiral diameters from 6 mm up to 50 mm – with the same crimping heads!                  (U.S. Patents # 7,731,468 & # 7,828,503)
- No tools required for size changeovers.
- Accommodates coil diameters from 6 mm to 50 mm without the need to change crimp heads.
- Min/Max binding edge 5.5″ – 17″ (14 cm – 43 cm)
- Easy to follow decals guide the operator through setup.
- Removable off-cut tray makes accumulation and disposal of off-cuts neat and tidy.
- Available with electric or pneumatic actuation.
- Foot pedal operated.
Benefits

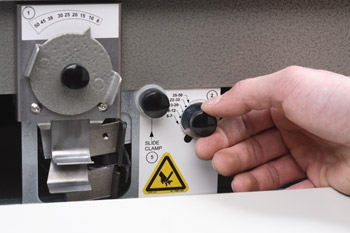

- Simple dial adjustments enable you to setup, cut and crimp coil diameters from 6 mm to 50 mm with the same crimping heads!

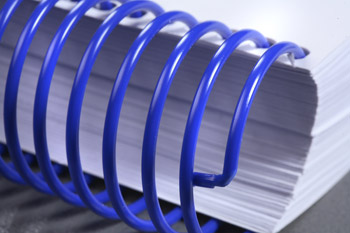

- Longer crimp achieved as the coil diameter increases reducing the risk of coil unwinding from the larger punch holes.
- Large top surface doubles as useable workspace.
- Easily integrated with most coil insertion equipment.
Product Sell Sheet:
Product video:
Learn More / Request Quote
To learn more about this item (Gateway/PLASTIKOIL PBS 2600 TCB Total Cut & Bend Dual Sided Coil Crimping Unit) and/or to request a quote, please complete and submit the form below.
