RENZ
DTP 340 A
Fast. Flexible. Semi-automatic. Unique in this machine class!
This semi-automatic tabletop punching system is fast, reliable, and powerful. A versatile punching solution for preparing paper for wire comb, plastic comb, coil or calendar binding.

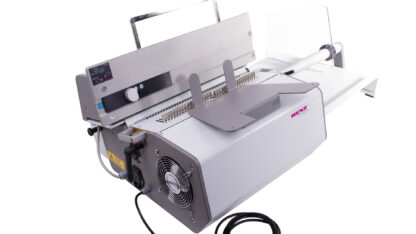

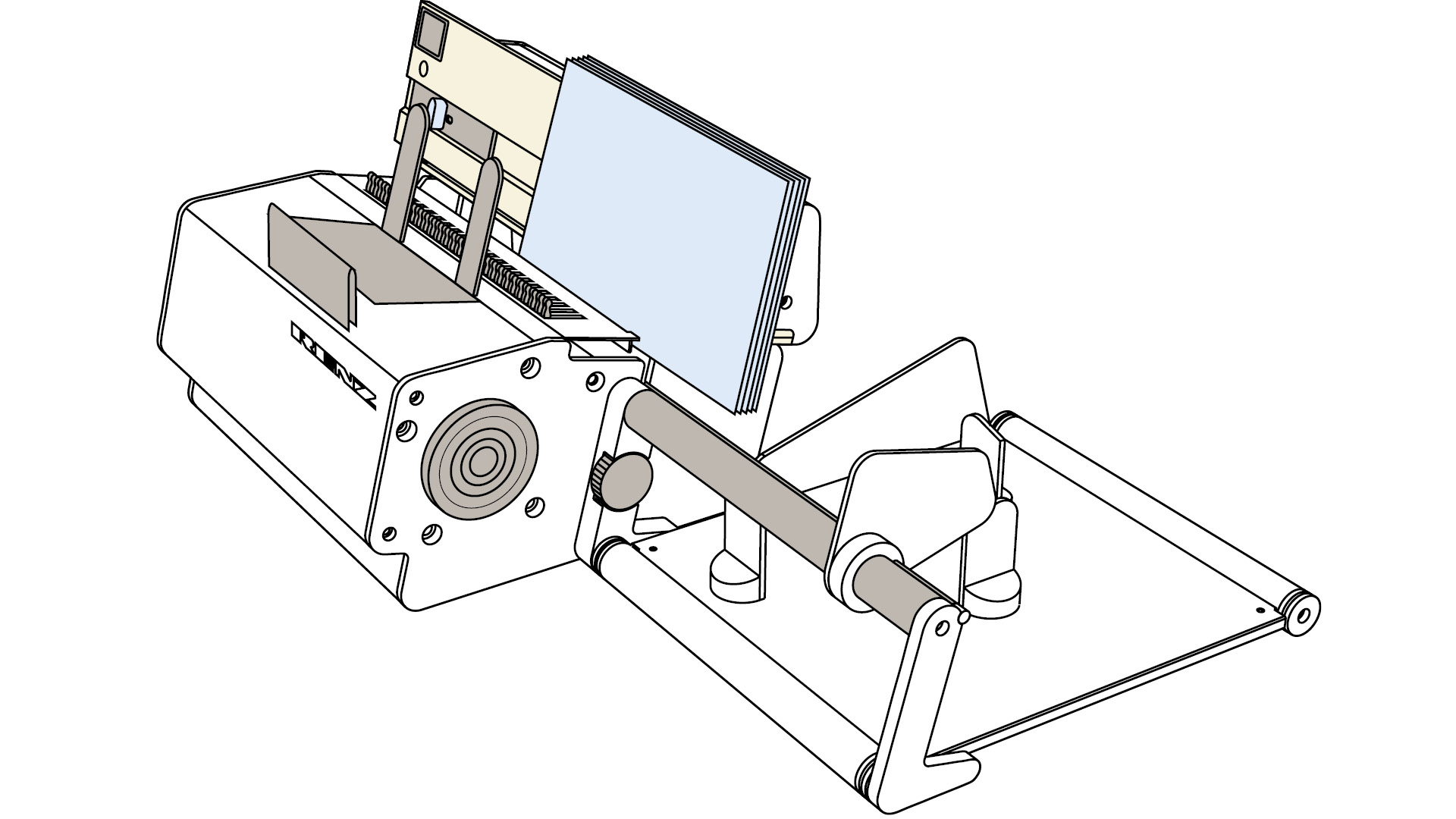

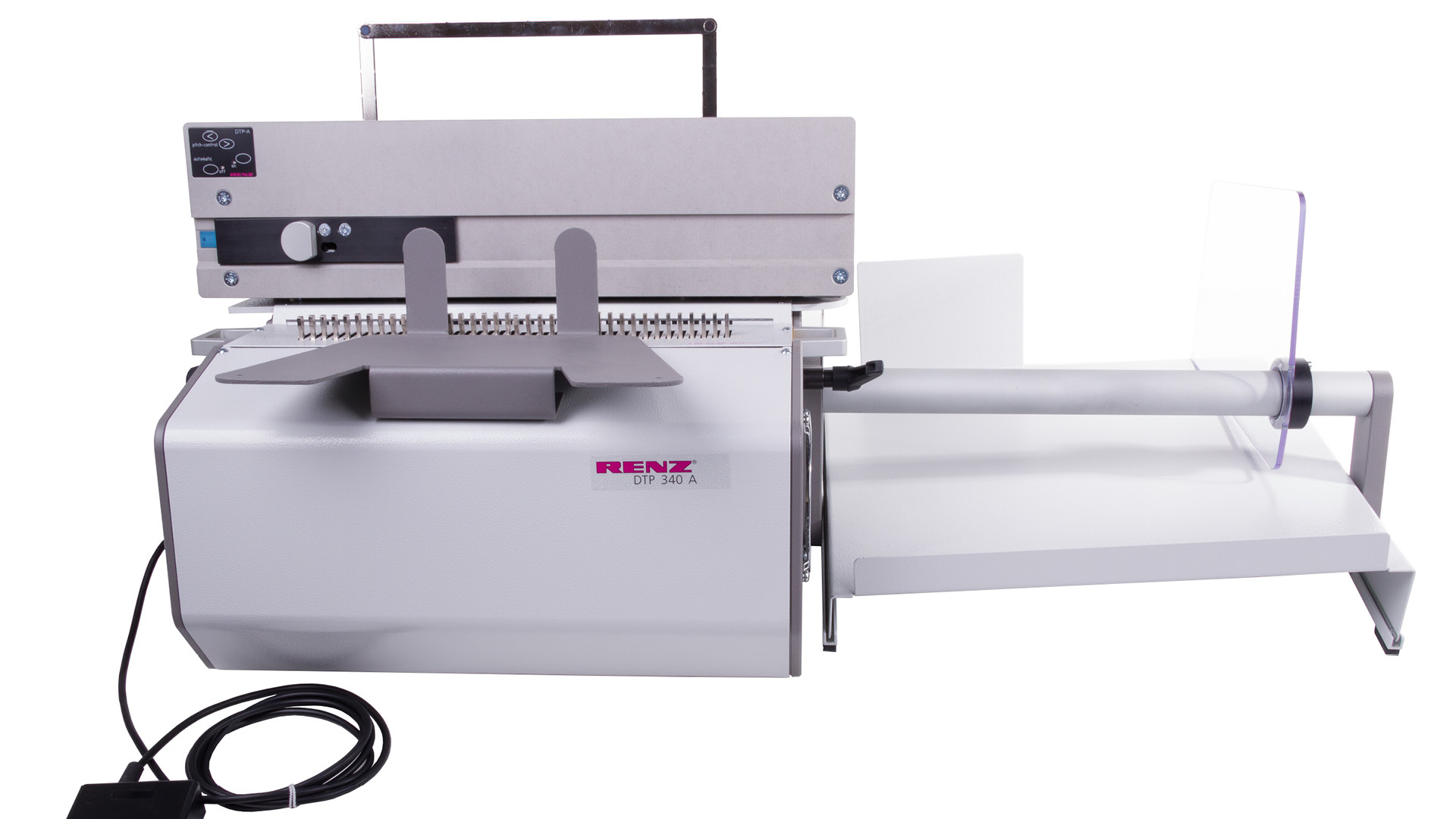

The RENZ DTP 340 A is a powerful semi-automatic tabletop punching machine designed for professional print finishing. It precisely punches paper in preparation for wire comb, plastic comb, coil or calendar binding – ideal for copy shops, commercial printers and bookbinders. With a wide range of optional punching dies, a variety of hole patterns and pitches can be achieved. The proven QSA technology enables individual punch pins to be deactivated directly on the tool – allowing fast format changes and custom sizes without removing the die. The machine supports a punching width of up to 340 mm. Ease of use is key: An electronic control panel allows quick paper size setup. Punching is triggered automatically via an optical sensor, with the option to switch to manual mode if needed. Once punched, sheets are automatically transported into the side-mounted stacking tray – ready for immediate binding. With a punching speed of up to 36,000 sheets per hour, the DTP 340 A is one of the fastest machines in its class – delivering top performance, flexibility and reliable results in everyday production.
Features
- Punching system for preparing wire comb, plastic comb, coil and calendar binding
- High output: up to 36,000 punched sheets per hour

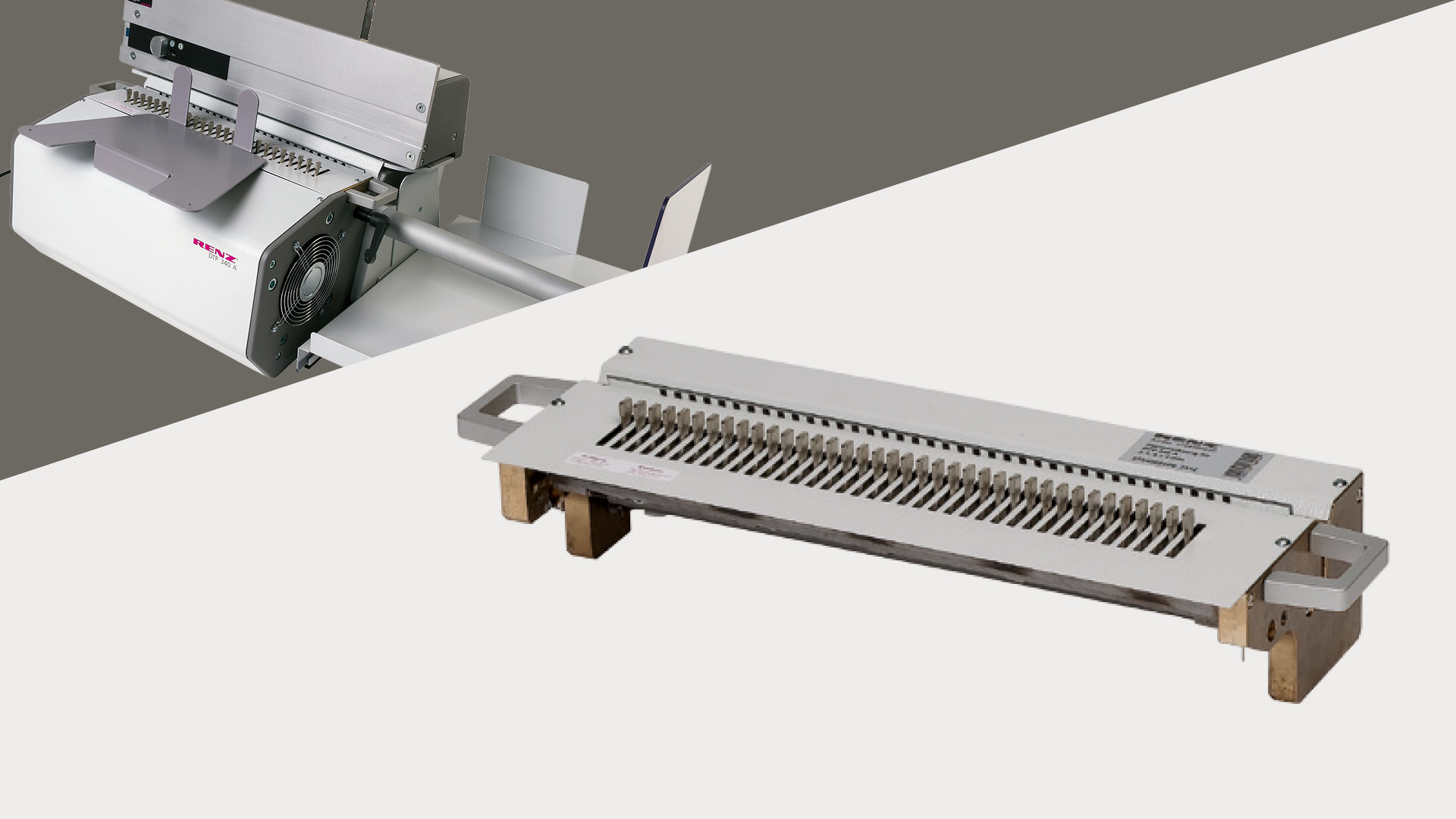

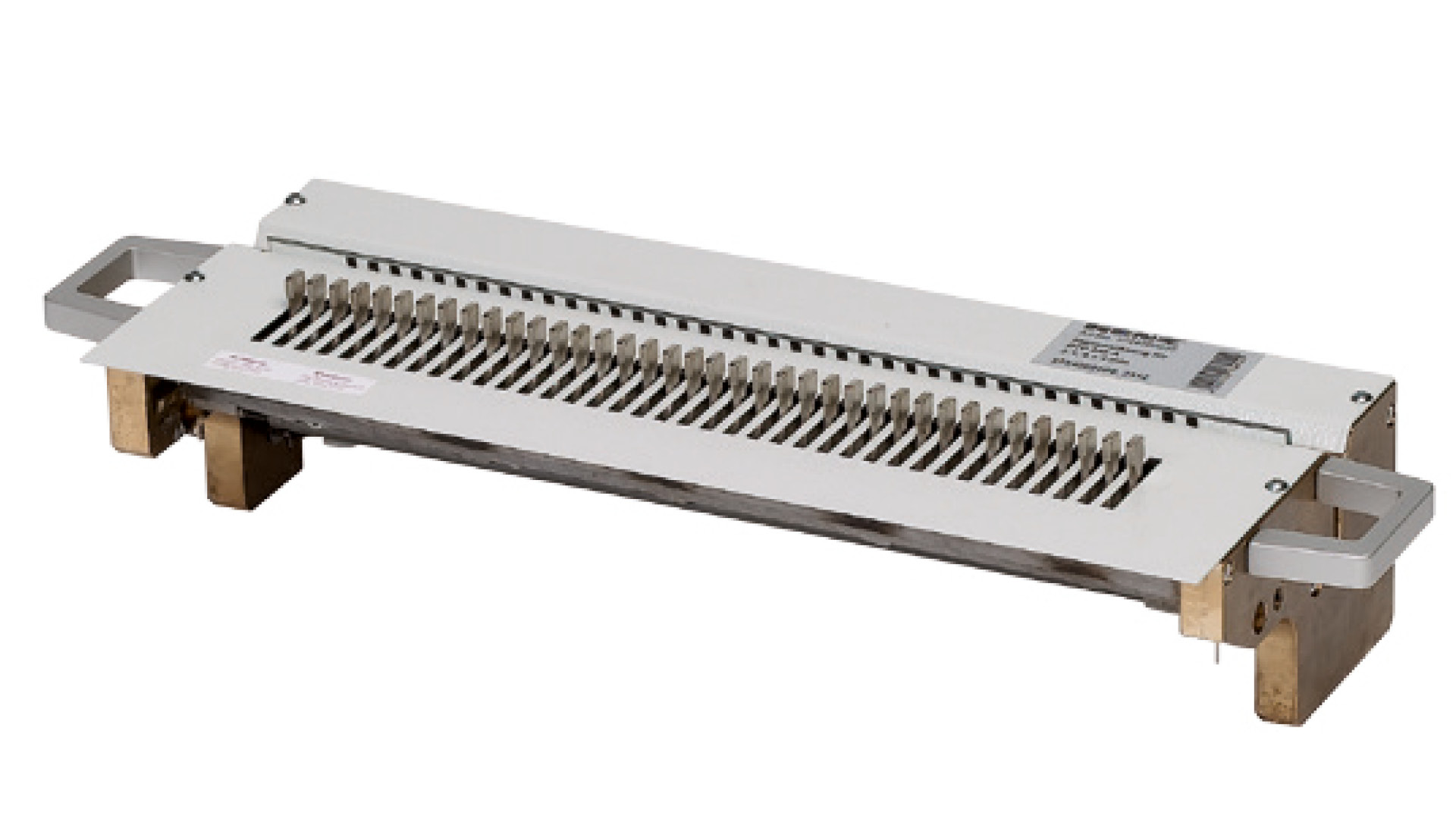

- Wide selection of optional punching dies for various hole patterns and pitches

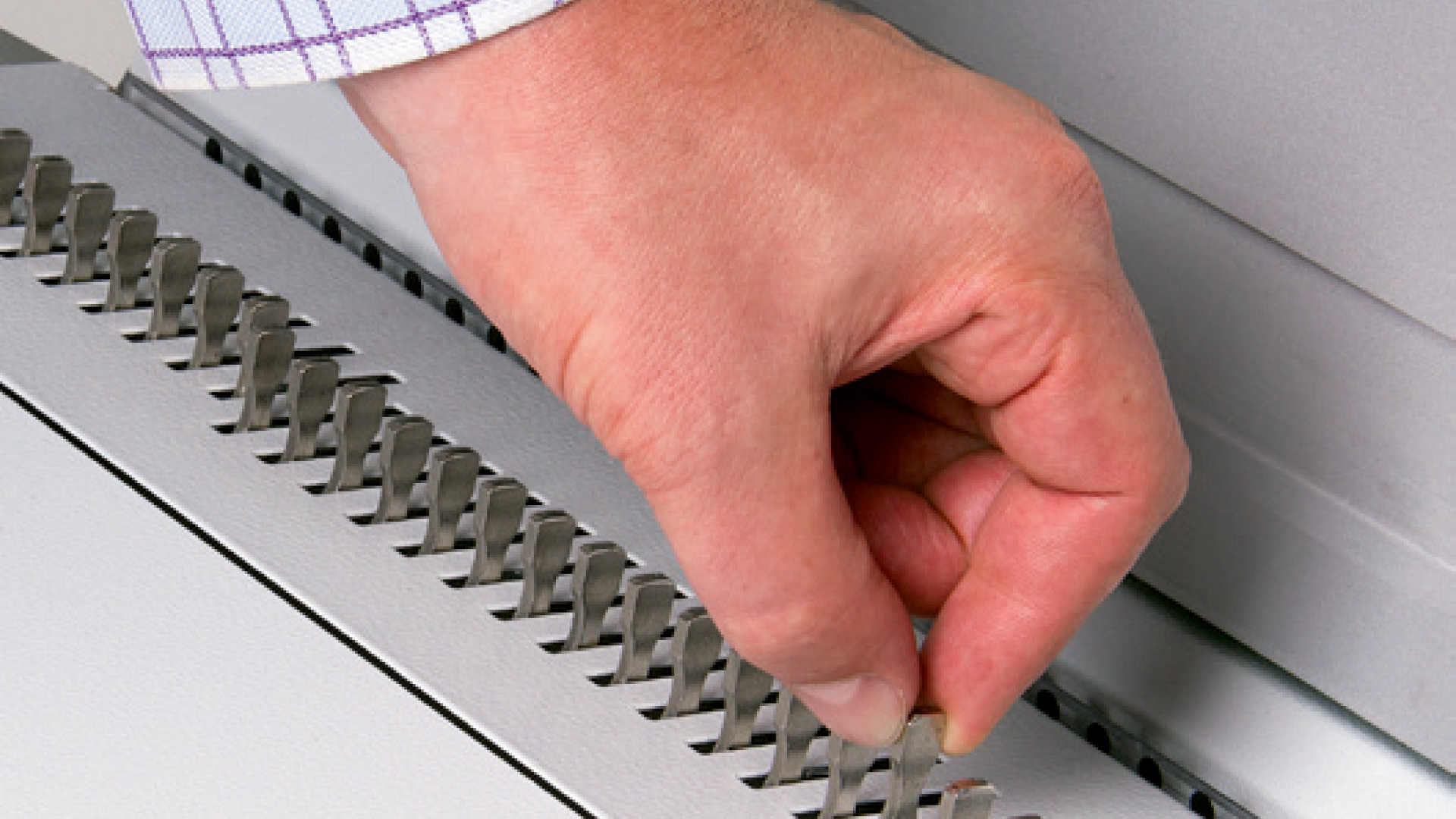

- QSA technology for quick deactivation of individual punch pins without removing the die
- Maximum punching width: 340 mm

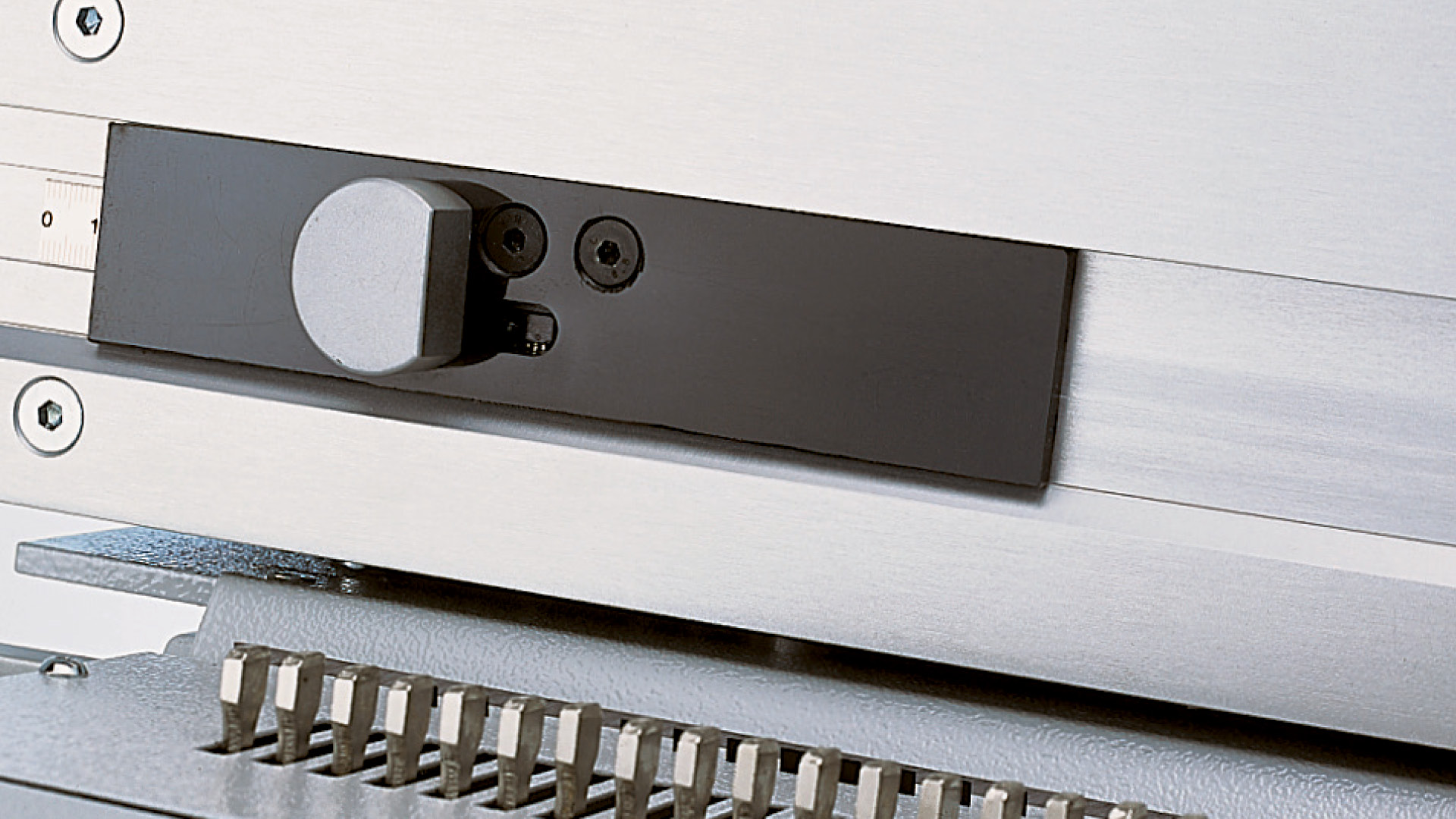

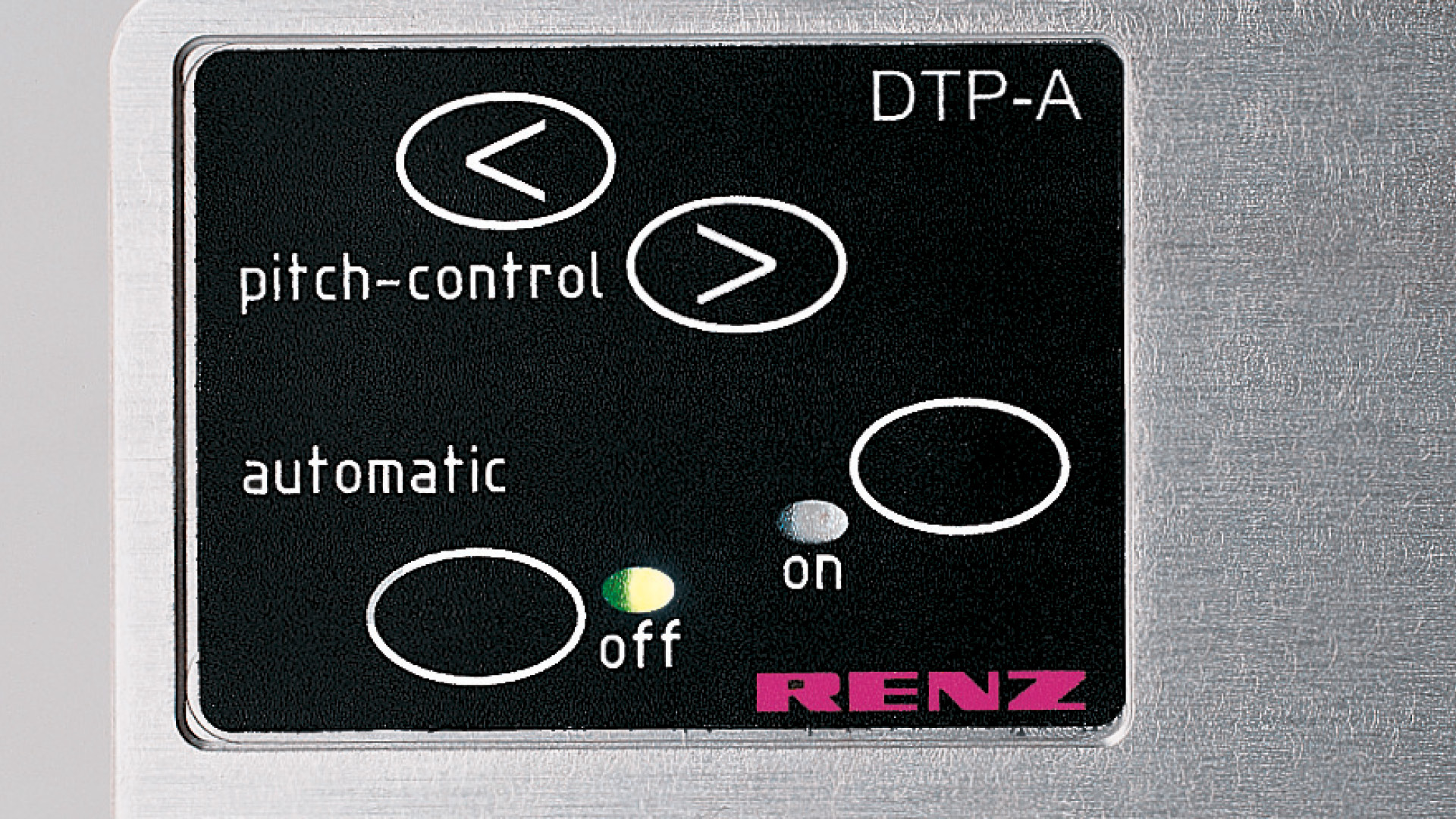

- Electronic control panel for size selection

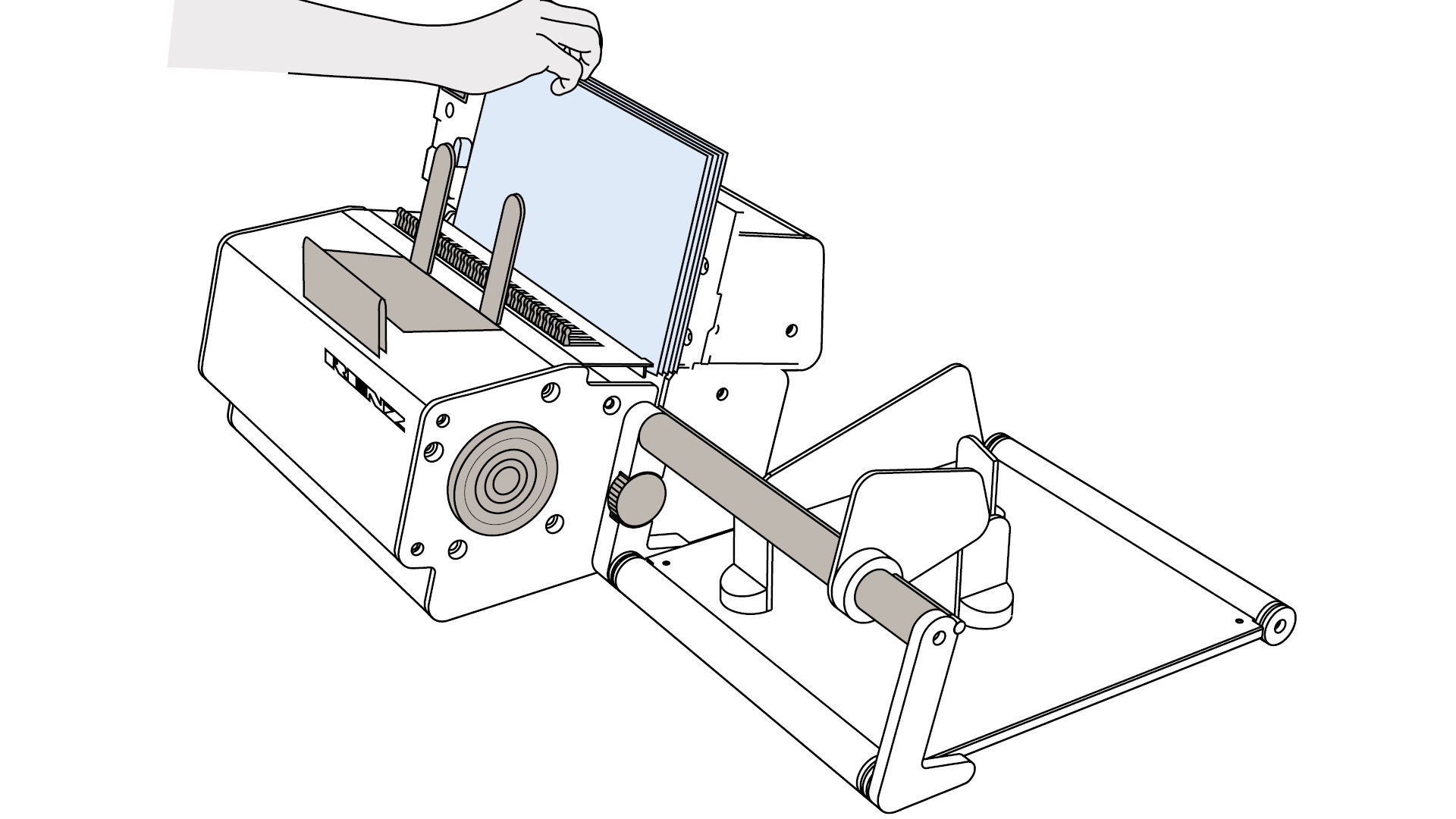

- Automatic or manual punching via optical sensor

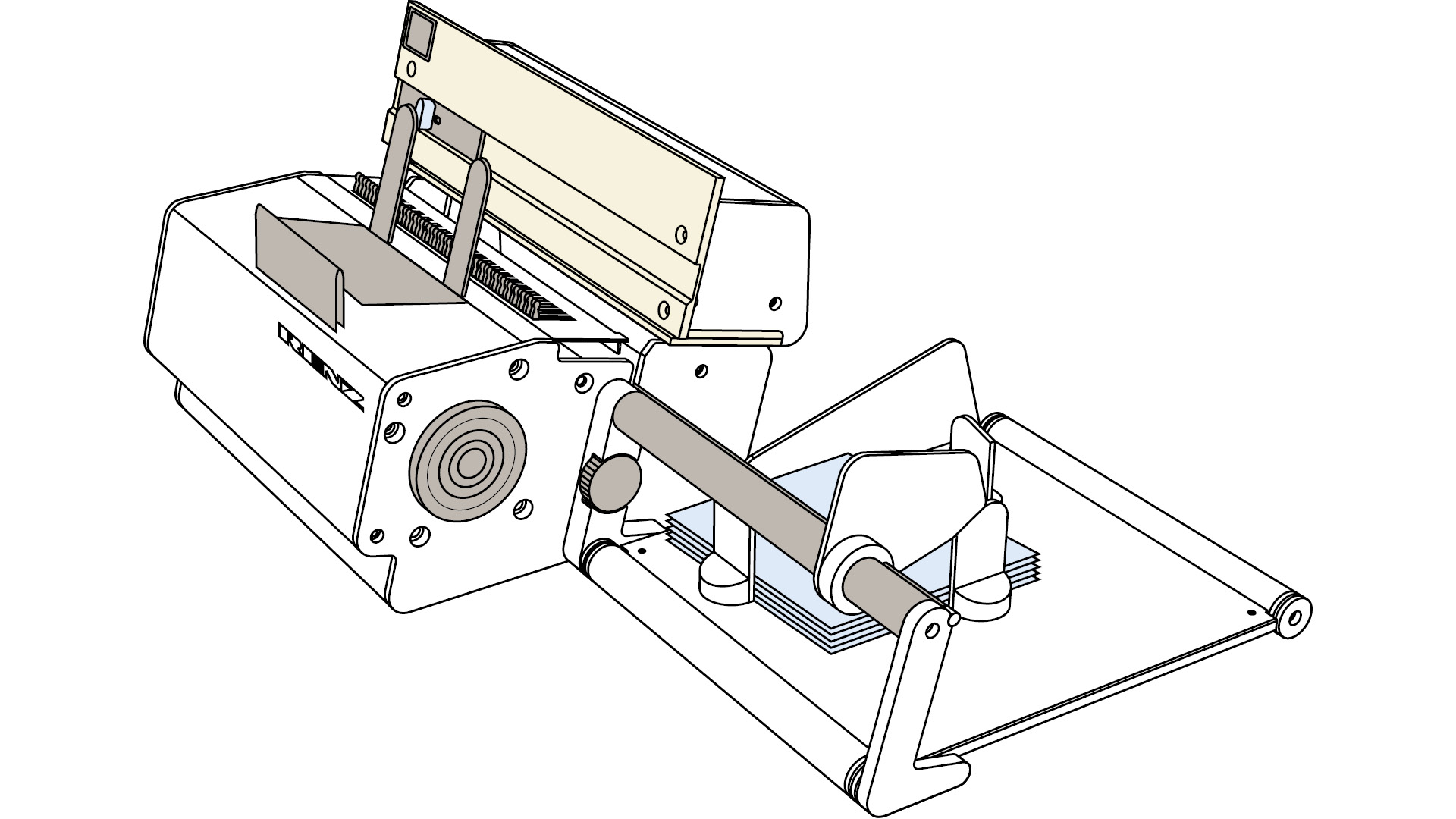

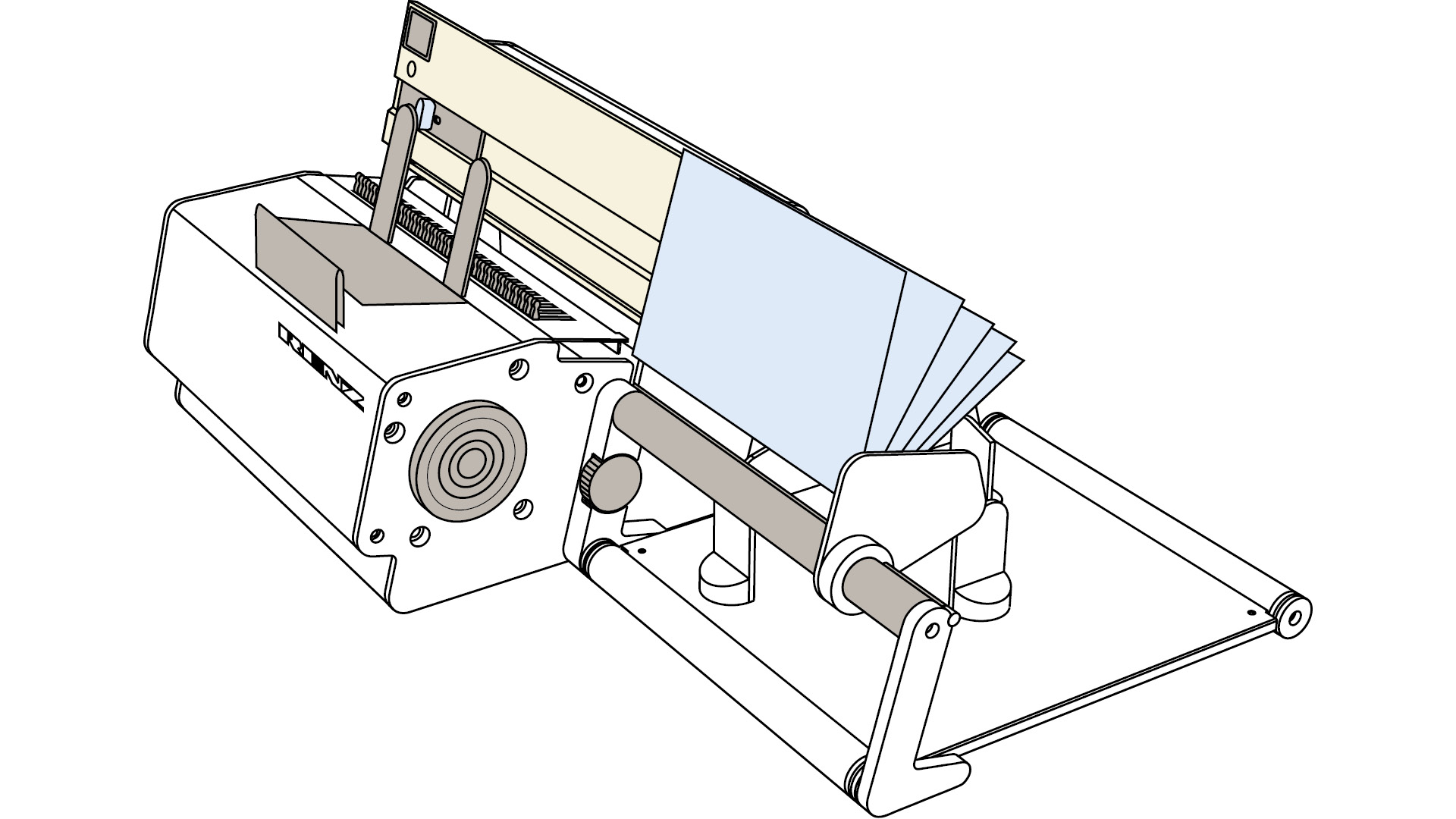

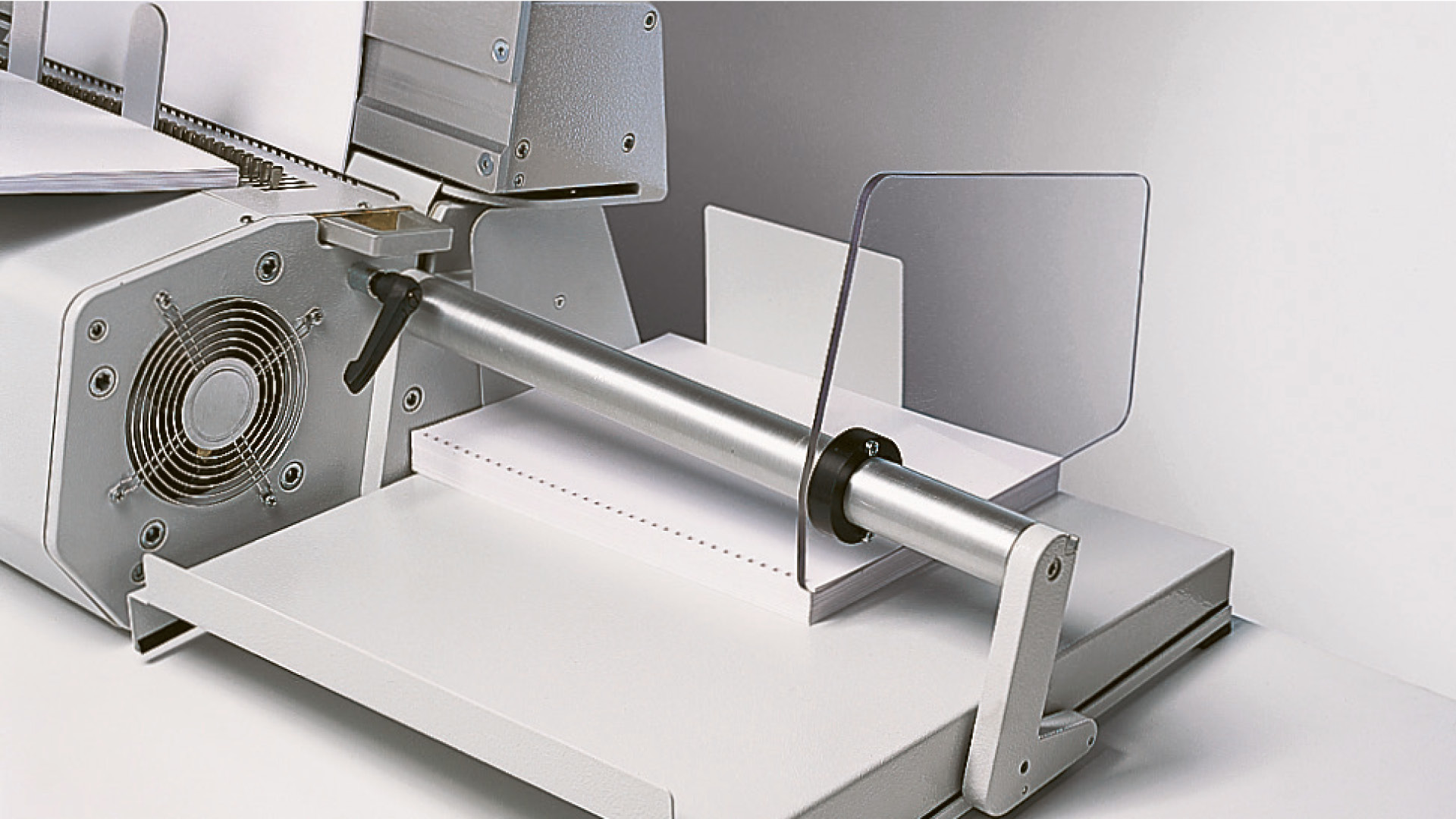

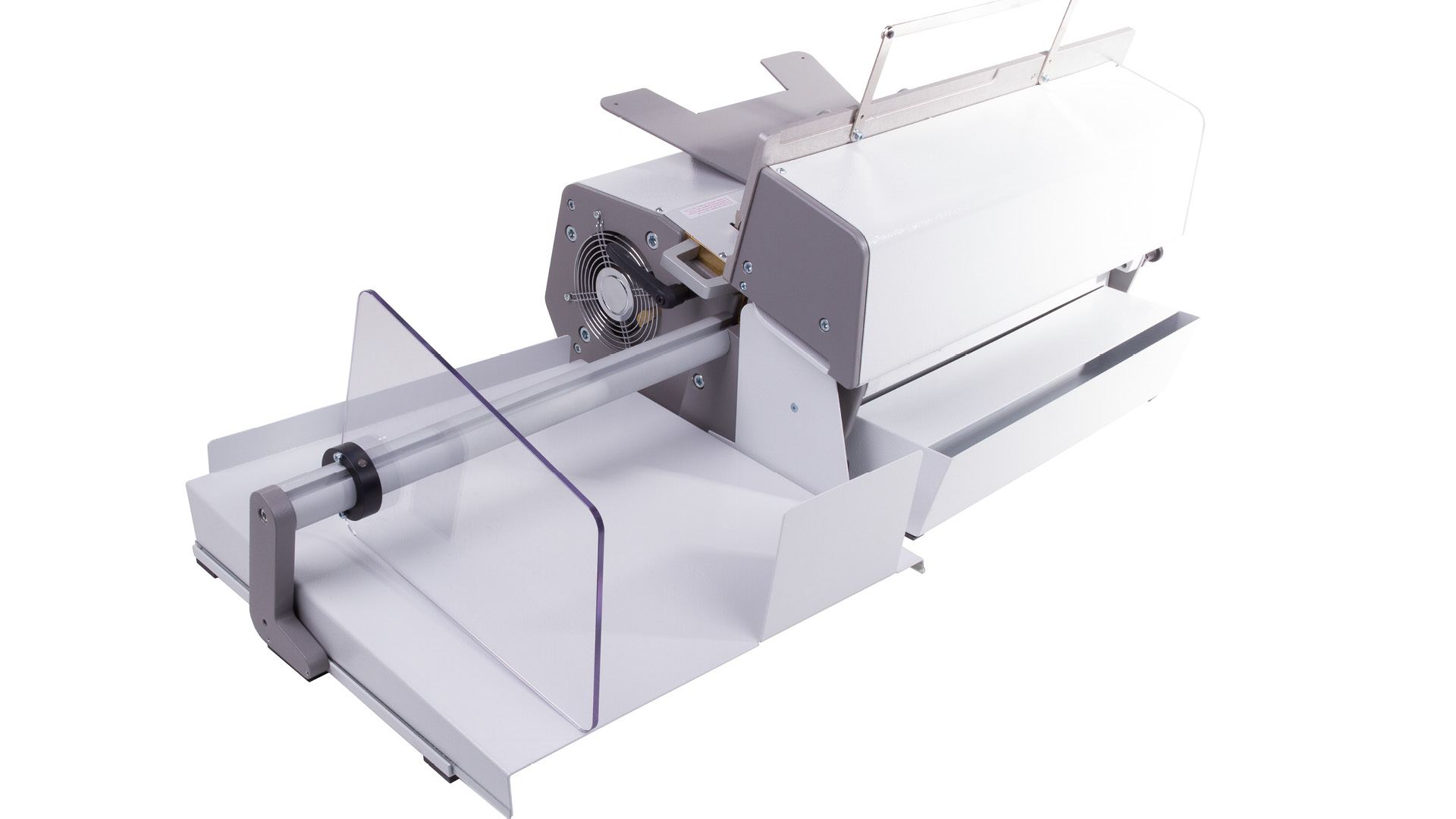

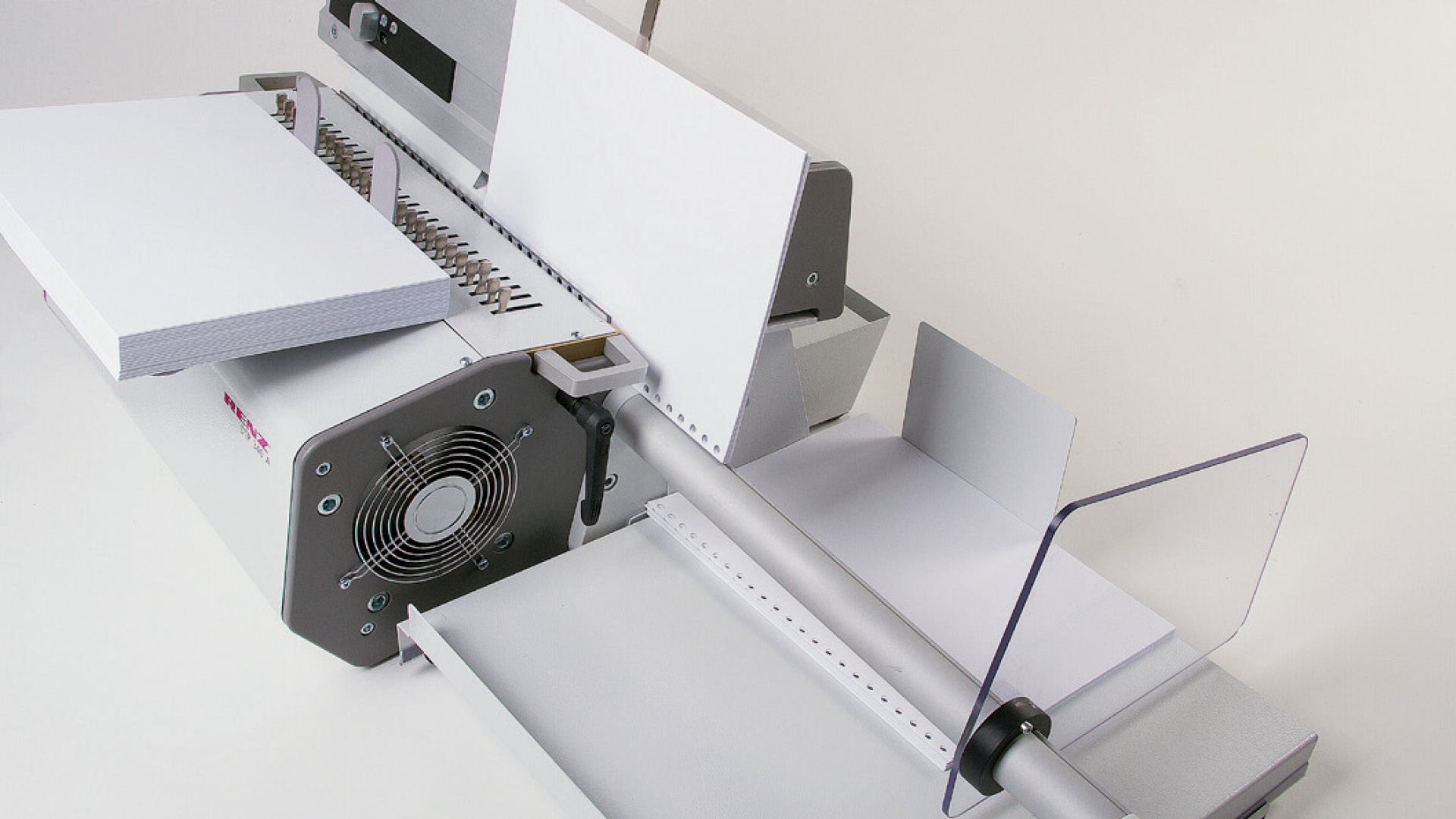

- Automatic paper transport into side stacking tray

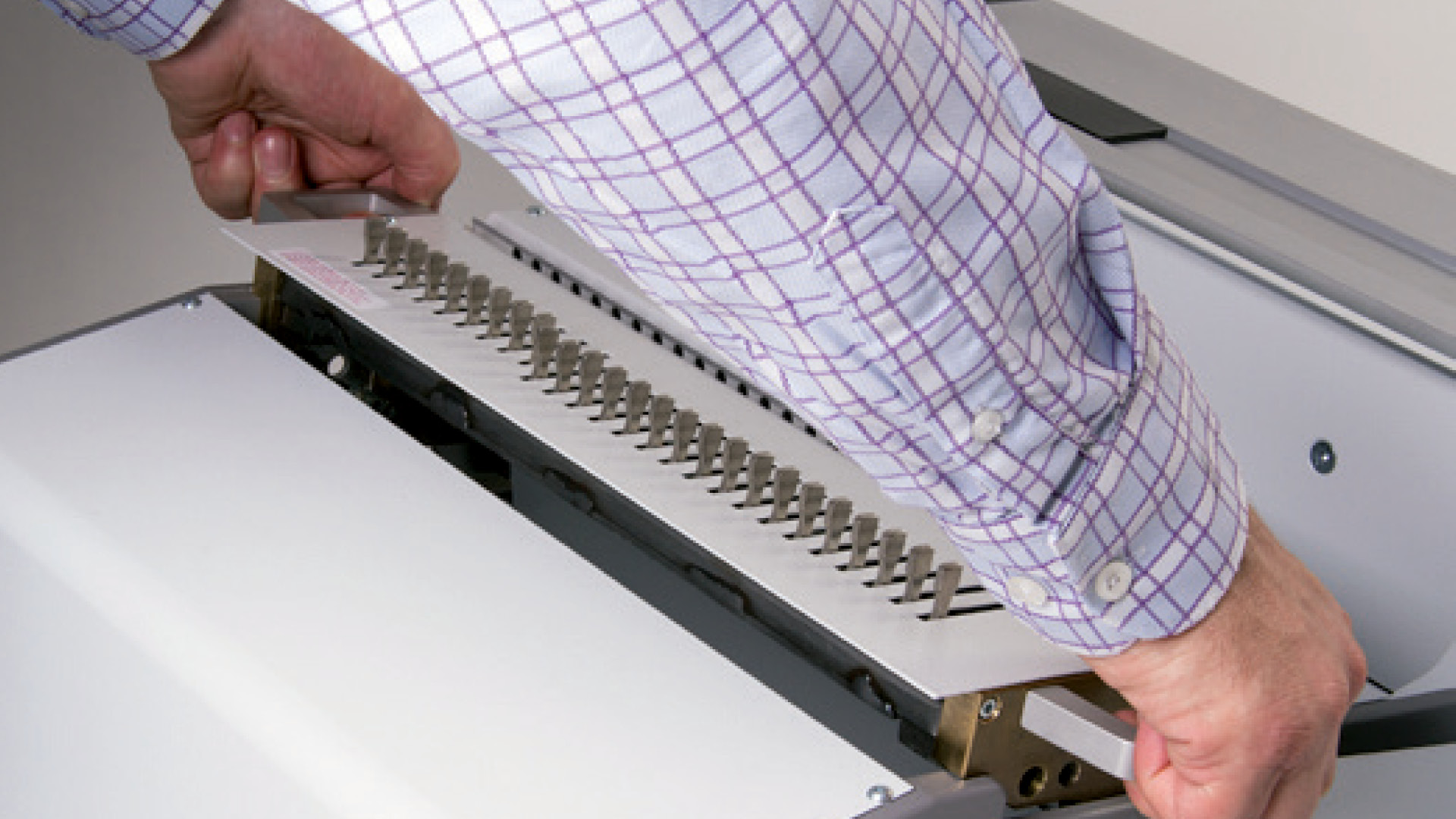

- Quick die change with vertical locking system
Properties
| Product type: | Electric punching machine |
|---|---|
| Field of application: | Wire comb binding, Calendar binding, Coil binding (PVC), Spiral binding (wire), Plastic comb binding |
| Function: | electrical punching |
| Operation: | Sensor, Foot switch |
| Setup / Settings: | elektrisches Bedienfeld |
| Format change: | 0,2 min |
| Changing punching die: | 2 min |
| Working width: | 340 mm |
| Min. format (w x l): | 10 x 110 mm |
| Max. format (w x l): | 340 x 800 mm |
| Pitch: | 3:1, 2:1, US, 0.2475″, 0.23622″, 4:1, 2.5:1 |
| Optional punching tools available: | Punching dies available in many pitches, hole patterns and designs: wire comb binding, calendar binding, plastic binding, spiral binding |
| Punching die type: | Standard punching die |
| Selectable punch pins (QSA): | yes (depending on die) |

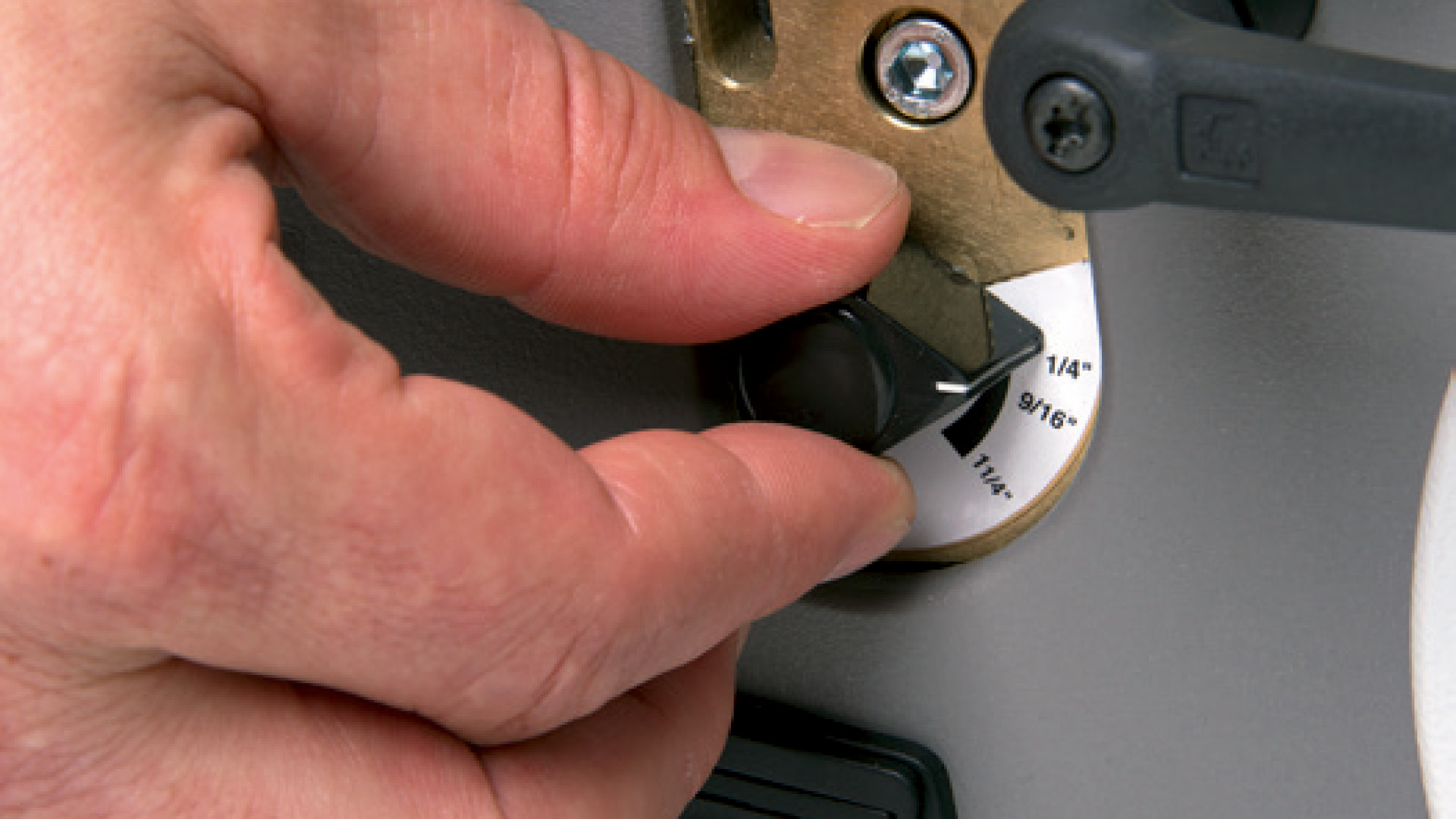

| Adjusting margin depth: | variable (dending on die) |
| Multi-part punching dies: | no |
| Bespoke dies: | no |
| Mechanical cycles /h: | 1200 |
| Max. punching thickness: | 3,5 mm |
| Max. punched sheets p/h: | 36000 |
| Power requirement: | 230V, 1PH/N/PE, 50Hz, 300W |
| Power requirement (alternativ): | 115V, 1PH/N/PE, 60Hz, 300W |
