Renz – ECL 360 // Electric wire comb closing machine for 2:1 and 3:1 pitch. 360 mm working width.

Vendor: Renz

Description

RENZ

ECL 360

Electric. Simple. Efficient. Bind effortlessly up to 360 mm.

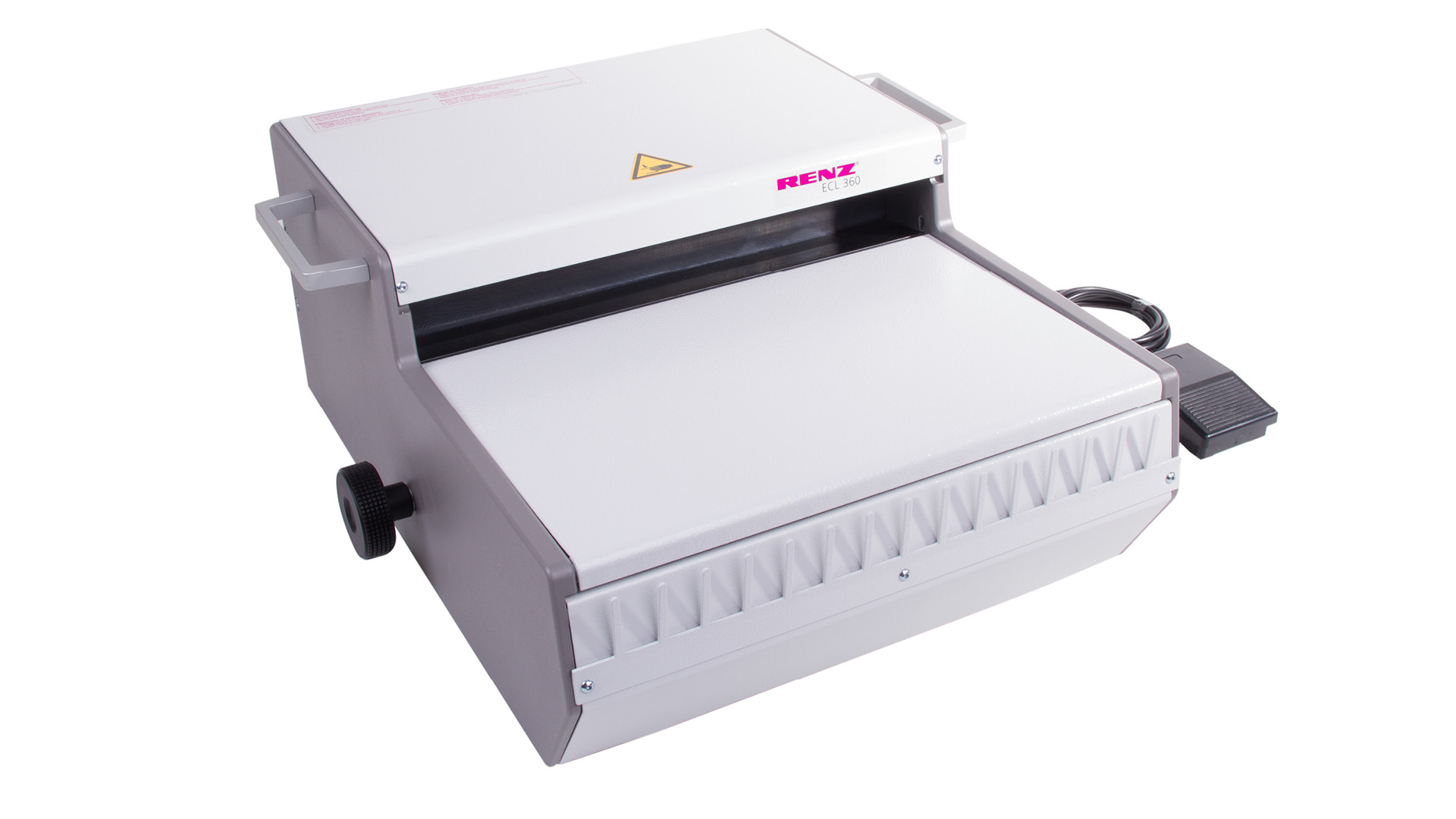

The RENZ ECL 360 is the perfect electric solution for precise, round-closed wire combs. Fast size adjustment, high safety and professional results.

The electric RENZ ECL 360 closes wire combs precisely and evenly – ideal for documents up to 360 mm in width. It is specifically designed for binding wire comb bound products – ensuring perfectly round-closed results. Ideal for finishing blocks, brochures, training materials, notebooks or calendars. With its robust construction and compact design, the ECL 360 is the ideal solution for medium to high-volume production in copy shops, digital print environments and industrial binding lines. Wire size can be adjusted in seconds via the integrated dial. The entire closing process is operated comfortably via foot pedal, and a built-in safety system protects the operator. An integrated wire hanging device and precise parallel closing adjustment guarantee clean, professional results with minimal effort.


Features

  • For binding wire combs up to 1 ½″ (38 mm)
  • Working width: up to 360 mm
  • Binding capacity: up to 340 sheets (80 gsm)
  • Perfect round closure through parallel adjustment

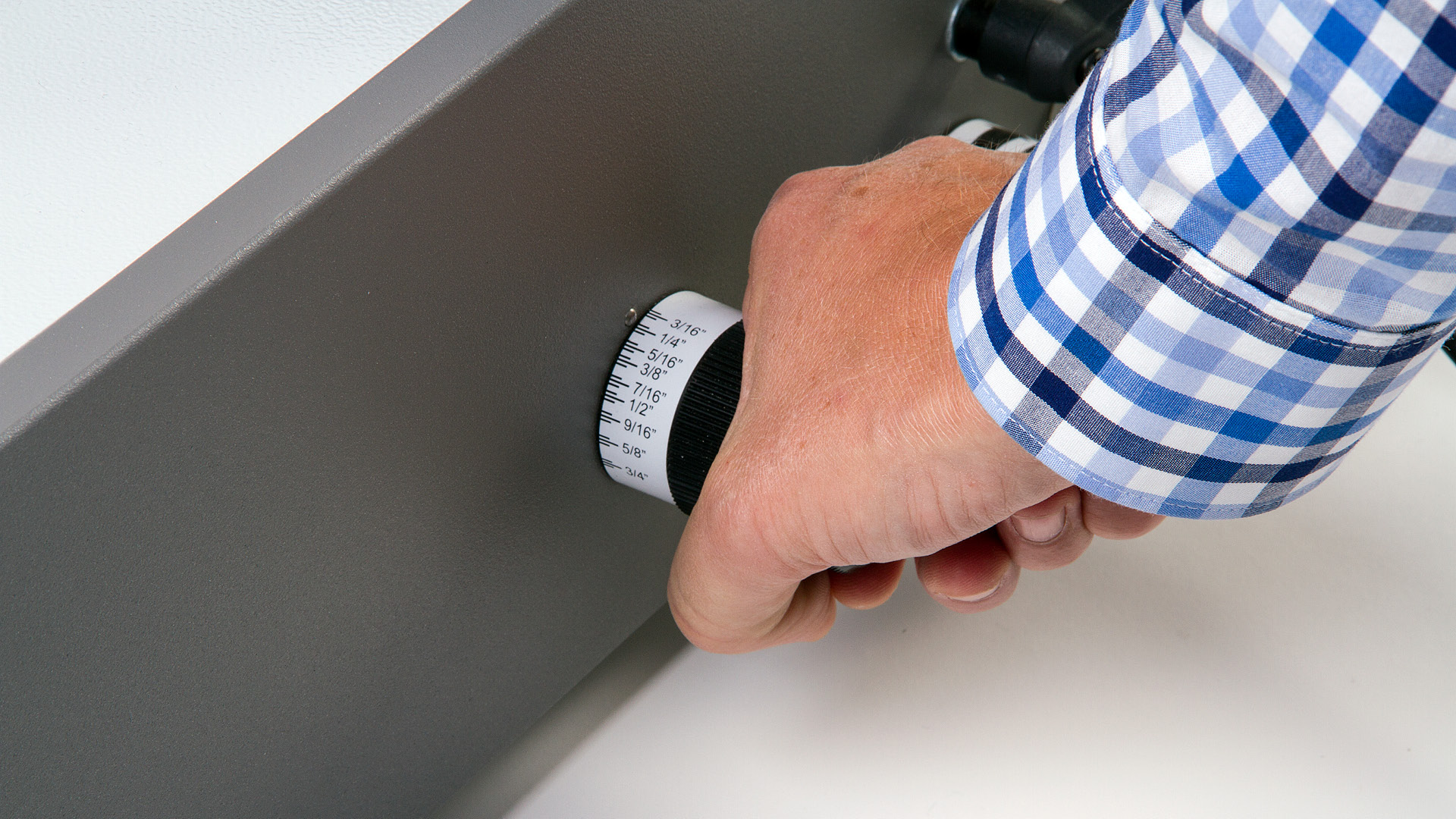

  • Quick wire size adjustment via integrated dial

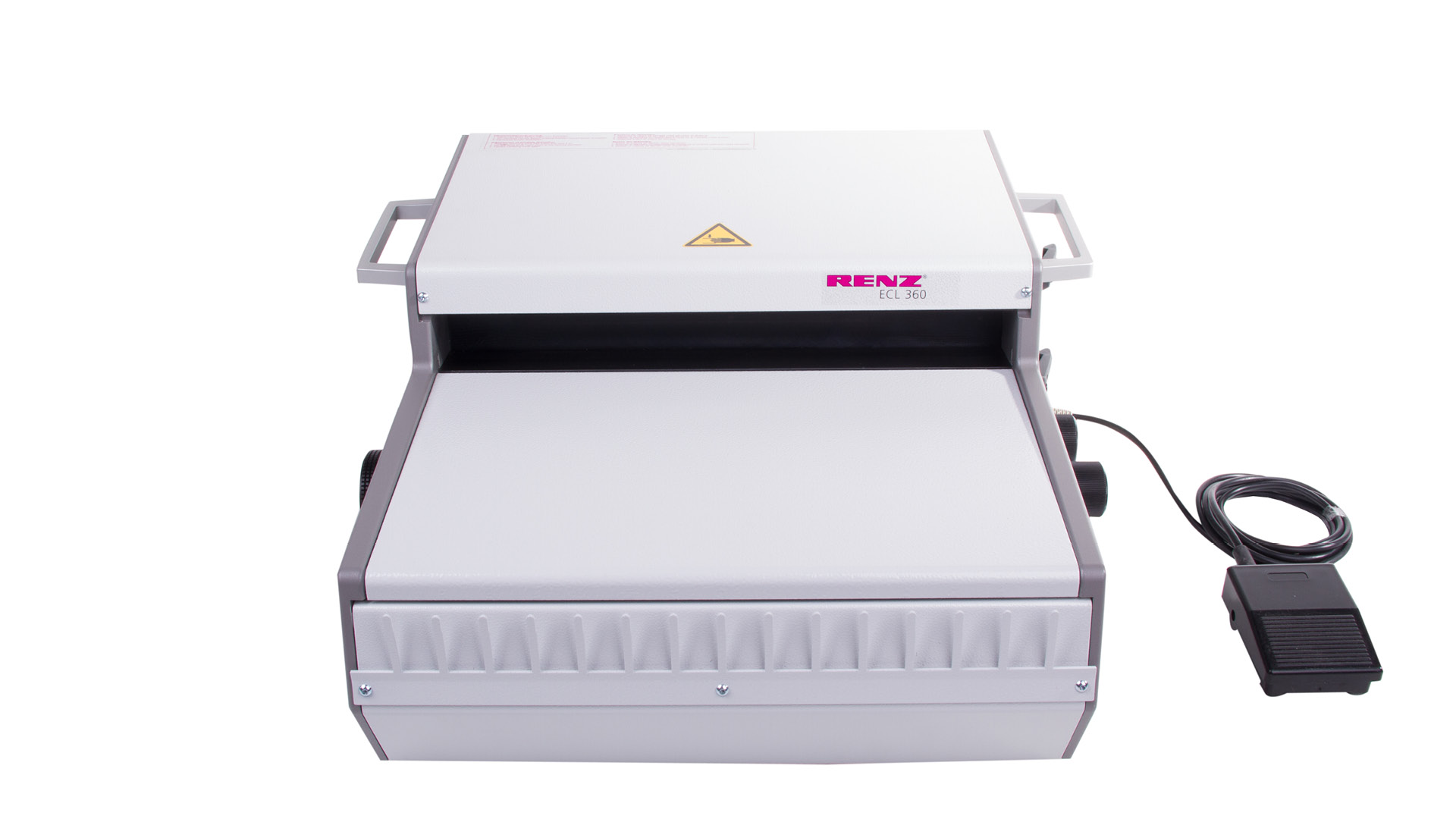

  • Convenient foot pedal operation

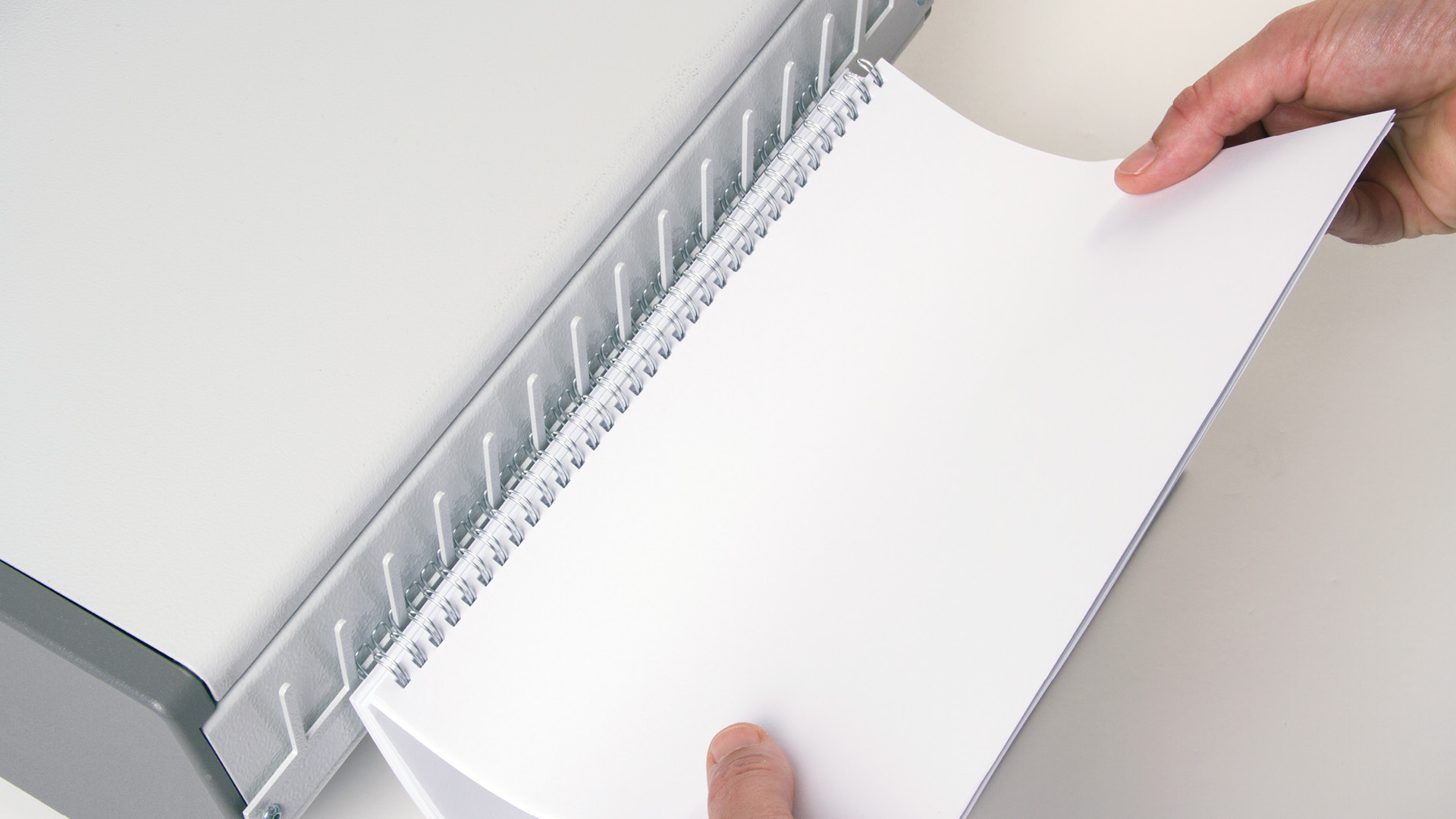

  • Built-in wire hanging device

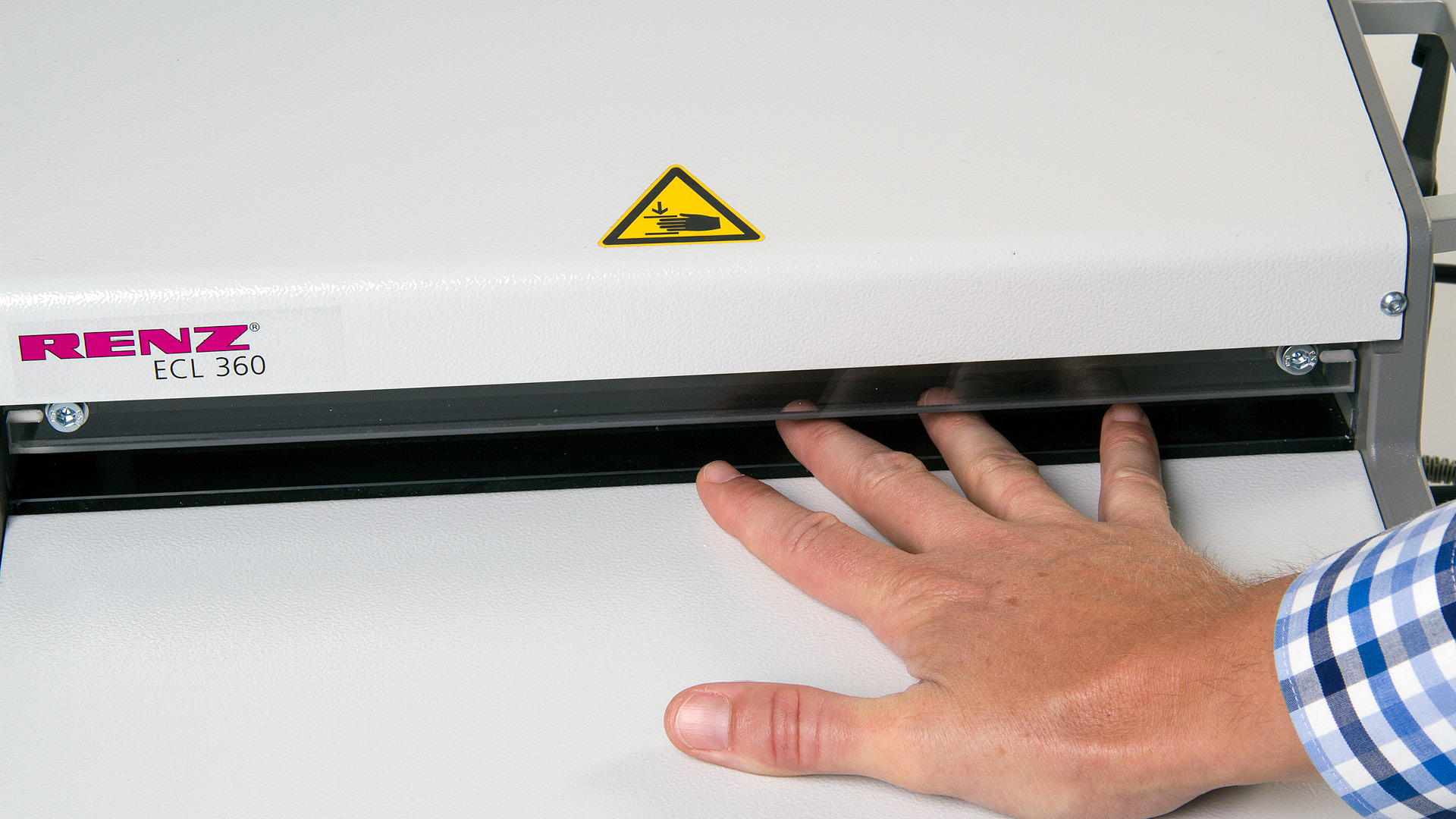

  • Automatic safety system
  • Compact, durable design




Properties

Product type: Electric binding machine
Field of application: Wire comb binding, Calendar binding
Function: electrical binding
Operation: Foot switch
Setup / Settings: manuell
Diameter change: 0,3 min
Working width: 360 mm
Min. format (w x l): 10 x 65 mm
Max. format (w x l): 360 x 600 mm
Pitch: 3:1, 2:1
Workable diameters: Ø 1/4″ – 1 1/2″ (6,9 – 38,0 mm)
Max. binding thickness (mm): 34,0 mm
Max. binding thickness (sheets, 70-80gsm): 340
Max. bound items /h: 400
Feeding calendar hangers (optional): Manual single feeding
Power requirement: 230V, 1PH/N/PE, 50Hz, 250W
Power requirement (alternativ): 115V, 1PH/N/PE, 60Hz, 250W
Product size (w x h x d): 520 x 230 x 530 mm
Product weight: 38,0 kg
