RENZ
ECL 500
Electric. Simple. Efficient. Bind effortlessly up to 500 mm.
The RENZ ECL 500 is the perfect electric solution for precise, round-closed wire combs. Fast size adjustment, high safety and professional results.

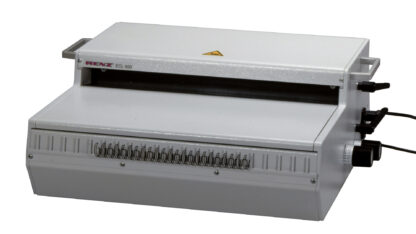

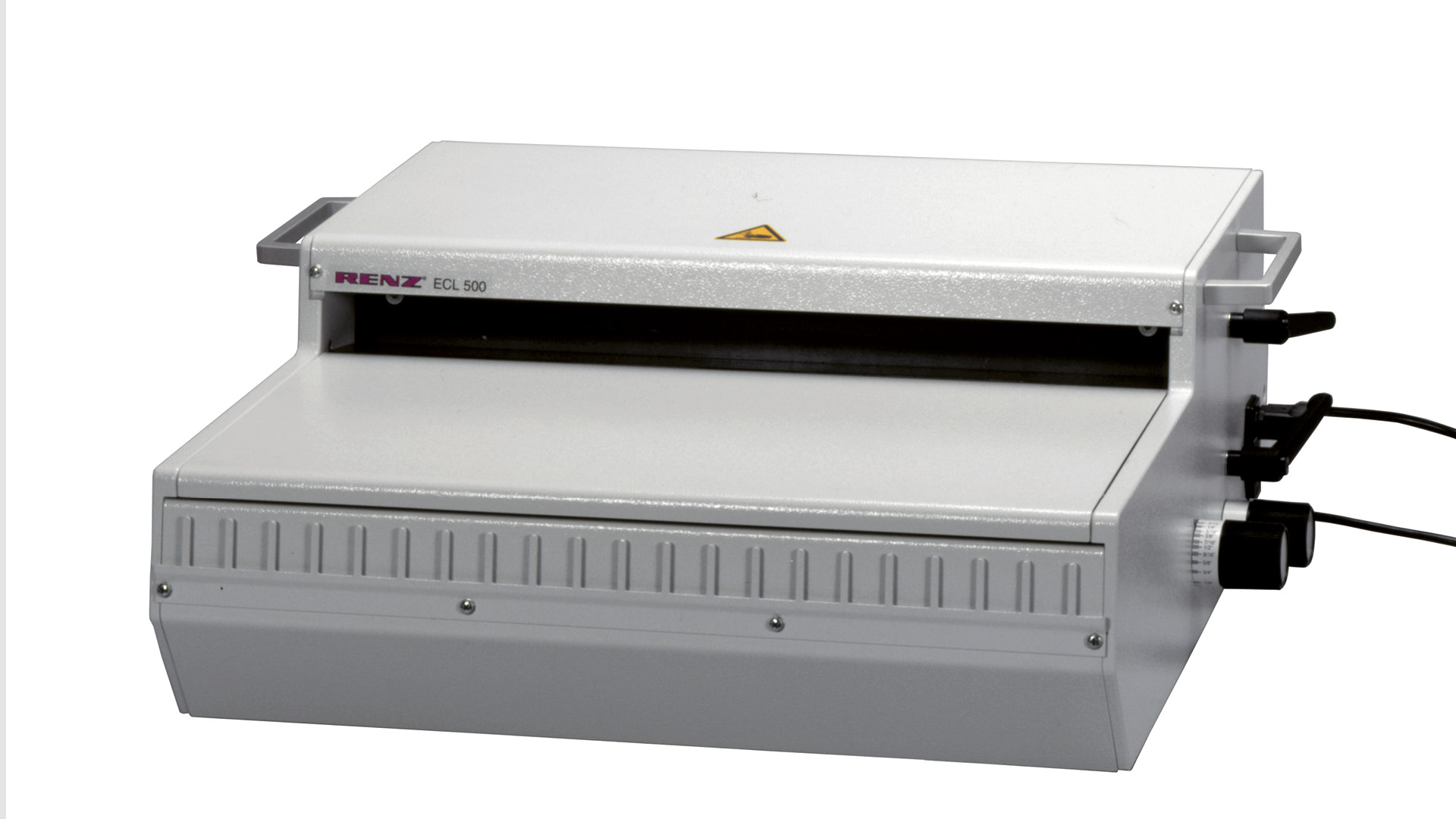

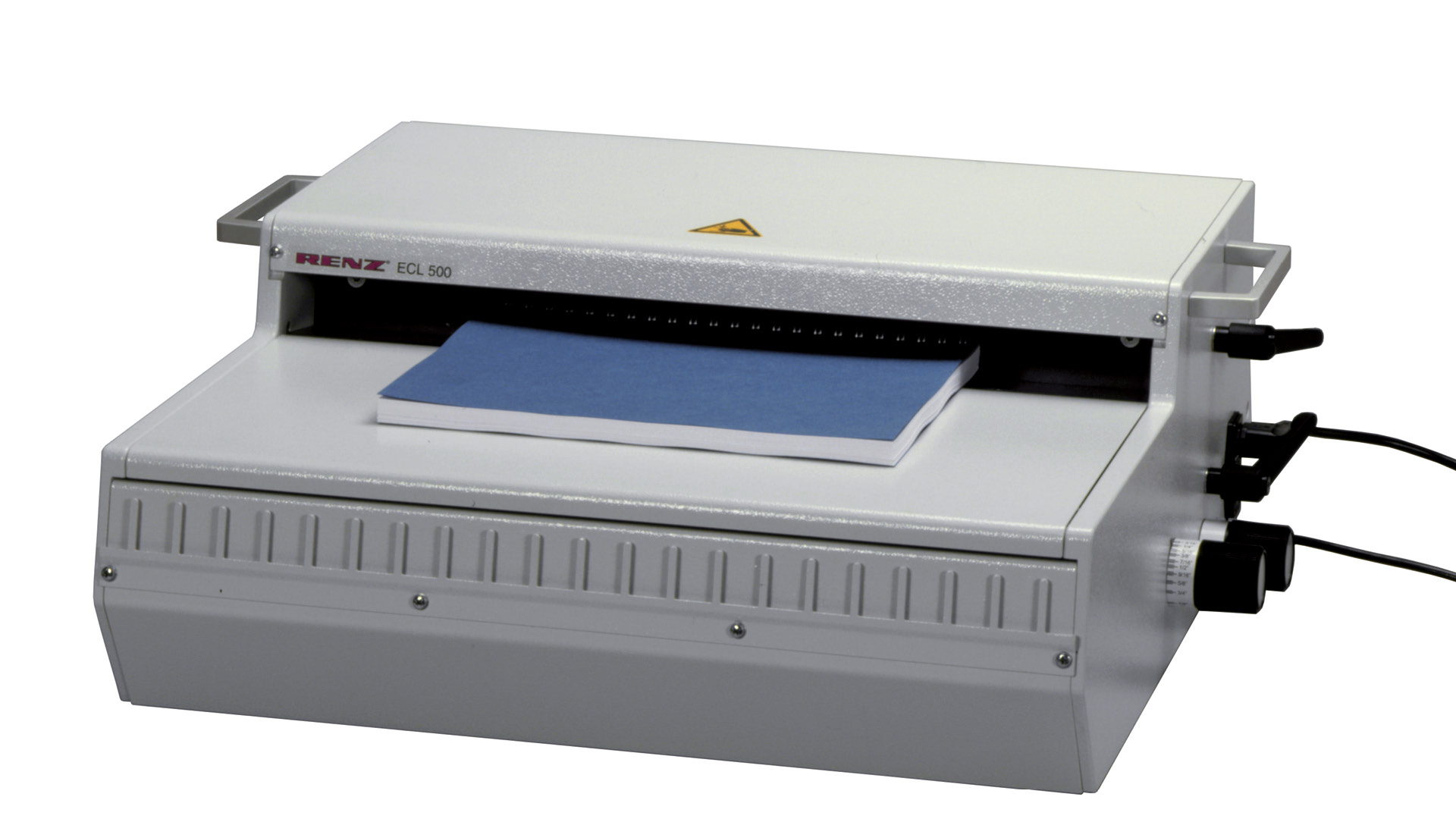

The electric RENZ ECL 500 closes wire combs precisely and evenly – ideal for documents up to 500 mm in width. It is specifically designed for binding wire comb bound products – ensuring perfectly round-closed results. Ideal for finishing blocks, brochures, training materials, notebooks or calendars. With its robust construction and compact design, the ECL 500 is the ideal solution for medium to high-volume production in copy shops, digital print environments and industrial binding lines. Wire size can be adjusted in seconds via the integrated dial. The entire closing process is operated comfortably via foot pedal, and a built-in safety system protects the operator. An integrated wire hanging device and precise parallel closing adjustment guarantee clean, professional results with minimal effort.
Features

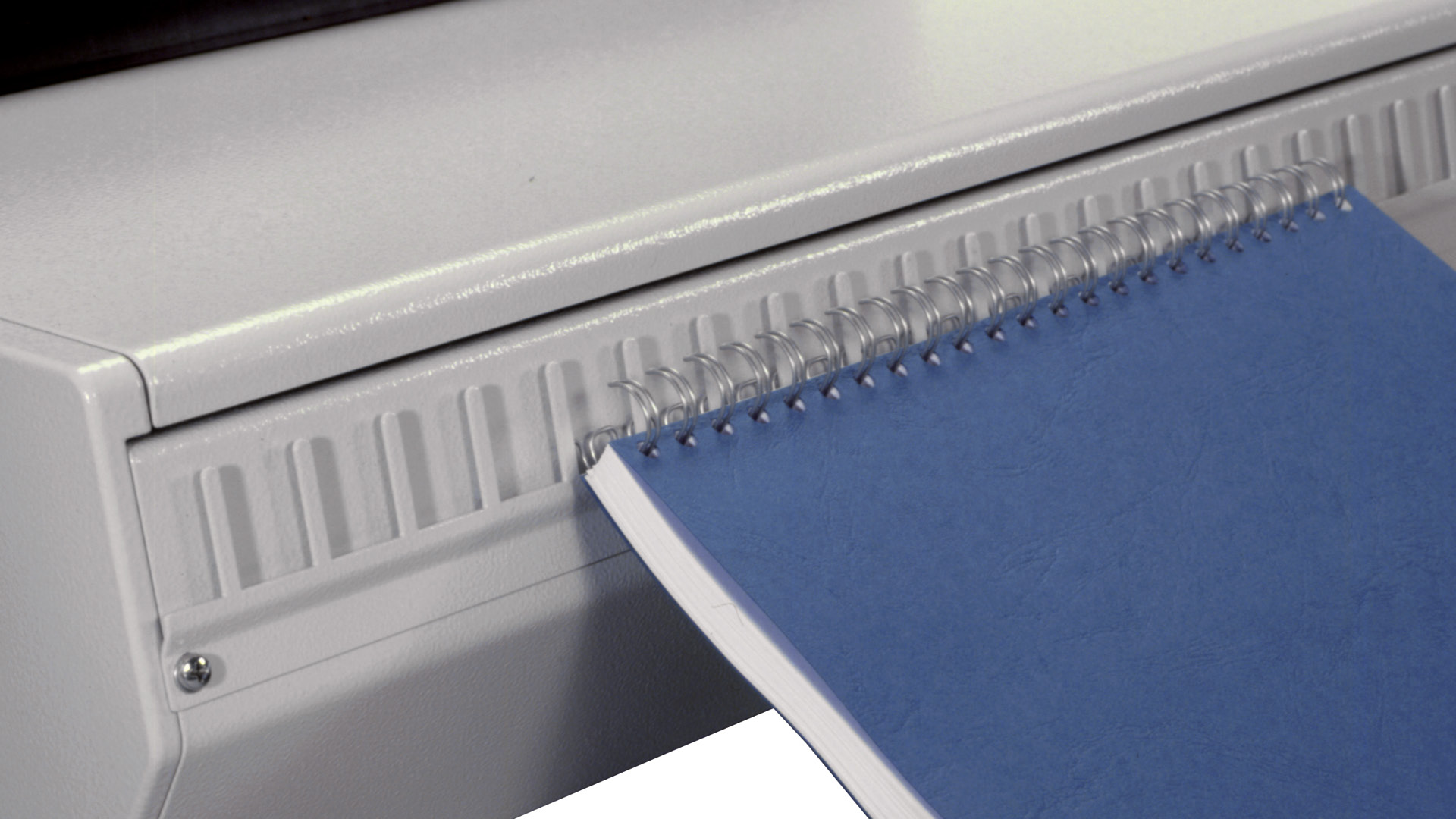

- For binding wire combs up to 1 ½″ (38 mm)
- Working width: up to 500 mm
- Binding capacity: up to 340 sheets (80 gsm)
- Perfect round closure through parallel adjustment

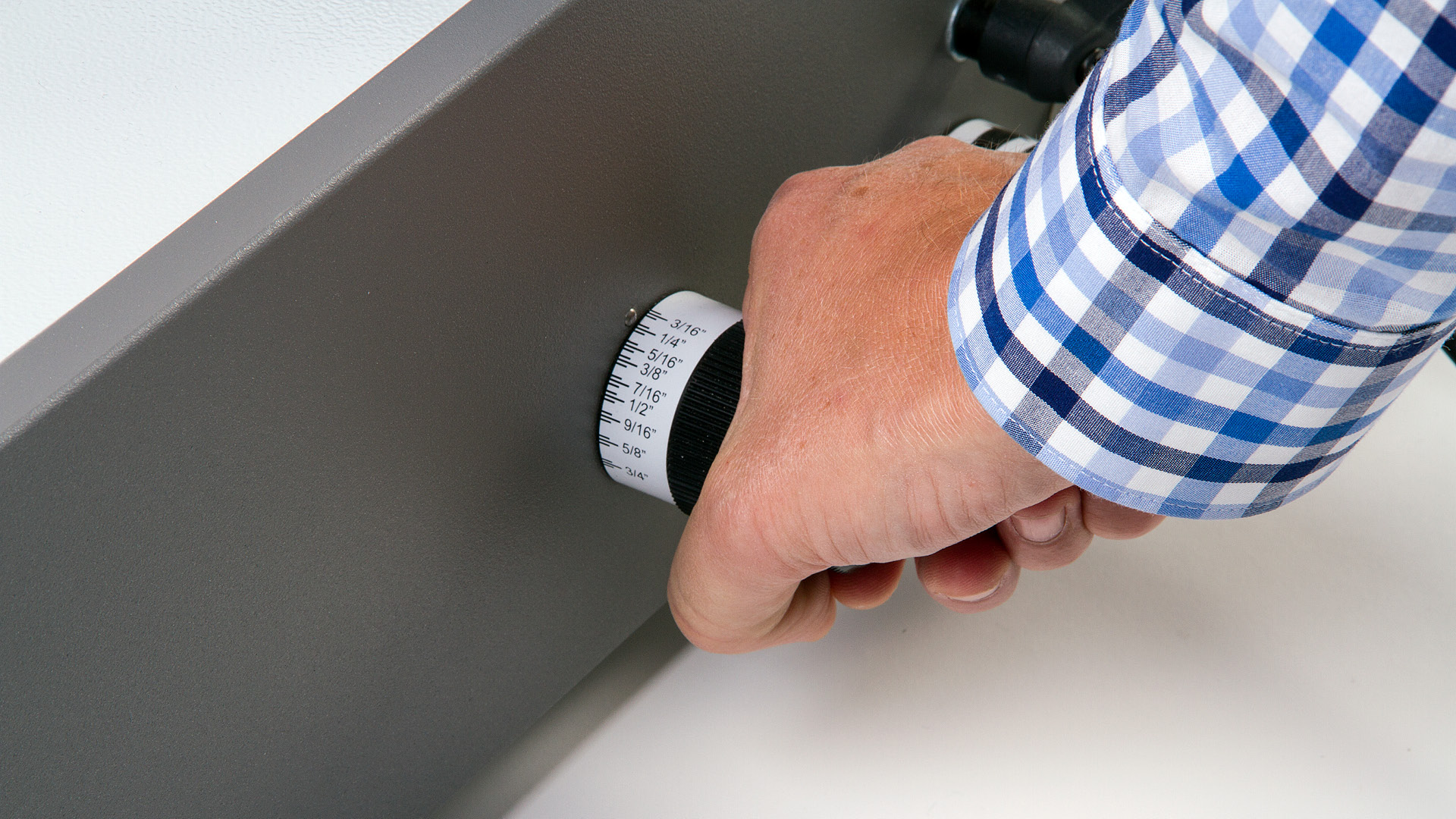

- Quick wire size adjustment via integrated dial
- Convenient foot pedal operation
- Built-in wire hanging device

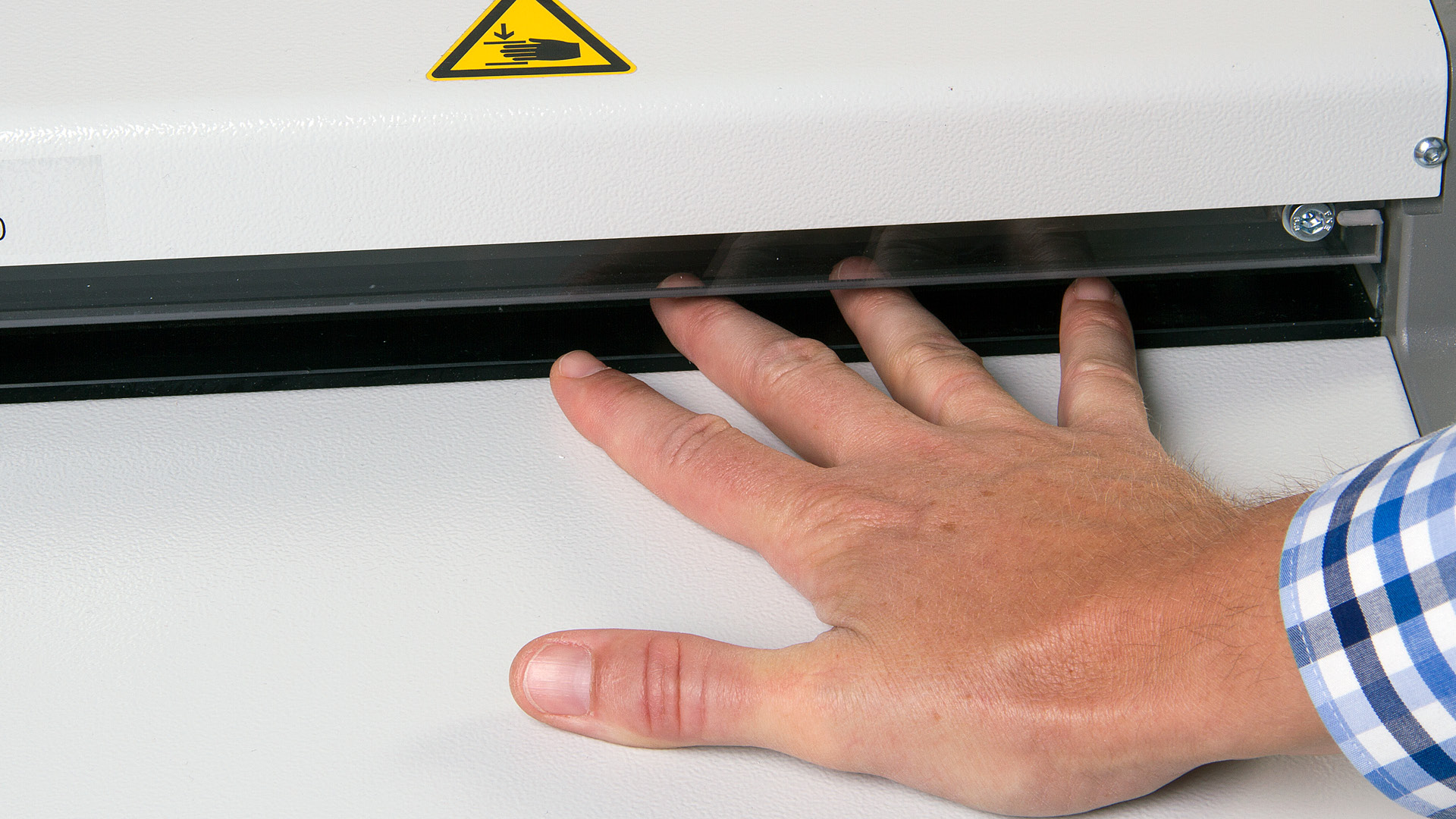

- Automatic safety system
- Compact, durable design
Properties
| Product type: | Electric binding machine |
|---|---|
| Field of application: | Wire comb binding, Calendar binding |
| Function: | electrical binding |
| Operation: | Foot switch |
| Setup / Settings: | manuell |
| Diameter change: | 0,3 min |
| Working width: | 500 mm |
| Min. format (w x l): | 10 x 65 mm |
| Max. format (w x l): | 500 x 600 mm |
| Pitch: | 3:1, 2:1 |
| Workable diameters: | Ø 1/4″ – 1 1/2″ (6,9 – 38,0 mm) |
| Max. binding thickness (mm): | 34,0 mm |
| Max. binding thickness (sheets, 70-80gsm): | 340 |
| Max. bound items /h: | 400 |
| Feeding calendar hangers (optional): | Manual single feeding |
| Power requirement: | 230V, 1PH/N/PE, 50Hz, 250W |
| Power requirement (alternativ): | 115V, 1PH/N/PE, 60Hz, 250W |
| Product size (w x h x d): | 650 x 230 x 530 mm |
| Product weight: | 46,0 kg |
