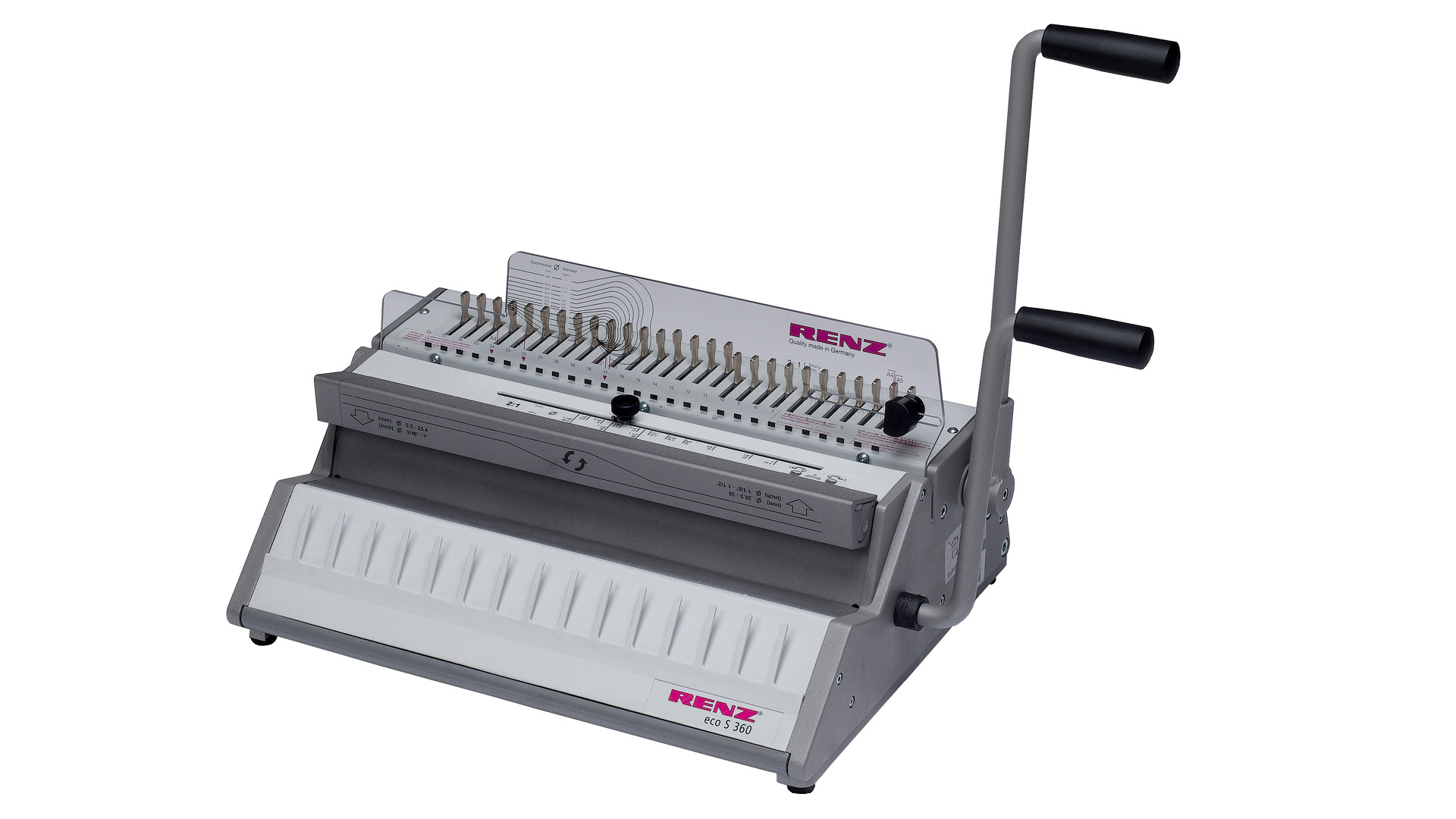

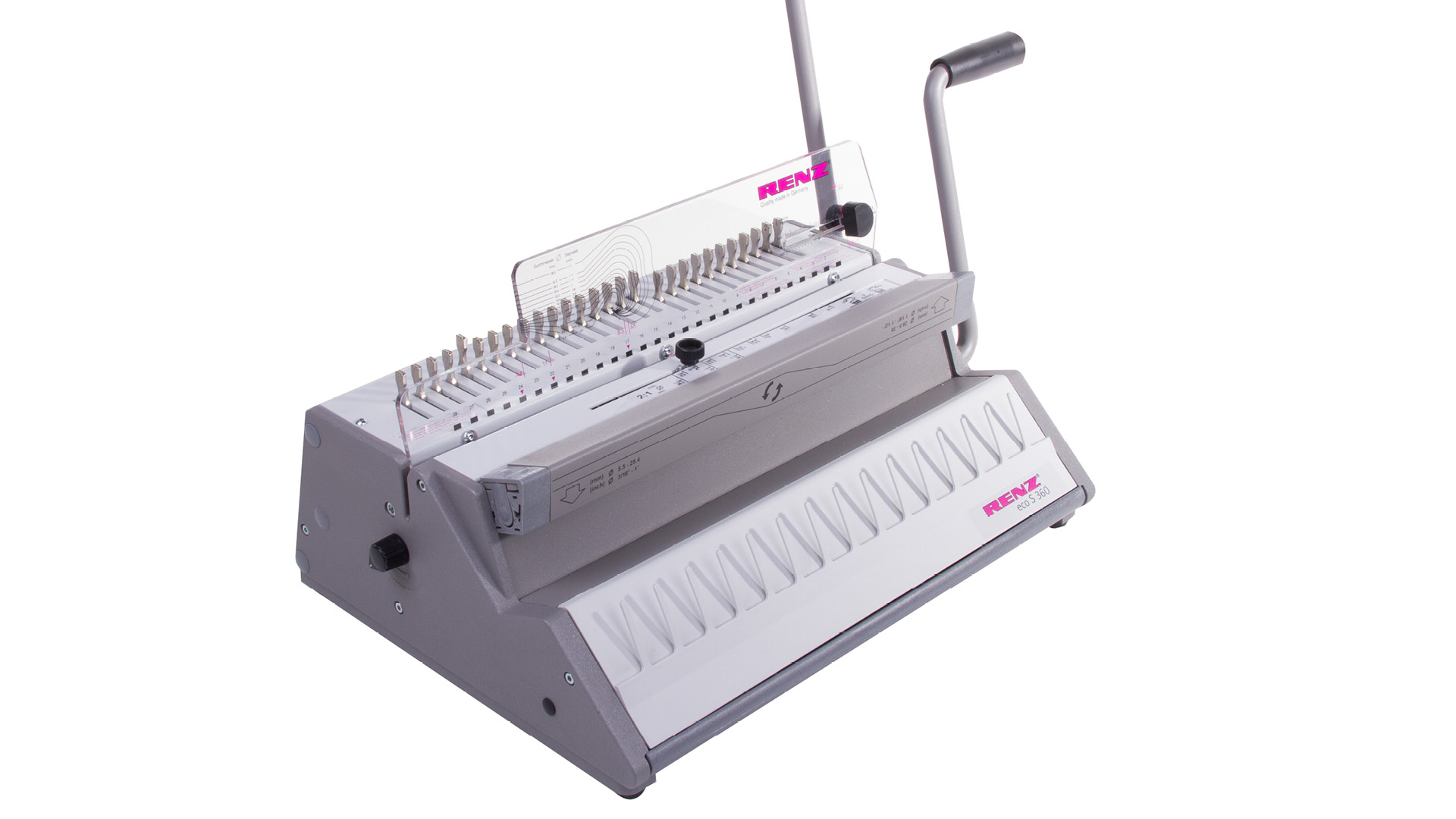

RENZ
ECO S 360
Precise punching and binding with 2:1 pitch – for strong wire bindings up to 340 sheets.
Manual 2:1 wire comb binding machine with two-handle operation, QSA technology and 360 mm working width – ideal for binding blocks, brochures, documents and calendars.
The RENZ ECO S 360 is a manual 2:1 wire comb binding machine for punching and binding with wire combs up to 360 mm working width – ideal for blocks, brochures, documents and calendars in small to medium runs. Thanks to the open-ended punching and closing slot, even formats like A3 can be processed by punching and closing in two passes. The machine punches up to 25 sheets per stroke and binds up to 340 sheets (80 gsm). With QSA technology, individual hardened punching pins can be quickly deactivated – perfect for fast format adjustment to A5, A4 or custom sizes. The punching margin is adjustable from 2 to 4.5 mm. An integrated measuring scale, parallel adjustment, and movable side lay ensure clean and precise results. Its ergonomic two-handle operation and durable metal housing make the ECO S 360 a dependable solution for professional wire comb binding.
Features
- Binds up to 340 sheets (80 gsm)
- Punching capacity: up to 25 sheets per stroke
- 360 mm working width – A3 supported via two-step punching and closing
- 2:1 pitch (23 rings per A4)

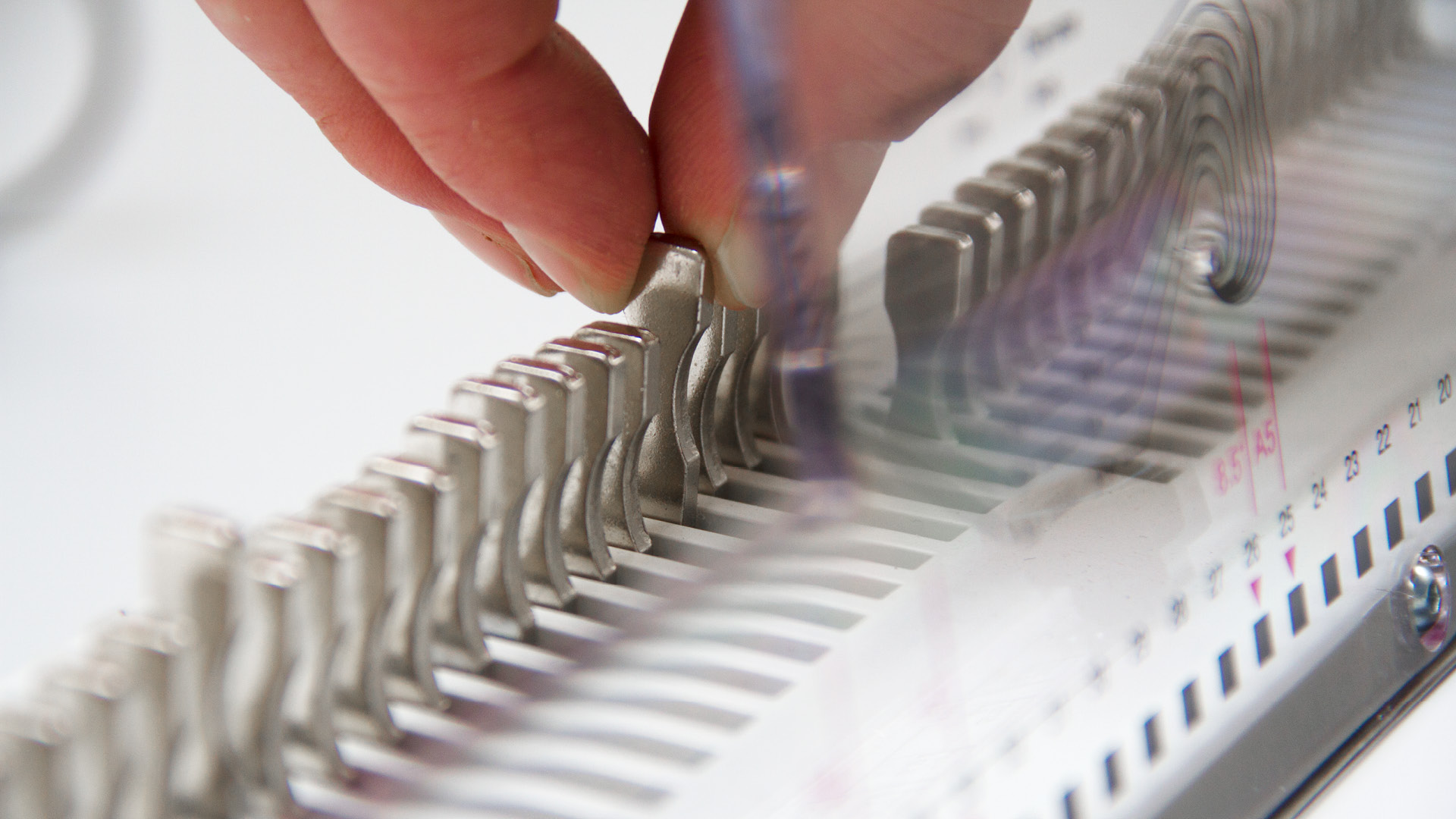

- QSA technology: quickly deactivate individual hardened punching pins – ideal for A4, A5 and custom sizes
- Adjustable punching margin: 2–4.5 mm

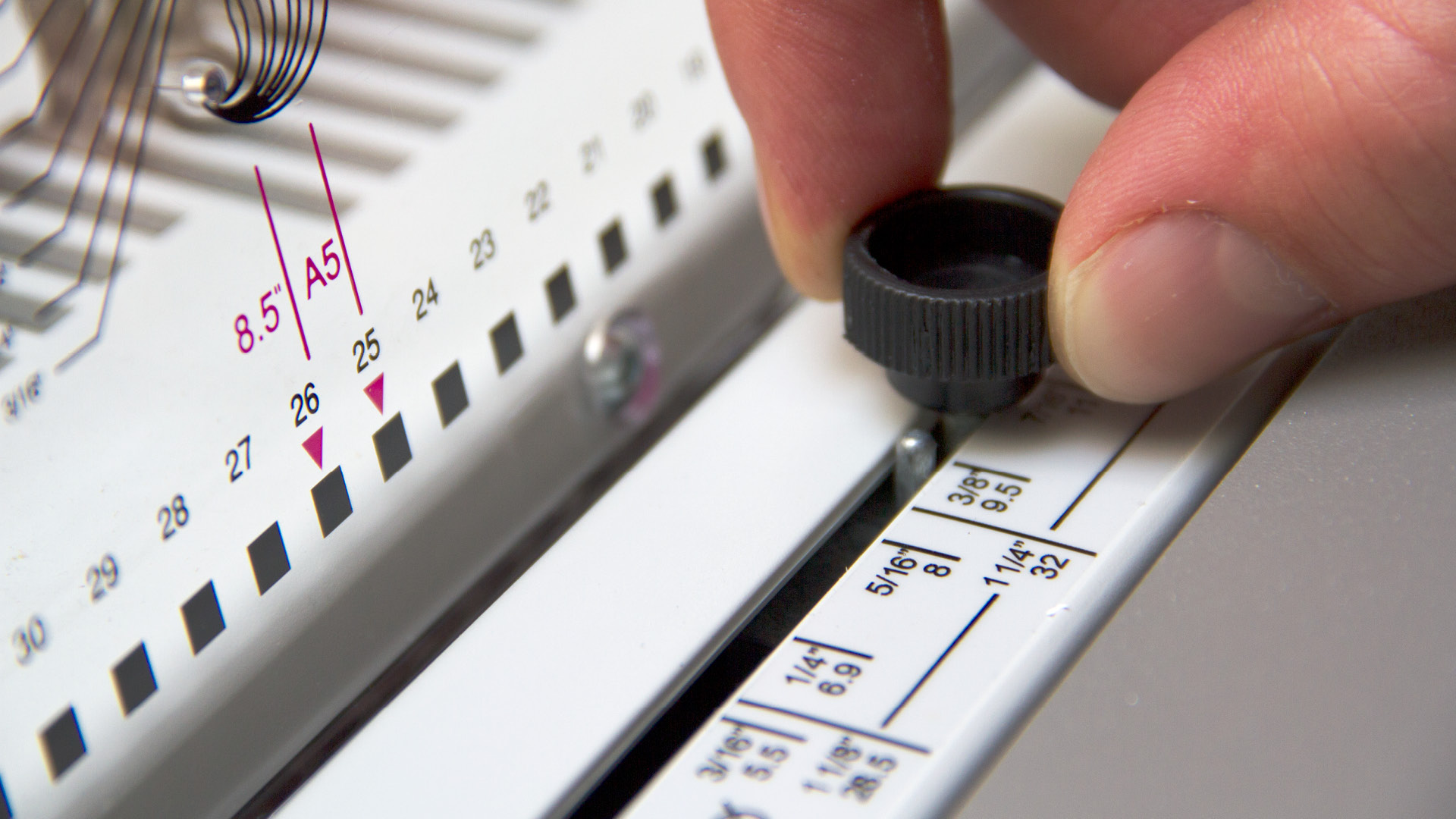

- Diameter setting for accurate closure
- Parallel adjustment for consistent binding results
- Movable side lay and integrated measuring scale

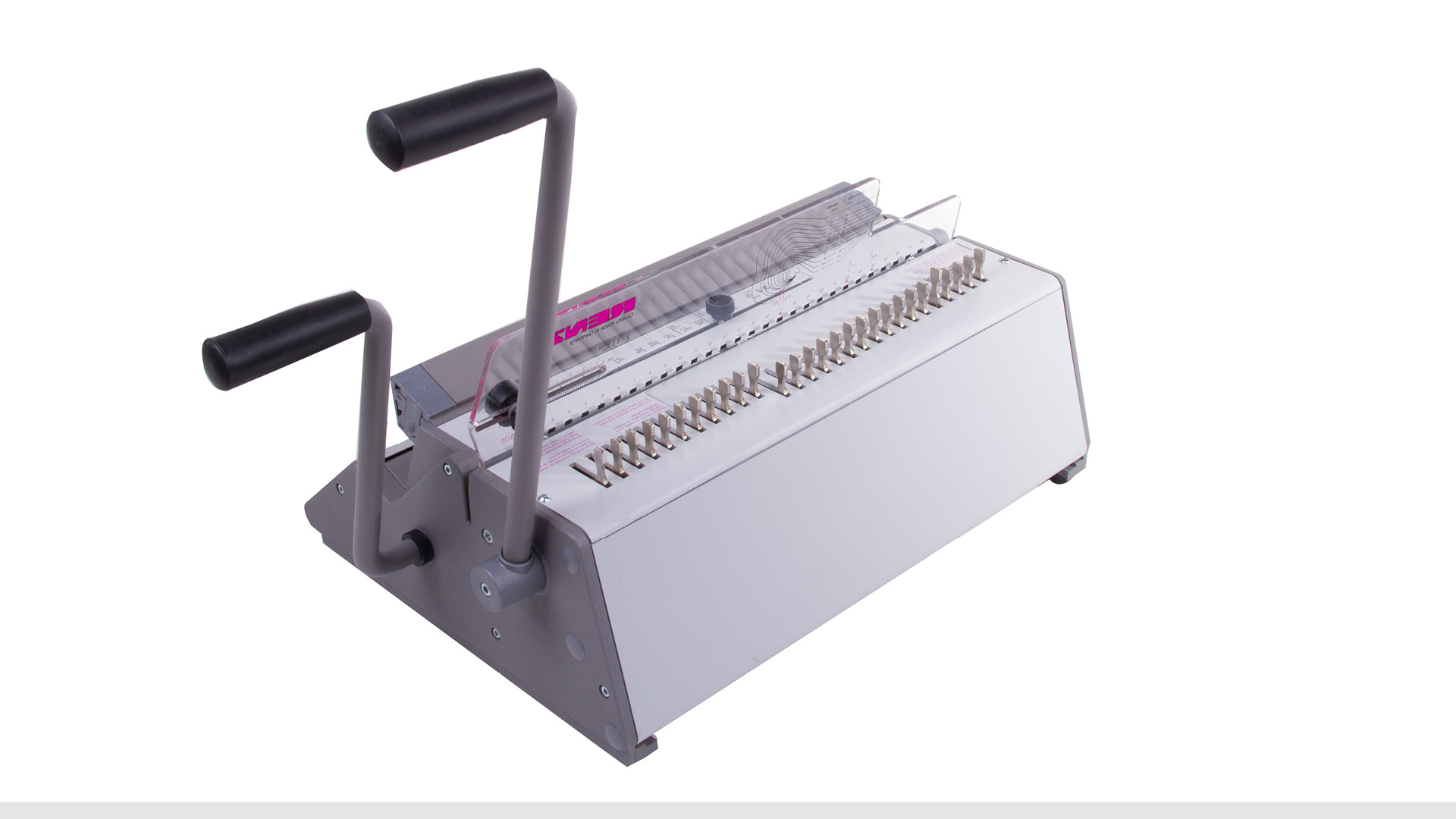

- Durable metal housing and ergonomic two-handle operation
Properties
| Product type: | Manual punching and binding machine |
|---|---|
| Field of application: | Wire comb binding |
| Function: | manual punching and binding |
| Operation: | Punching lever, Binding lever |
| Setup / Settings: | manuell |
| Format change: | 0,2 min |
| Diameter change: | 0,1 min |
| Working width: | 360 mm |
| Min. format (w x l): | 10 x 50 mm |
| Max. format (w x l): | 360 x 500 mm |
| Pitch: | 2:1 |
| Hole pattern: | rectangular |
| Punch pattern: | 5,5 x 3,5 mm |
| Selectable punch pins (QSA): | yes |
| Adjusting margin depth: | variable margin depth |
| Workable diameters: | Ø 1/4″ – 1 1/2″ (6,9 – 38,0 mm) |
| Max. binding thickness (mm): | 34,0 mm |
| Max. binding thickness (sheets, 70-80gsm): | 340 |
| Max. punching thickness: | 2,5 mm |
| Max. punched sheets p/h: | 12000 |
| Max. bound items /h: | 200 |
| Product size (w x h x d): | 560 x 180 x 330 mm |
| Product weight: | 13,0 kg |
| Packing unit: | 1 |
