Description
RENZ
Mobi 500
Maximum efficiency with minimal effort – the RENZ MOBI 500.
The semi-automatic MOBI 500 combines ergonomics, user convenience and productivity – ideal for professional applications such as book, brochure and calendar production in finishing operations.

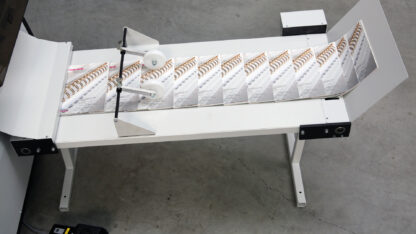

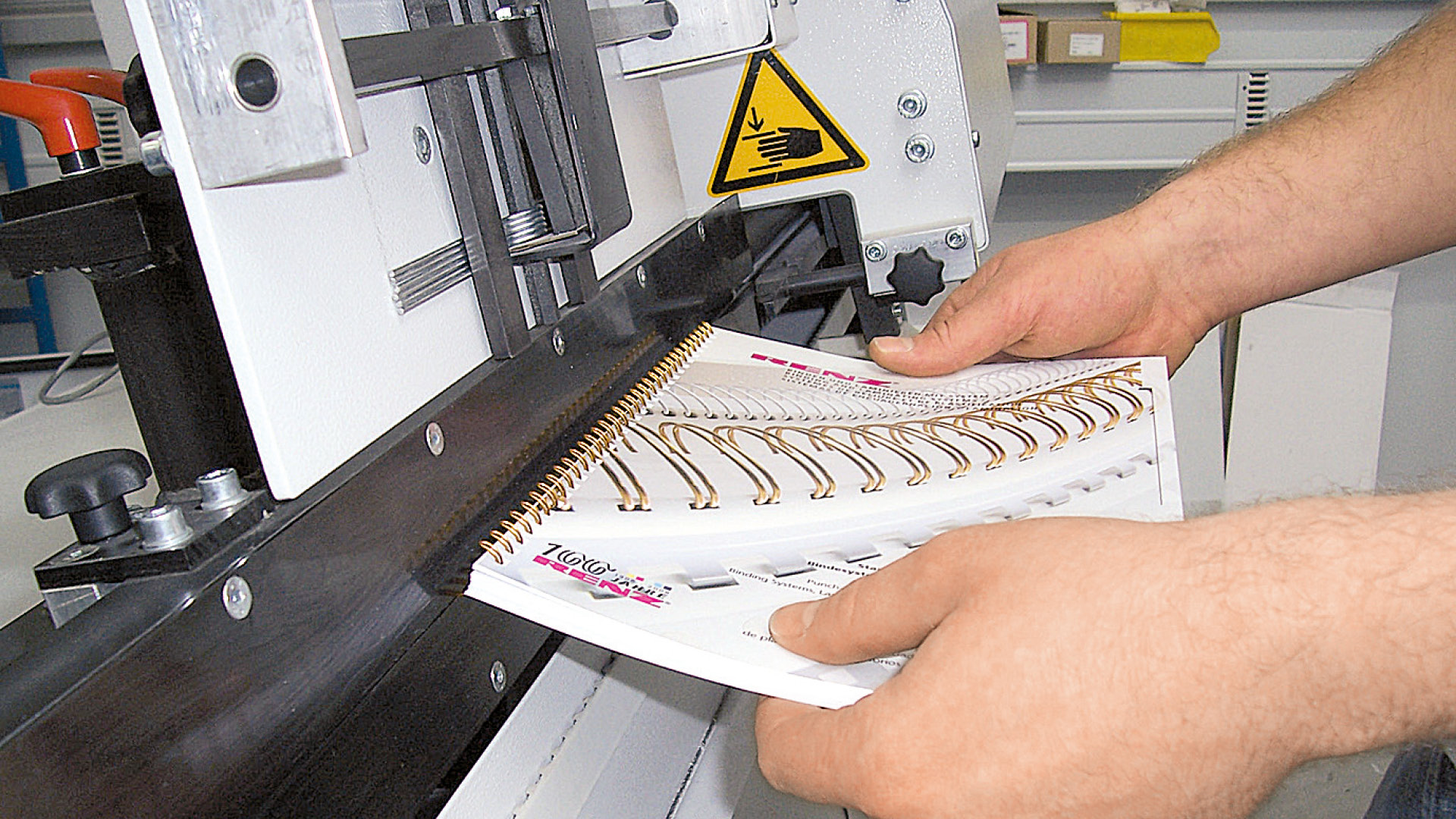

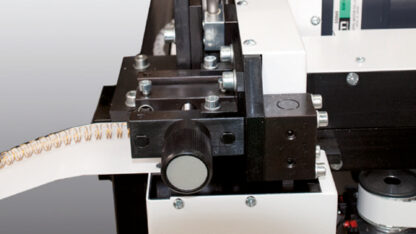

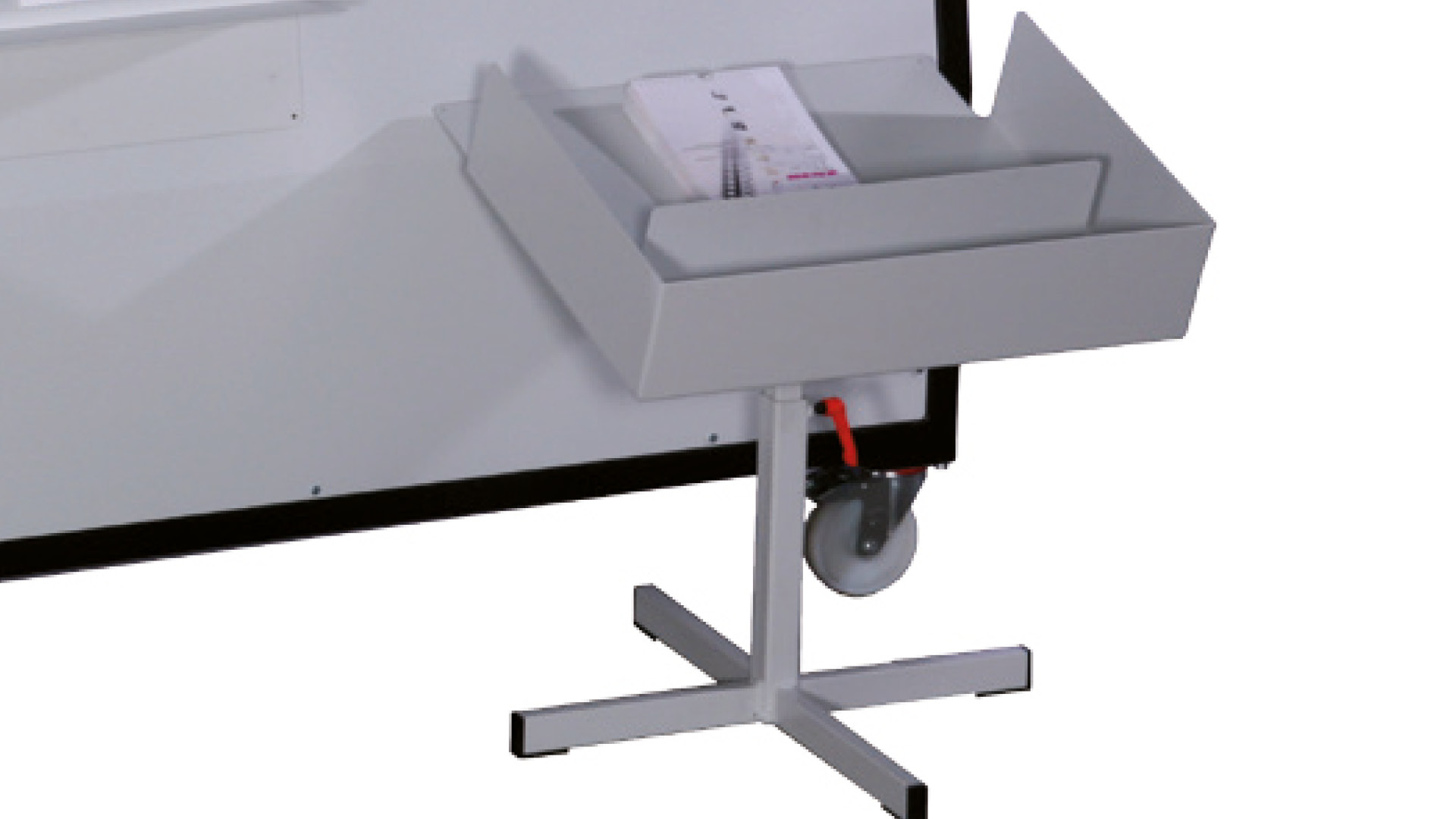

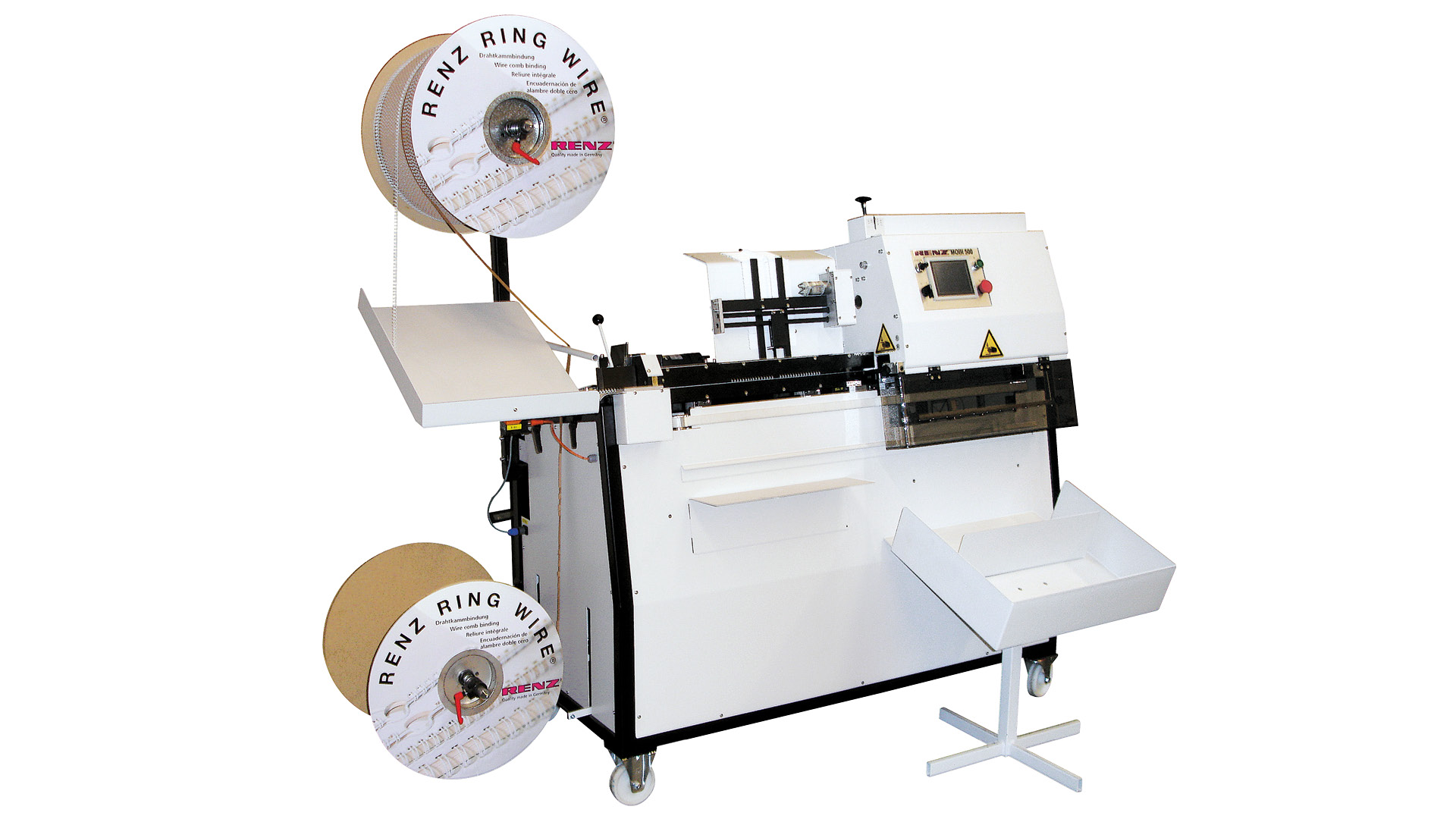

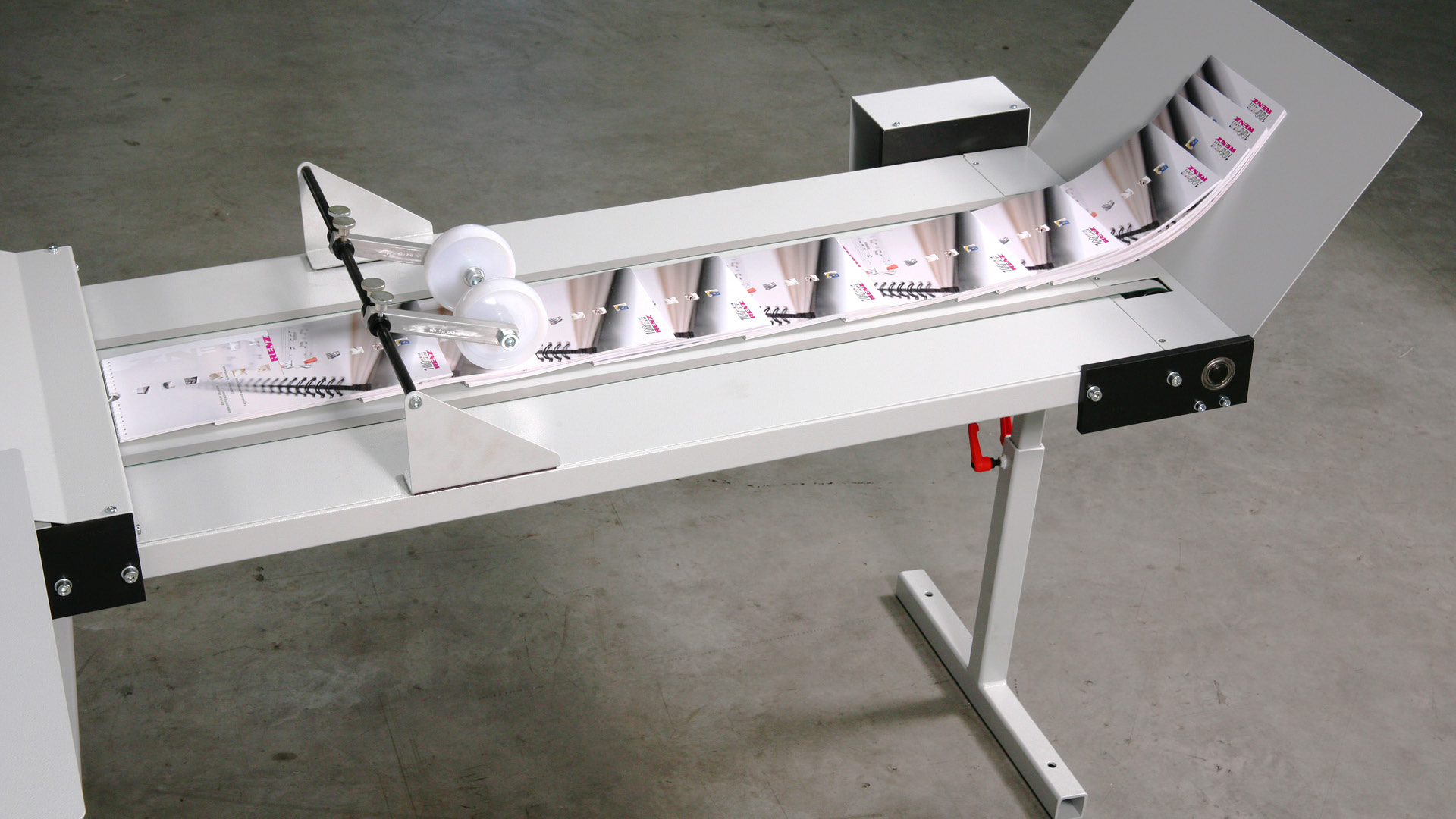

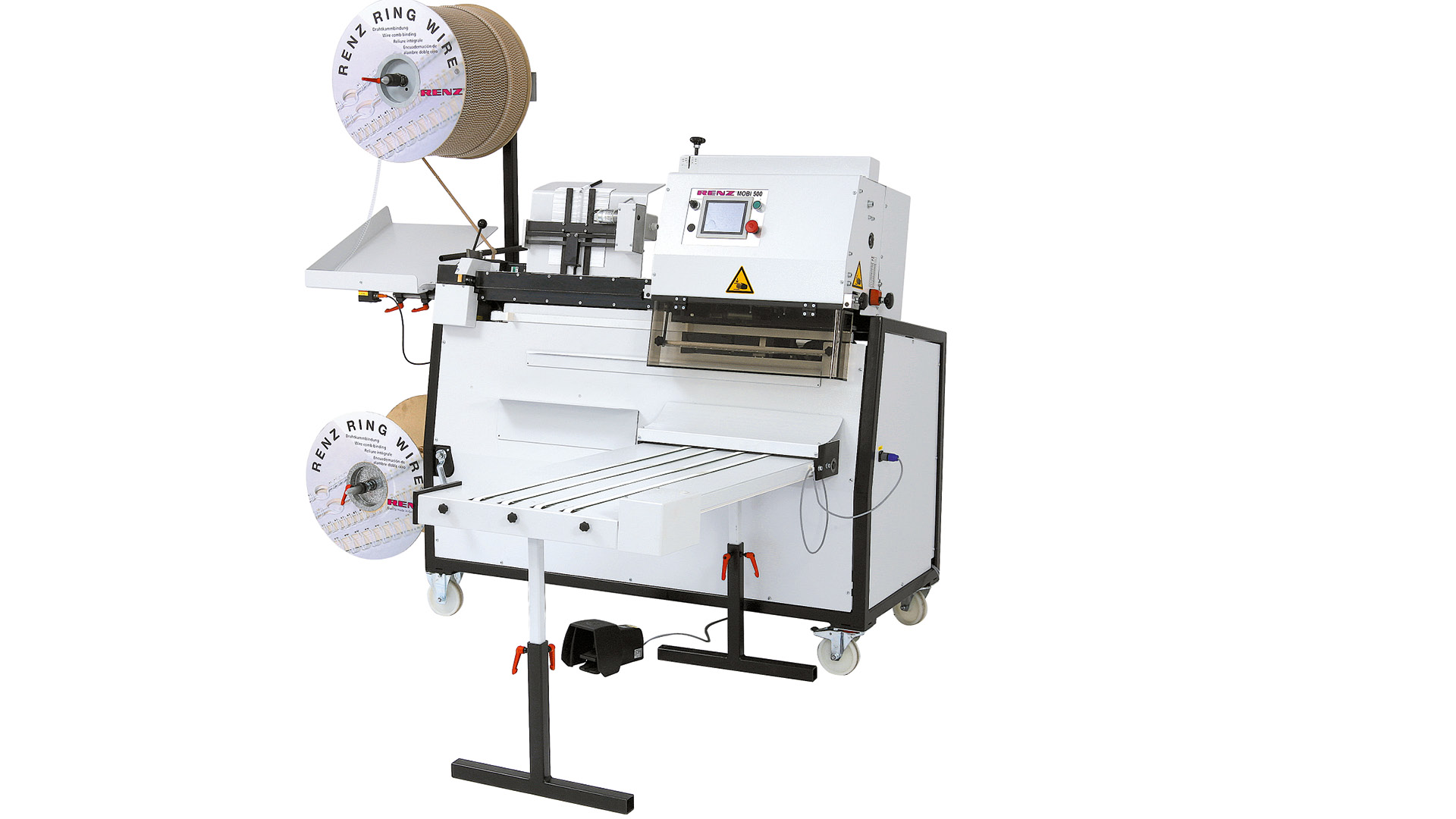

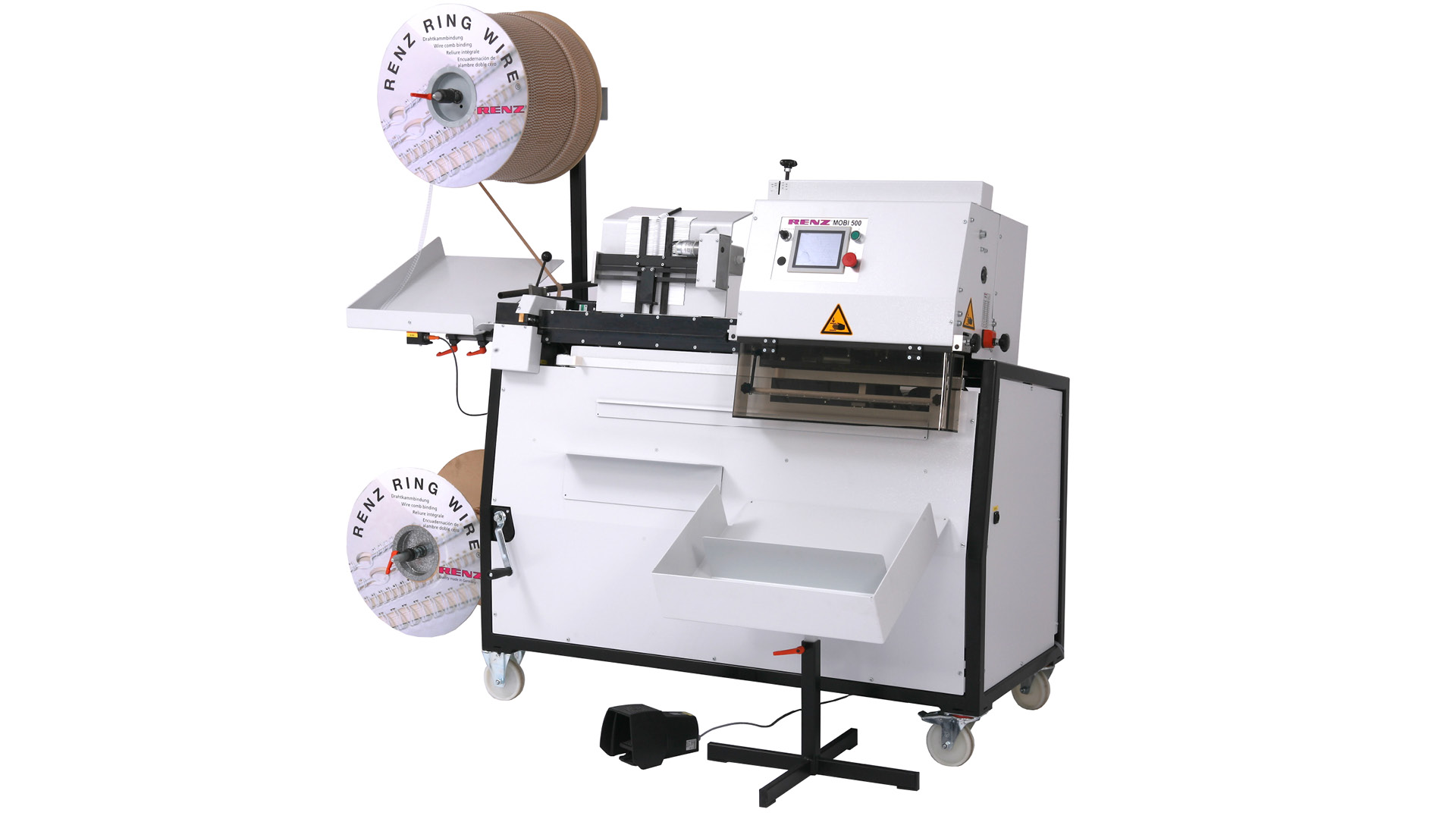

The RENZ MOBI 500 is a powerful, compact and ergonomically designed semi-automatic binding machine for book, calendar and skip binding using RENZ RING WIRE®. It is ideally suited for medium to high production volumes where flexibility, intuitive operation and process reliability are essential. Even demanding or difficult-to-bind products can be processed reliably with this machine. The pre-punched product is inserted horizontally into the wire element, which is automatically fed and cut from the wire spool – a proven method that, assisted by gravity, ensures safe positioning and fatigue-free operation. The binding cycle is triggered via foot switch, initiating automatic transport to the binding unit while simultaneously feeding the next wire element. Once the product is bound, it is delivered into the standard catch tray. For improved material logistics and processing speed, an optional height-adjustable shingling conveyor with adjustable spacing is available. Additionally, the system can be fitted with a calendar hanger dispenser – either the KA 300 for individual hangers or KA 300 R for reel-fed hangers (each suitable for 80–290 mm lengths), making it especially beneficial for seasonal calendar production. The MOBI 500 features a user-friendly touchscreen interface with integrated format and wire diameter adjustment. Changing wire diameters is fast and tool-free thanks to exchangeable guide plates. The machine binds up to 260 sheets and reaches an output of up to 1,000 cycles per hour with setup times of just 5–6 minutes. Thanks to its well-engineered design, the MOBI 500 can be operated without specialised staff and offers long-term investment security due to its robust German construction.
Features
- Semi-automatic ring wire comb binding machine for books, calendars and skip binding
- High flexibility of different paper formats
- Ability to bind oversized products

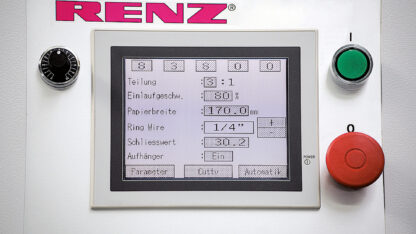

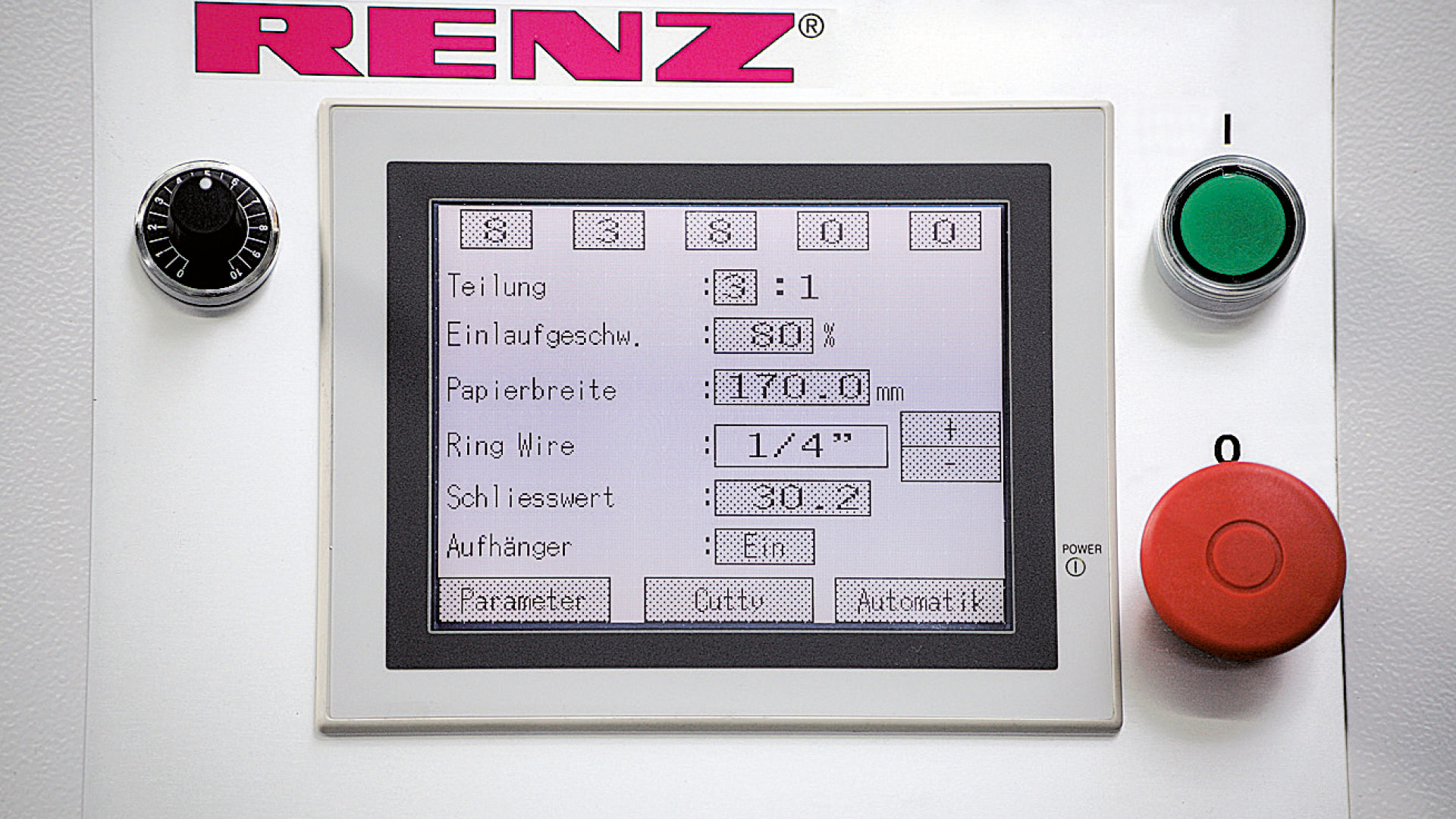

- Touch screen assisted setup process

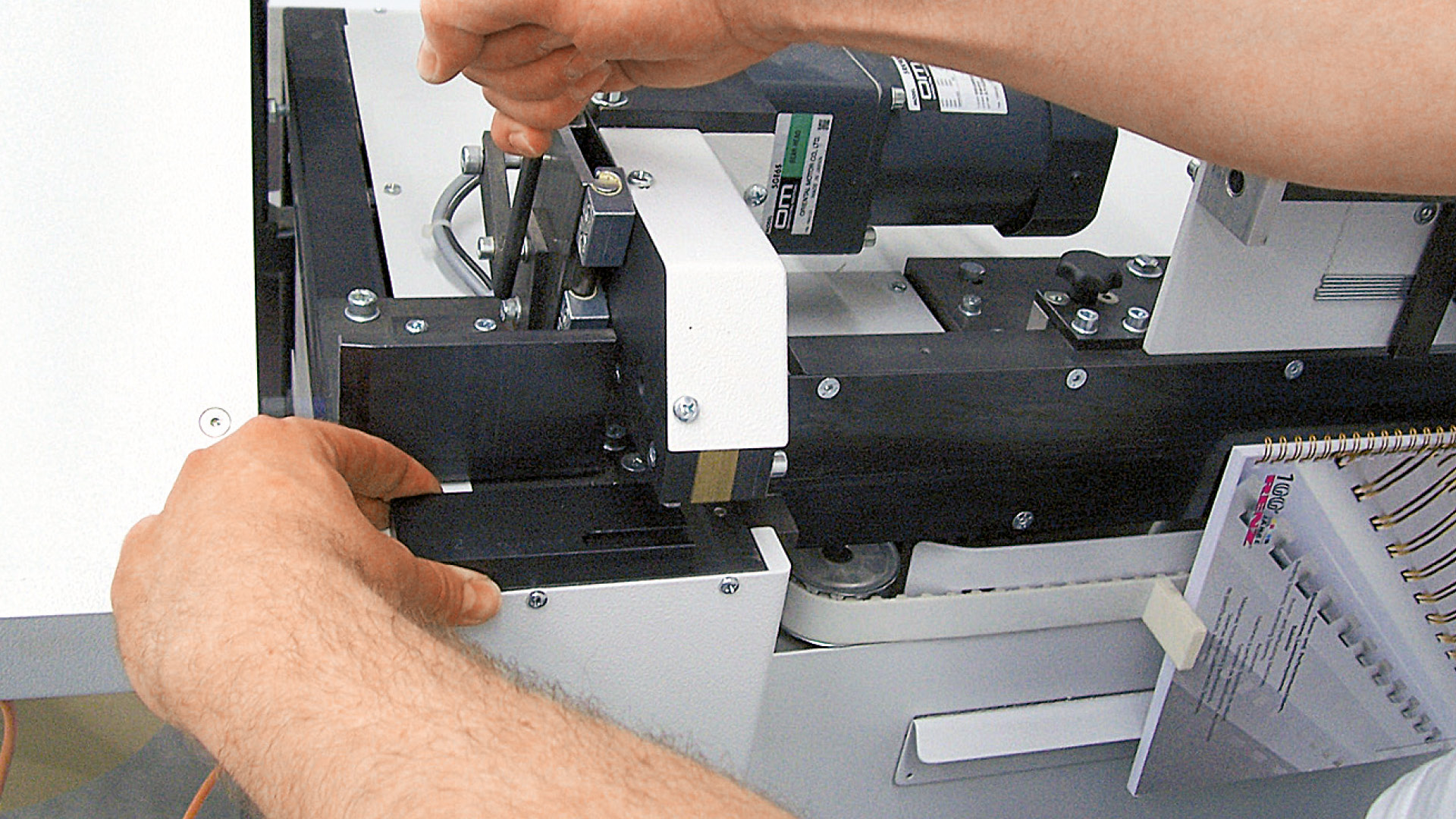

- Short setup times, no tools required
- Binds up to 260 sheets
- Product is easily loaded by hanging it on to the element
- No special training is required
- Wheels allow the machine to be moved easily
- Optional extras: Shingle conveyor, KAS calendar hanger systems
Properties
| Product type: | Semi-automatic binding machine |
|---|---|
| Field of application: | Wire comb binding, Calendar binding |
| Function: | electrical binding |
| Operation: | Foot switch |
| Setup / Settings: | Touchscreen, manuell |
| Format change: | 2 min |
| Diameter change: | 4 – 10 min |
| Working width: | 500 mm |
| Min. format (w x l): | 105 x 148 mm |
| Max. format (w x l): | 500 x 450 mm |
| Pitch: | 3:1, 2:1 |
| Workable diameters: | Ø 1/4″ – 1 1/4″ (6,9 – 32,0 mm) |
| Max. binding thickness (mm): | 26,0 mm |
| Mechanical cycles /h: | 1000 |
| Max. bound items /h: | 800 |

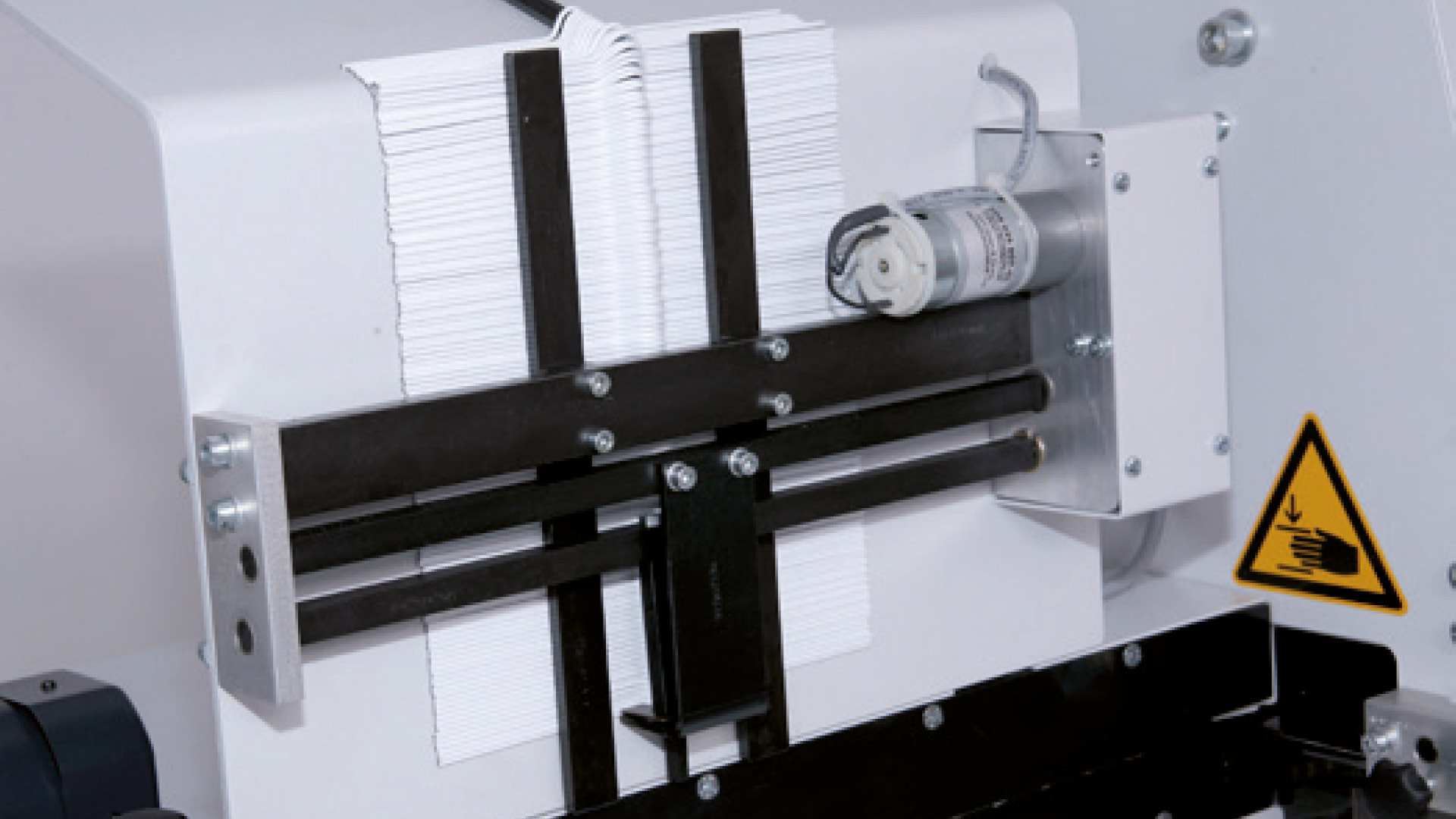

| Feeding calendar hangers (optional): | KA 300R (80 – 290 mm), KA 300 (80-290 mm) |
| Power requirement: | 230V, 1PH/N/PE, 50Hz, 1kW |
| Power requirement (alternativ): | 115V, 1PH/N/PE, 60Hz, 1kW |
| Product size (w x h x d): | 2200 x 2000 x 1400 mm |
| Product weight: | 500,0 kg |
