RENZ
Punch 500 ES
The powerful desktop punching machine for the most demanding applications
Fast, precise, and versatile: The RENZ Punch 500 ES offers everything a professional punching machine needs.

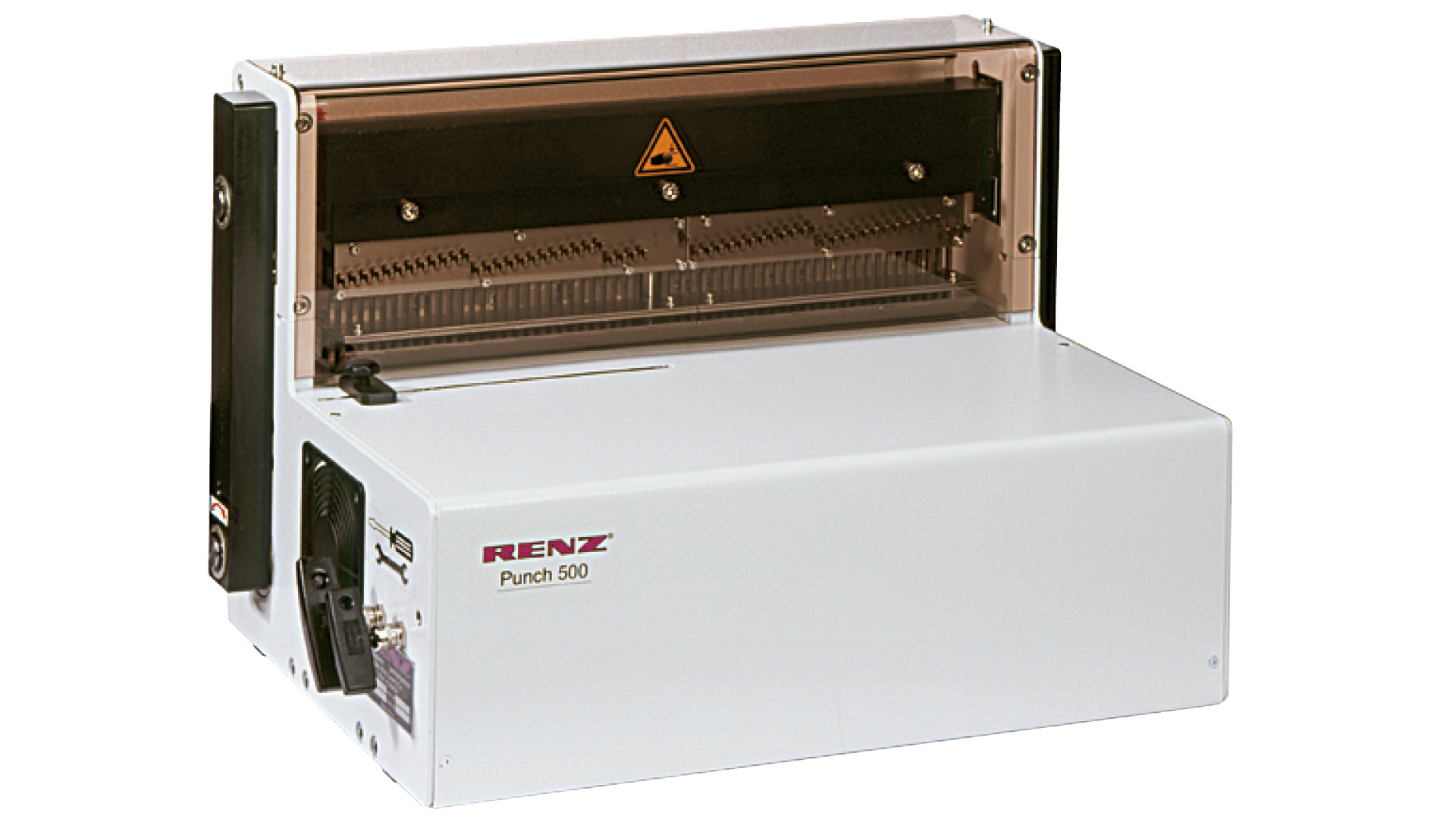

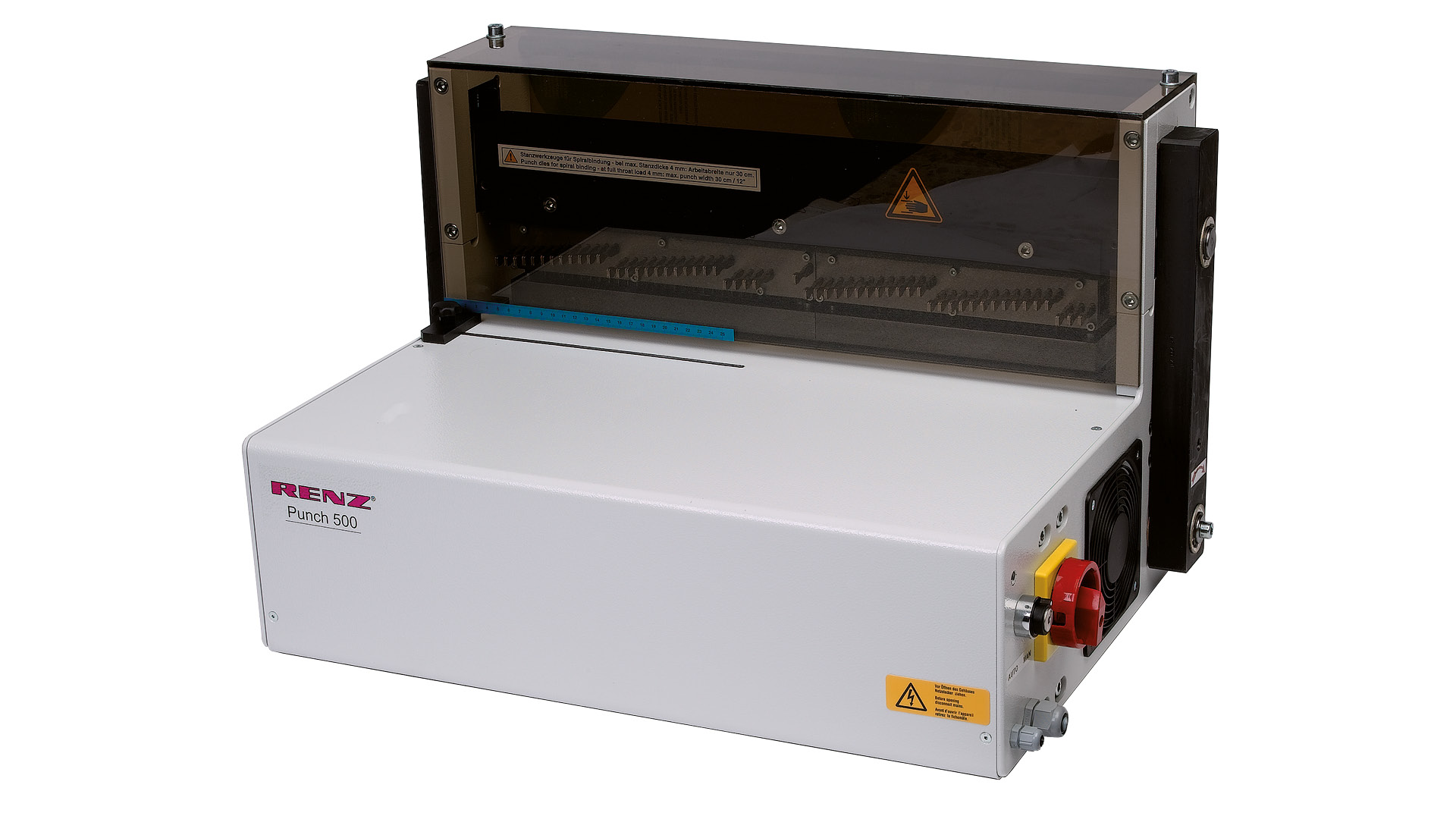

The RENZ Punch 500 ES is a professional high-performance punching machine designed for a wide range of binding applications. With a punching width of 500 mm and an impressive punching capacity of up to 4.0 mm thickness, it can easily handle even the toughest materials. The machine operates at high speed, punching up to 36,000 sheets per hour, making it one of the most productive machines in its class. It offers exceptional flexibility with optional punching dies available in various pitches and hole patterns, suitable for all common binding styles such as wire, plastic coil, comb binding, and calendar production. With the innovative QSA (Quick Size Adjustment) technology, formats can be quickly and easily adjusted by deactivating individual punch pins – without having to remove the tool. This unique technology enables punching of different hole patterns and special formats, ensuring efficient fulfillment of production requirements. The integrated micro-switch automatically triggers the punching cycle, but alternatively, the punching process can also be conveniently activated via a foot pedal. The horizontal paper loading system, combined with a large front table, provides extra comfort and stability during the punching process. With high speed and flexibility, the RENZ Punch 500 ES addresses common challenges in punching production. It handles material thicknesses that are problematic for other machines, and can punch through thick envelopes or specialty papers. The machine can also handle coated materials and films with ease. Additionally, irregular, oversized, or special formats can be processed without difficulty, a task often challenging for other automatic punching machines.
Features
- High-performance punching machine with a punching width of 500 mm and punching capacity of up to 4 mm
- Up to 36,000 sheets per hour

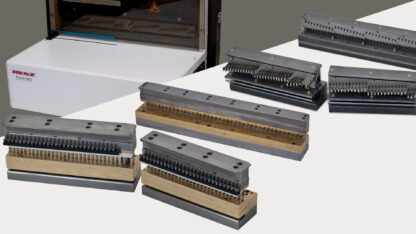

- Optional punching dies for all common binding styles (wire, plastic coil, comb, calendar)
- QSA technology for quick and flexible format adjustments
- Automatic punching cycle triggered by micro-switch

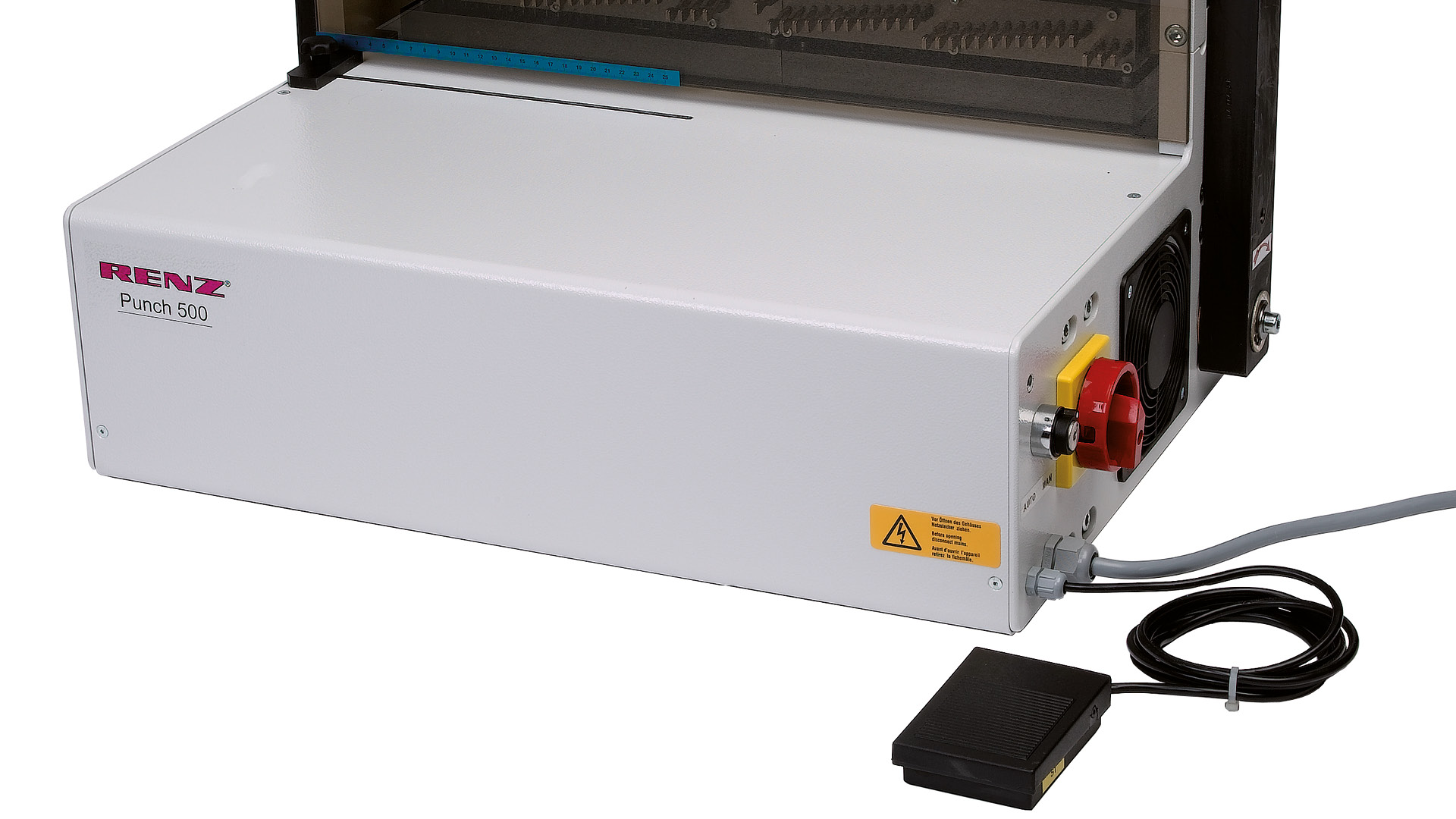

- Alternative foot pedal operation
- High flexibility in the selection of hole patterns and pitches
- Horizontal paper loading system for precise and stable punching
- Handles challenges like thick envelopes, specialty papers, and irregular formats
Properties
| Product type: | Electric punching machine |
|---|---|
| Field of application: | Wire comb binding, Calendar binding, Coil binding (PVC), Spiral binding (wire), Plastic comb binding |
| Function: | electrical punching |
| Operation: | Micro switch, Foot switch |
| Setup / Settings: | manuell |
| Changing punching die: | 3 min |
| Working width: | 500 mm |
| Min. format (w x l): | 60 x 60 mm |
| Max. format (w x l): | 500 x 800 mm |
| Pitch: | 5/16″ (8mm), 3:1, 2:1, US, 0.2475″, 0.23622″, 4:1, 2.5:1, 5:1 |
| Optional punching tools available: | Punching dies available in many pitches, hole patterns and designs: wire comb binding, calendar binding, plastic binding, spiral binding |
| Punching die type: | High-performance punching die, Standard punching die |
| Selectable punch pins (QSA): | Standard die: yes, High-performance punching die: yes (on request) |
| Adjusting margin depth: | Standard die: fixed margin depth, High-performance punching die: variable margin depth possible (on request) |
| Multi-part punching dies: | yes (depending on die) |
| Bespoke dies: | yes (on request) |
| Mechanical cycles /h: | 3000 |
| Max. punching thickness: | 4,0 mm |
| Max. punched sheets p/h: | 36000 |
| Power requirement: | 400V, 3PH/N/PE, 50Hz, 3,5kW |
| Power requirement (alternativ): | on request |
| Product size (w x h x d): | 670 x 400 x 450 mm |
| Product weight: | 112,0 kg |
