RENZ
Punch 700
Professional high-performance punching machine for large formats
High-performance punch with automatic activation and versatile die options – ideal for printers and bookbinding professionals.

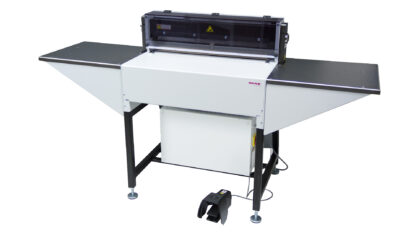

The RENZ Punch 700 is a large-format high-performance punching machine designed for professional print finishing and post-press applications. It is ideal for preparing paper stacks for subsequent binding processes. With side-mounted logistics tables and a horizontal paper feed system, it ensures precise operation and an efficient workflow. The machine processes materials up to 4.2 mm thick at a rate of up to 46,000 punched sheets per hour. Optional punching tools are available for all common binding types – including wire comb, plastic comb, spiral binding, as well as calendar production and special applications such as tear-off perforations. A key advantage: two 350 mm punching tools can be used simultaneously. This enables two products with different pitches or punching patterns to be punched on a single machine – without the need to change tools. The integrated QSA (Quick Size Adjustment) technology allows for individual punching dies to be selectively deactivated, enabling flexible format changes without removing the tool. A microswitch automatically activates the punching process as the paper is inserted, or alternatively, it can be triggered via a foot switch.
Features
- Punches up to 4.2 mm per stroke
- Speed: up to 46,000 sheets/hour
- Simultaneous use of two 350 mm tools with different punch patterns
- Optional high-performance punching dies for all common binding styles
- QSA technology for fast format changes
- Microswitch for automatic punch activation
- Foot pedal operation available

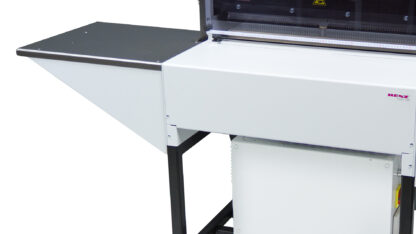

- Horizontal paper feed with logistics tables

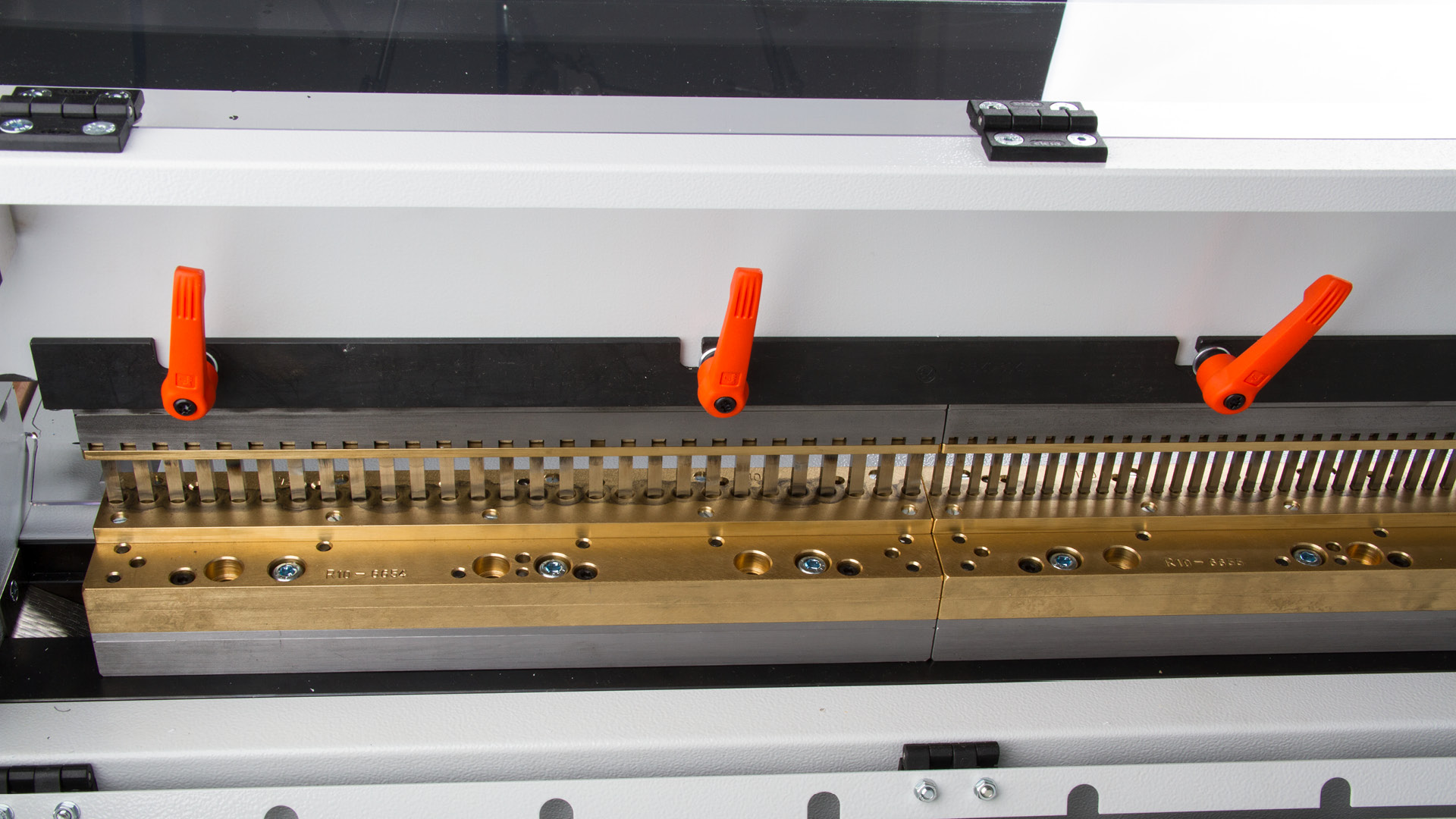

- Quick die exchange
Properties
| Product type: | Electric punching machine |
|---|---|
| Field of application: | Wire comb binding, Calendar binding, Coil binding (PVC), Spiral binding (wire), Plastic comb binding |
| Function: | electrical punching |
| Operation: | Micro switch, Foot switch |
| Setup / Settings: | manuell |
| Changing punching die: | 5 min |
| Working width: | 700 mm |
| Min. format (w x l): | 60 x 70 mm |
| Max. format (w x l): | 700 x 1000 mm |
| Pitch: | 5/16″ (8mm), 3:1, 2:1, US, 0.2475″, 0.23622″, 4:1, 2.5:1, 5:1 |

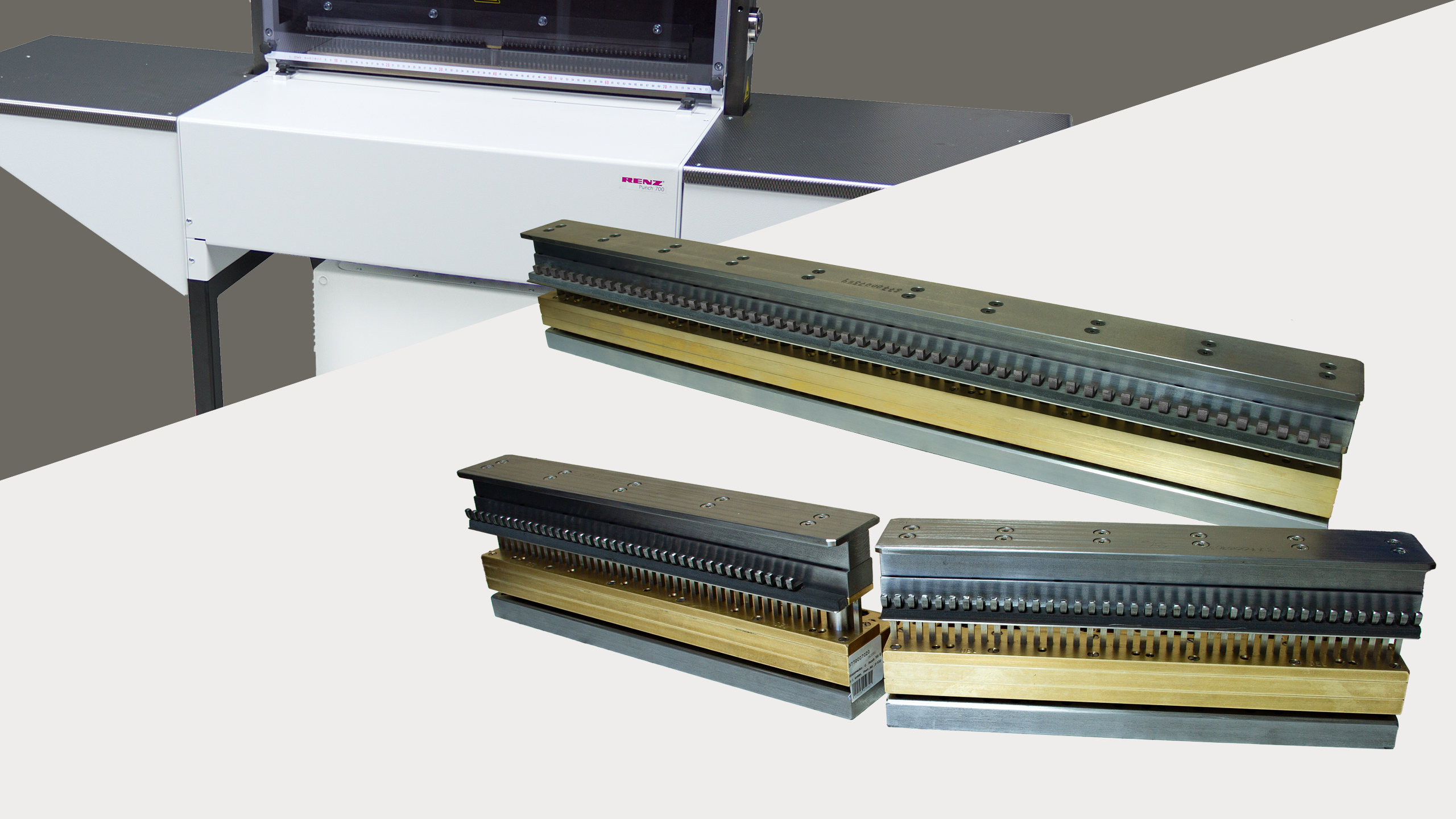

| Optional punching tools available: | Punching dies available in many pitches, hole patterns and designs: wire comb binding, calendar binding, plastic binding, spiral binding, tear-off perforation |
| Punching die type: | High-performance punching die |

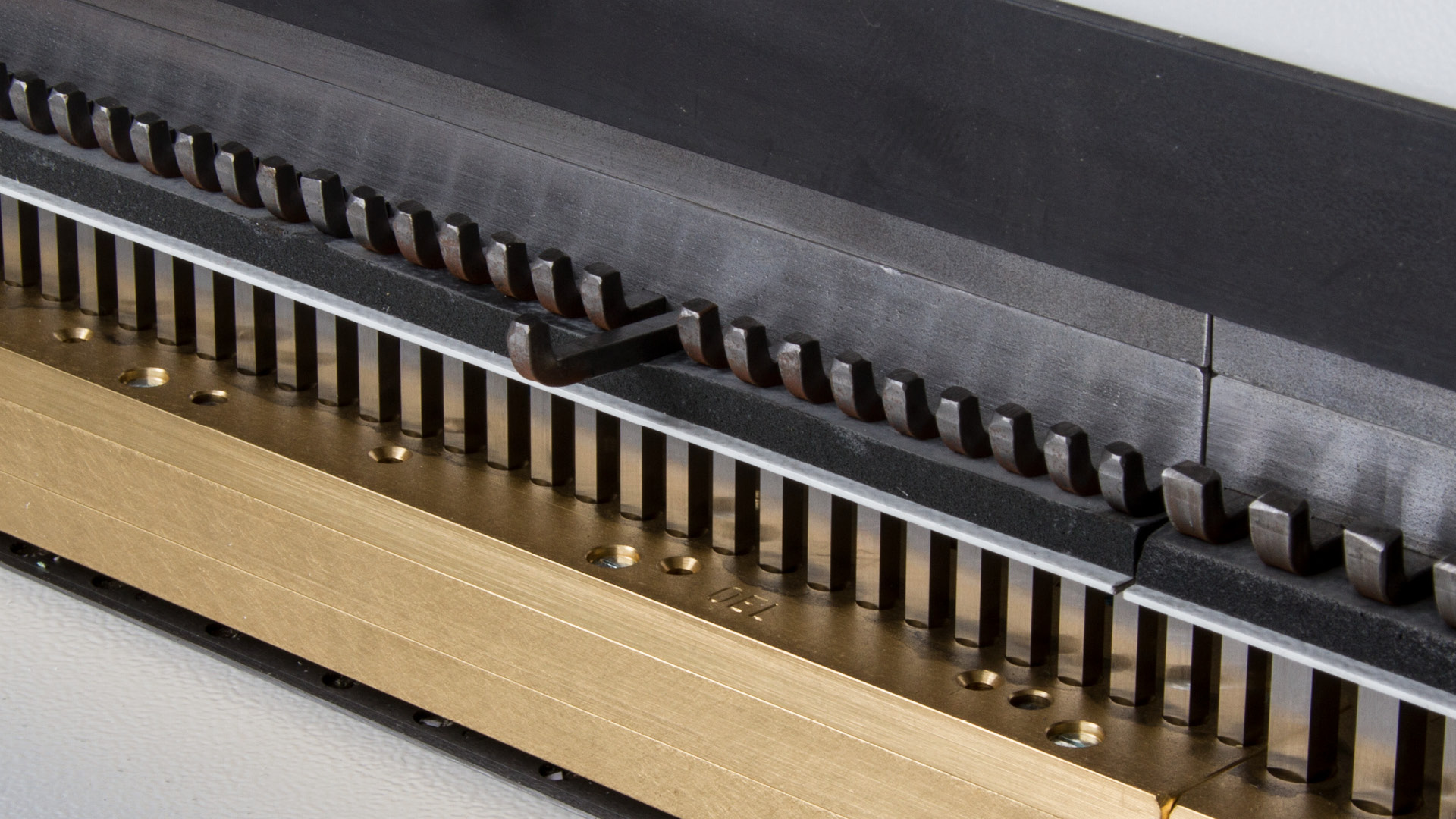

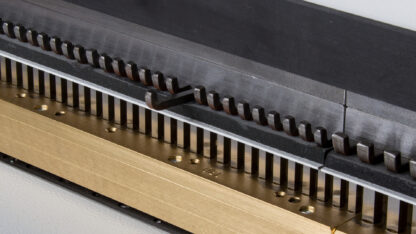

| Selectable punch pins (QSA): | yes (depending on die) |

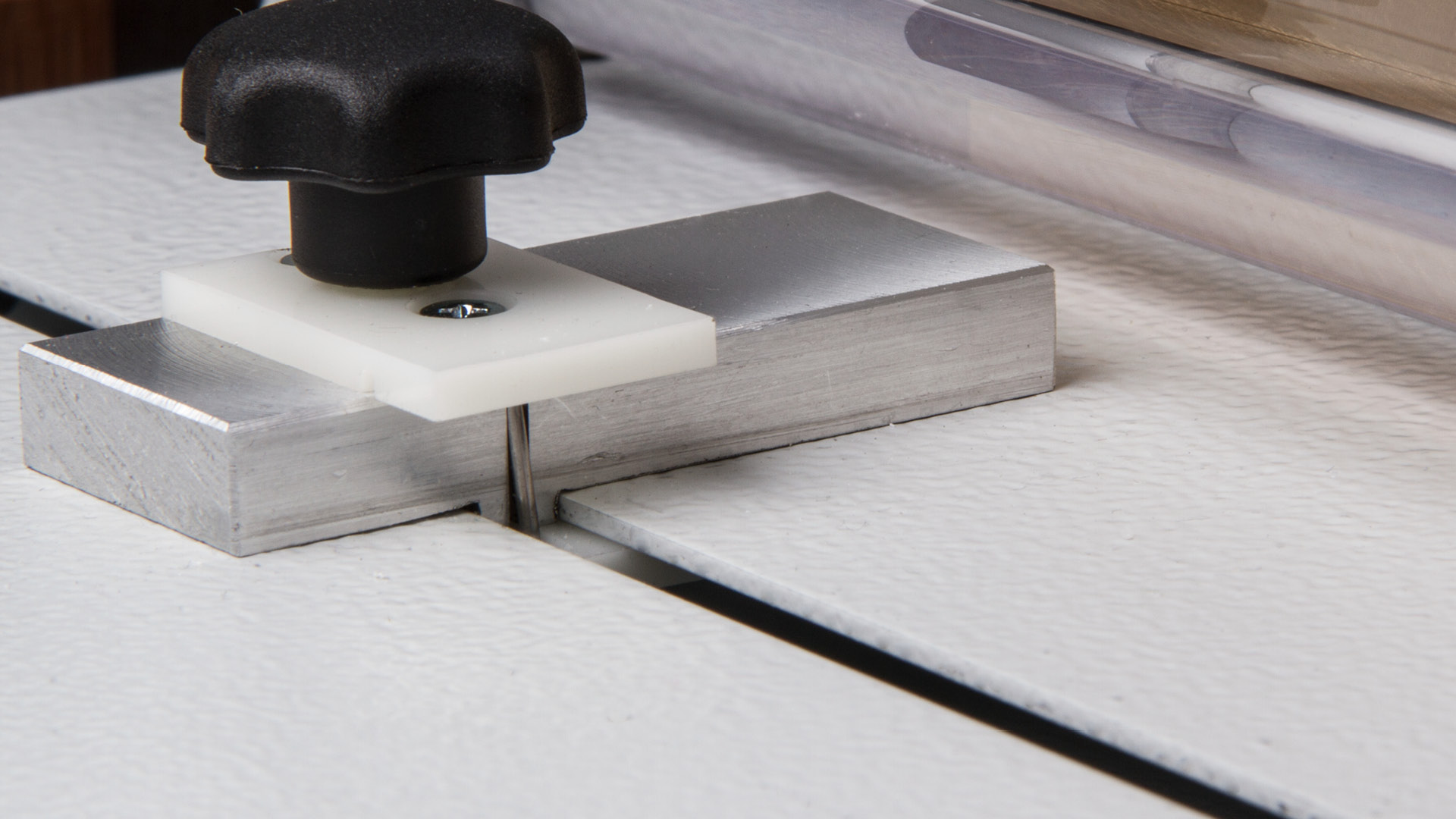

| Adjusting margin depth: | fixed margin depth |
| Multi-part punching dies: | yes (depending on die) |
| Bespoke dies: | yes (on request) |
| Mechanical cycles /h: | 2400 |
| Max. punching thickness: | 4,2 mm |
| Max. punched sheets p/h: | 46000 |
| Power requirement: | 400V, 3PH/N/PE, 50Hz, 3,5kW |
| Power requirement (alternativ): | on request |
| Product size (w x h x d): | 1950 x 1140 x 770 mm |
| Product weight: | 325,0 kg |
