RENZ
SRW 360
Precision in every format – the professional manual 3:1 wire comb binder.
Manual 3:1 wire comb binding machine with two-handle operation, QSA technology and 360 mm working width – ideal for binding reports, presentations, documents and calendars.

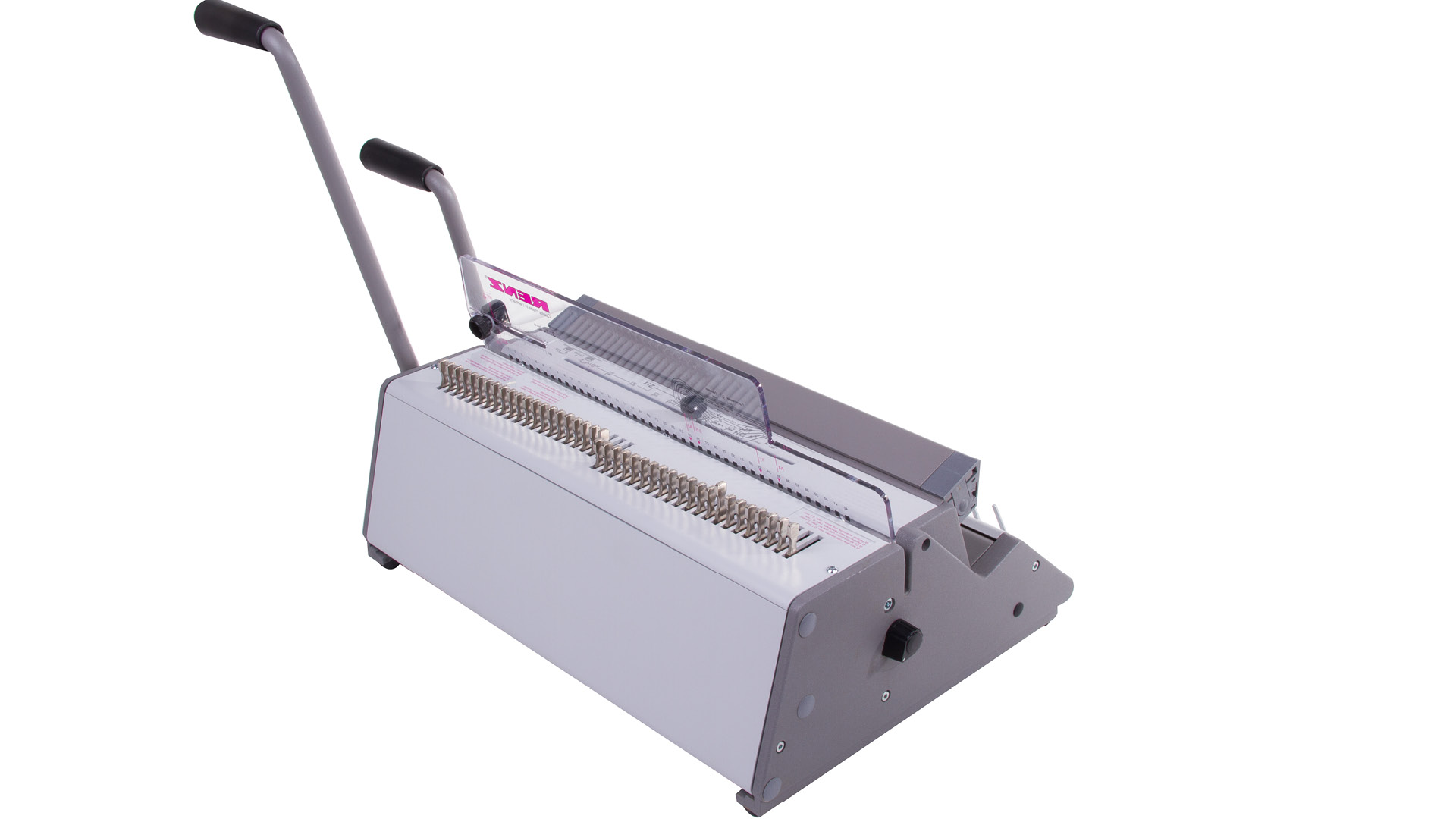

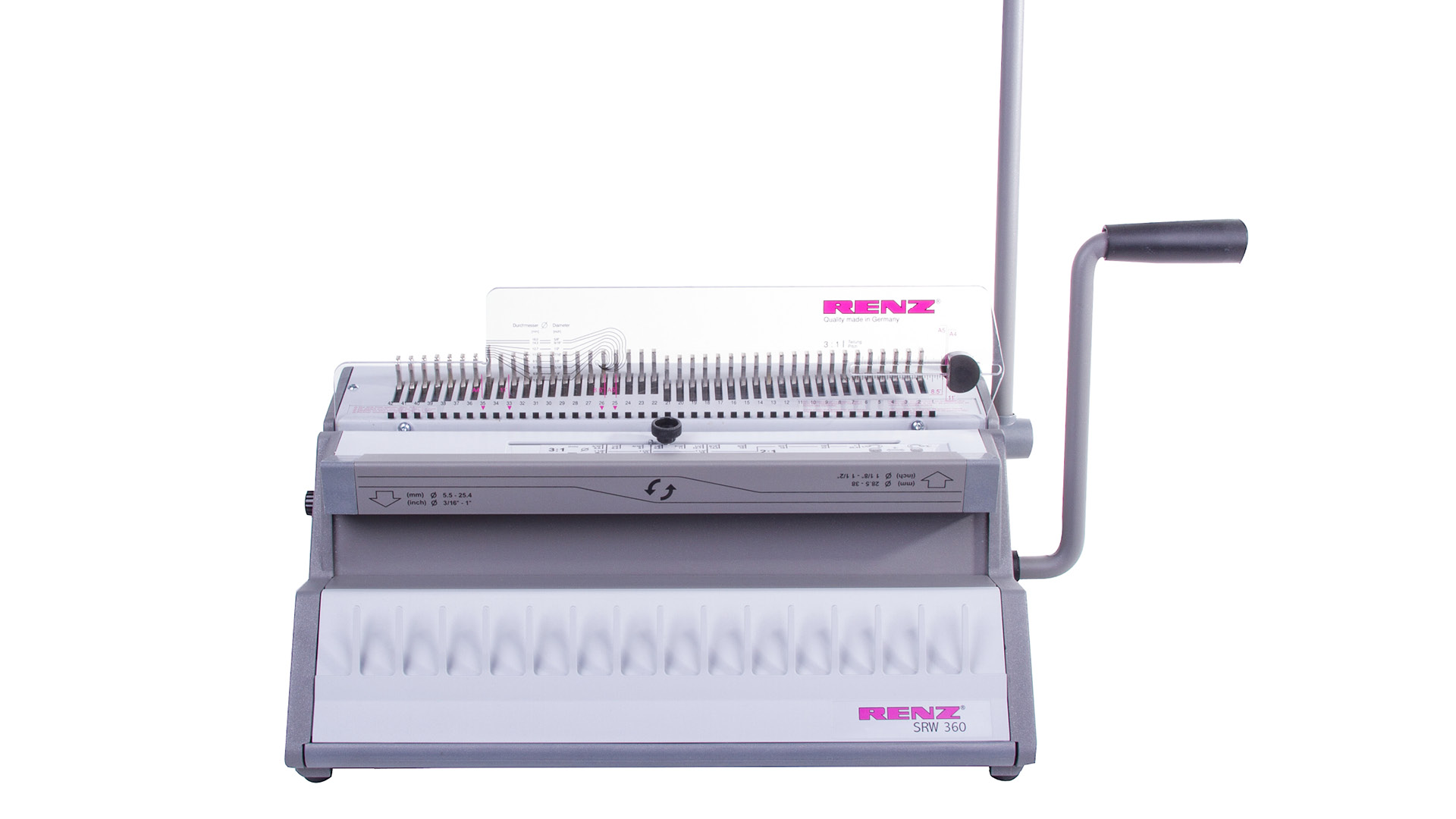

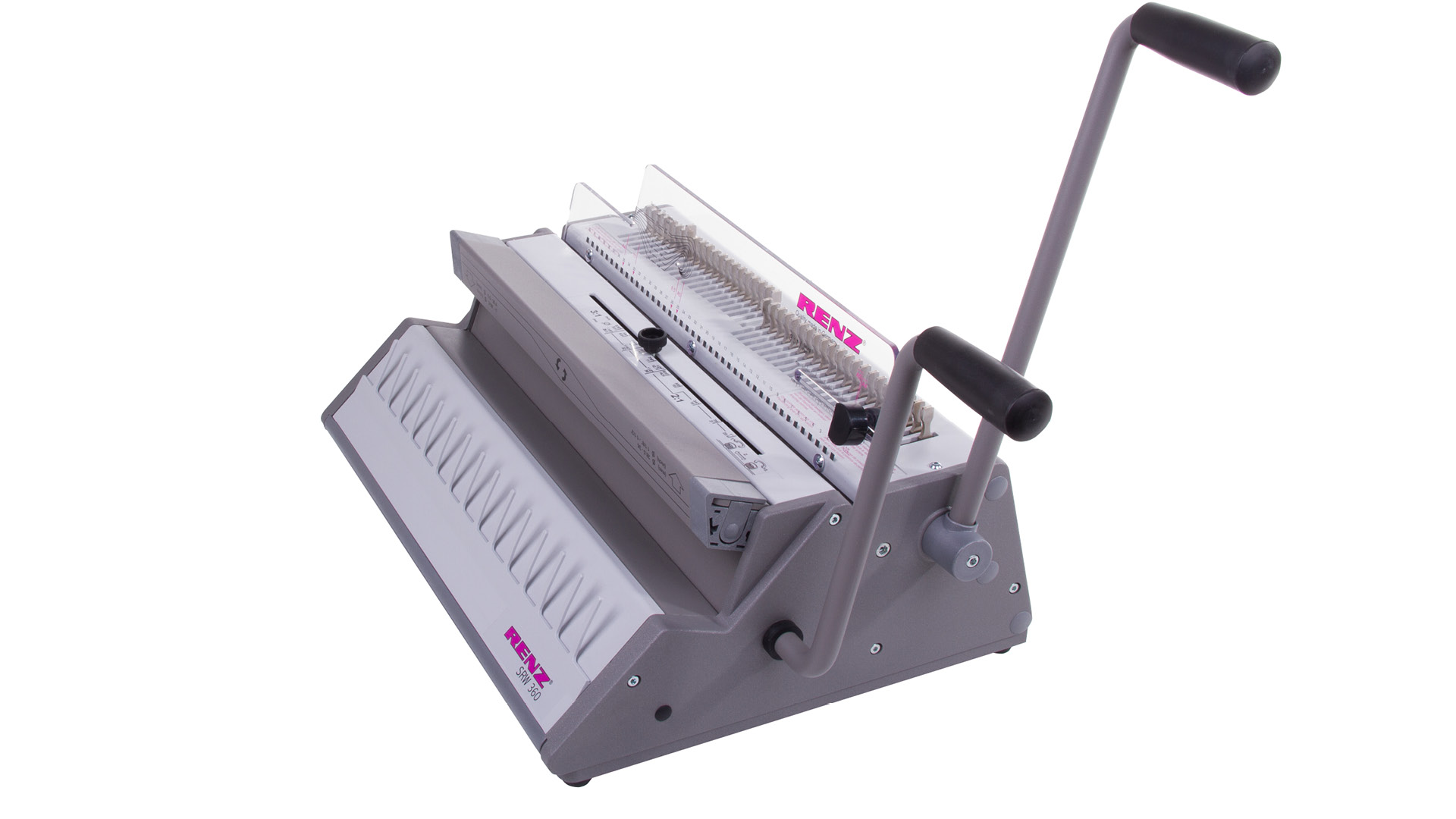

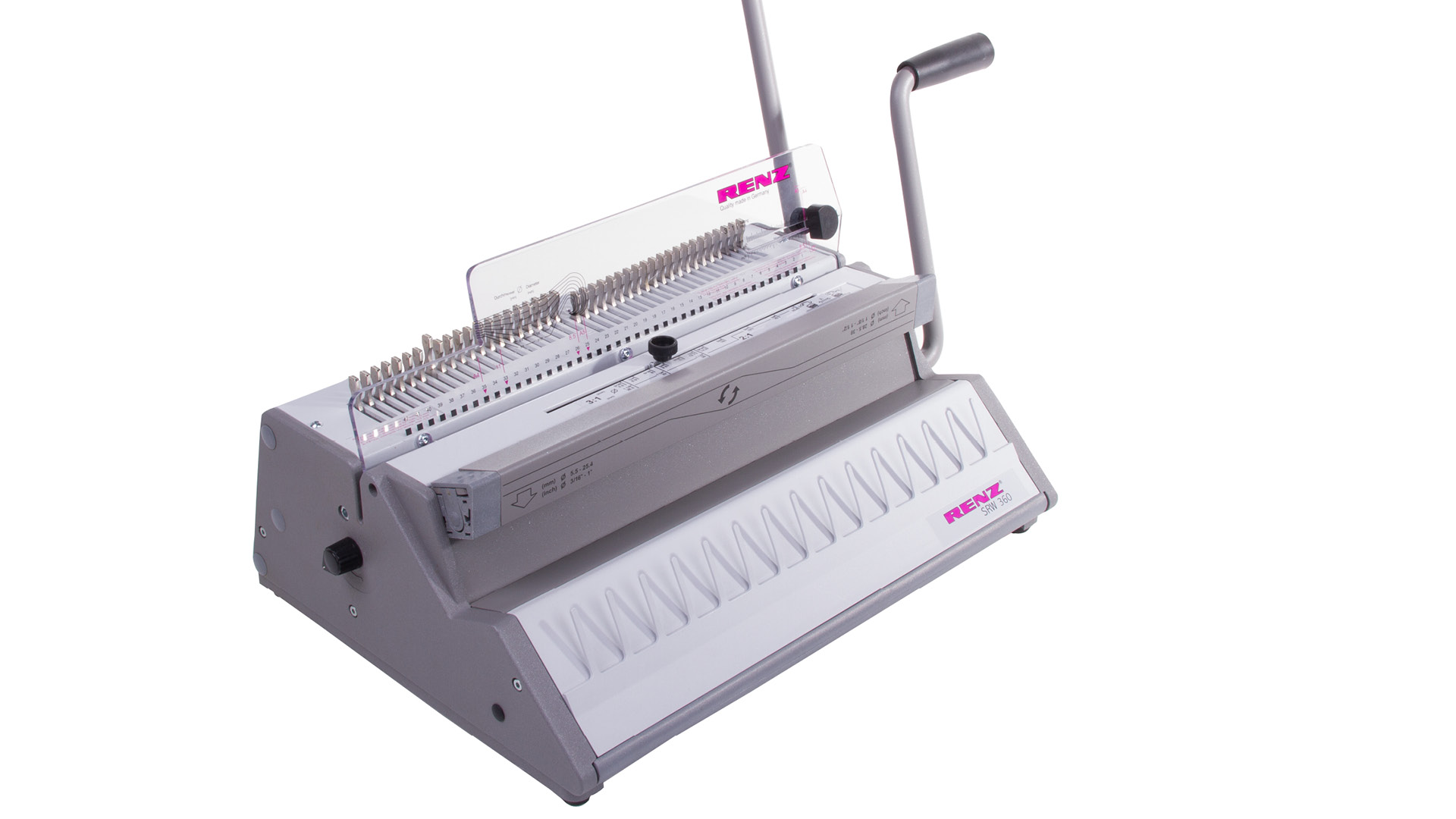

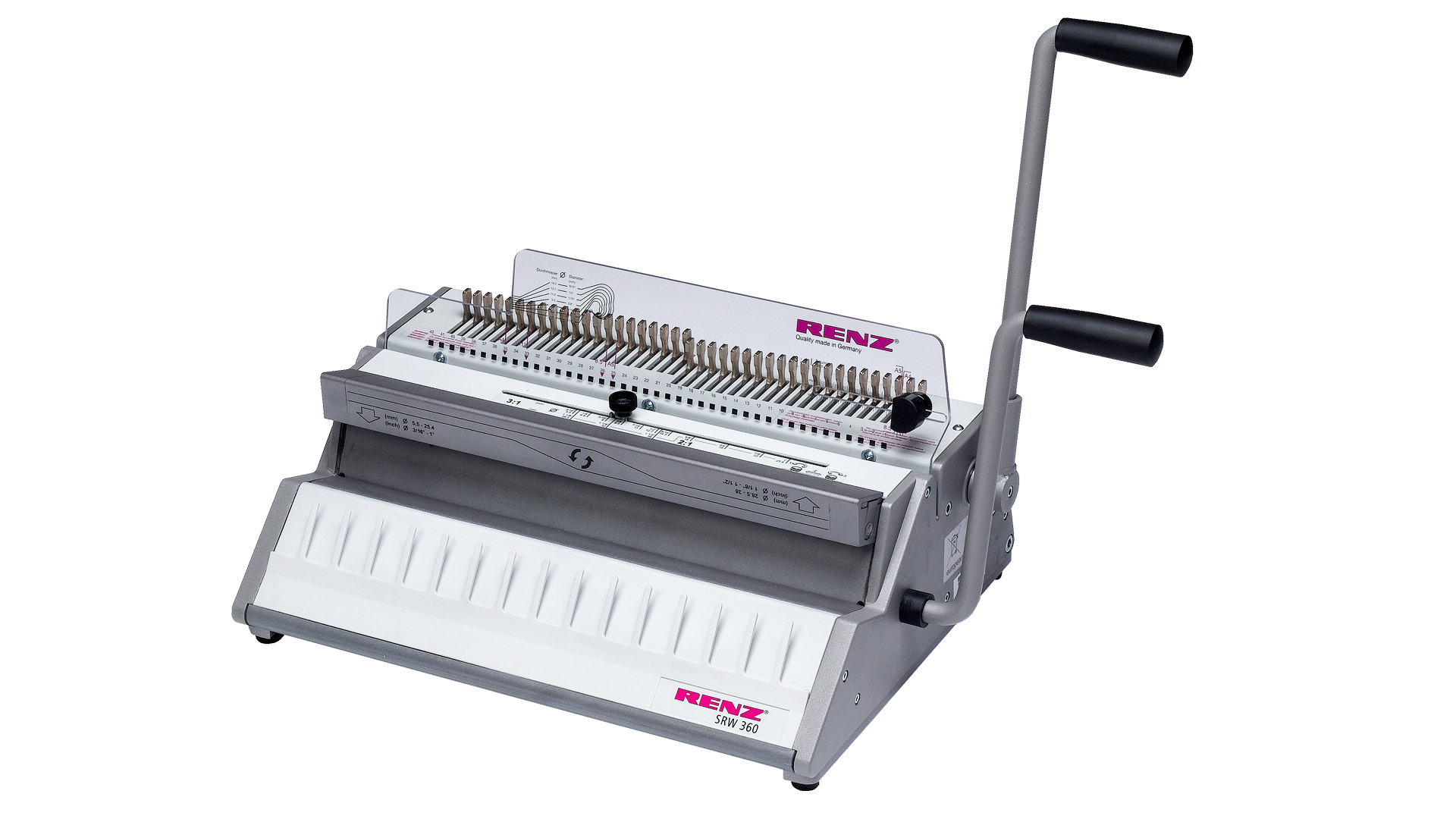

The RENZ SRW 360 is a manual 3:1 wire comb binding machine for punching and binding with wire combs up to 360 mm working width. Thanks to the open-ended punching and closing slot, oversized formats such as A3 can also be processed by punching and closing in two passes – ideal for reports, presentations, calendars and documents in small to medium runs. It punches up to 20 sheets per stroke and binds up to 135 sheets. With QSA technology, individual hardened punching pins can be quickly deactivated – ideal for flexible format changes to A5, A4 or custom sizes. The punching margin is adjustable from 2 to 4.5 mm, and the integrated measuring scale and parallel adjustment ensure accurate binding results. With a sturdy construction and optional electric upgrade, the SRW 360 is a future-proof solution for professional wire comb binding.
Features
- Binds up to 135 sheets (80 gsm)

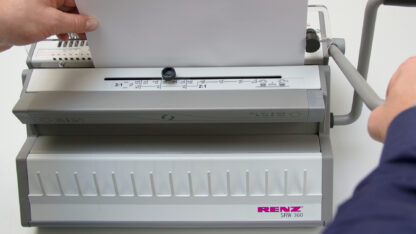

- Punching capacity: up to 20 sheets per stroke
- 360 mm working width – A3 supported via open punching and closing slot (punched and closed in two passes)
- 3:1 pitch (34 rings per A4)

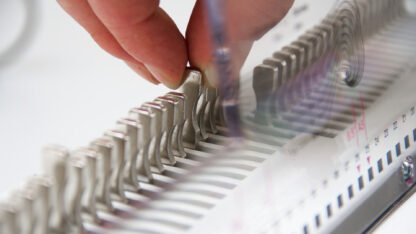

- QSA technology: quickly deactivate individual hardened punching pins – ideal for A4, A5 and custom sizes

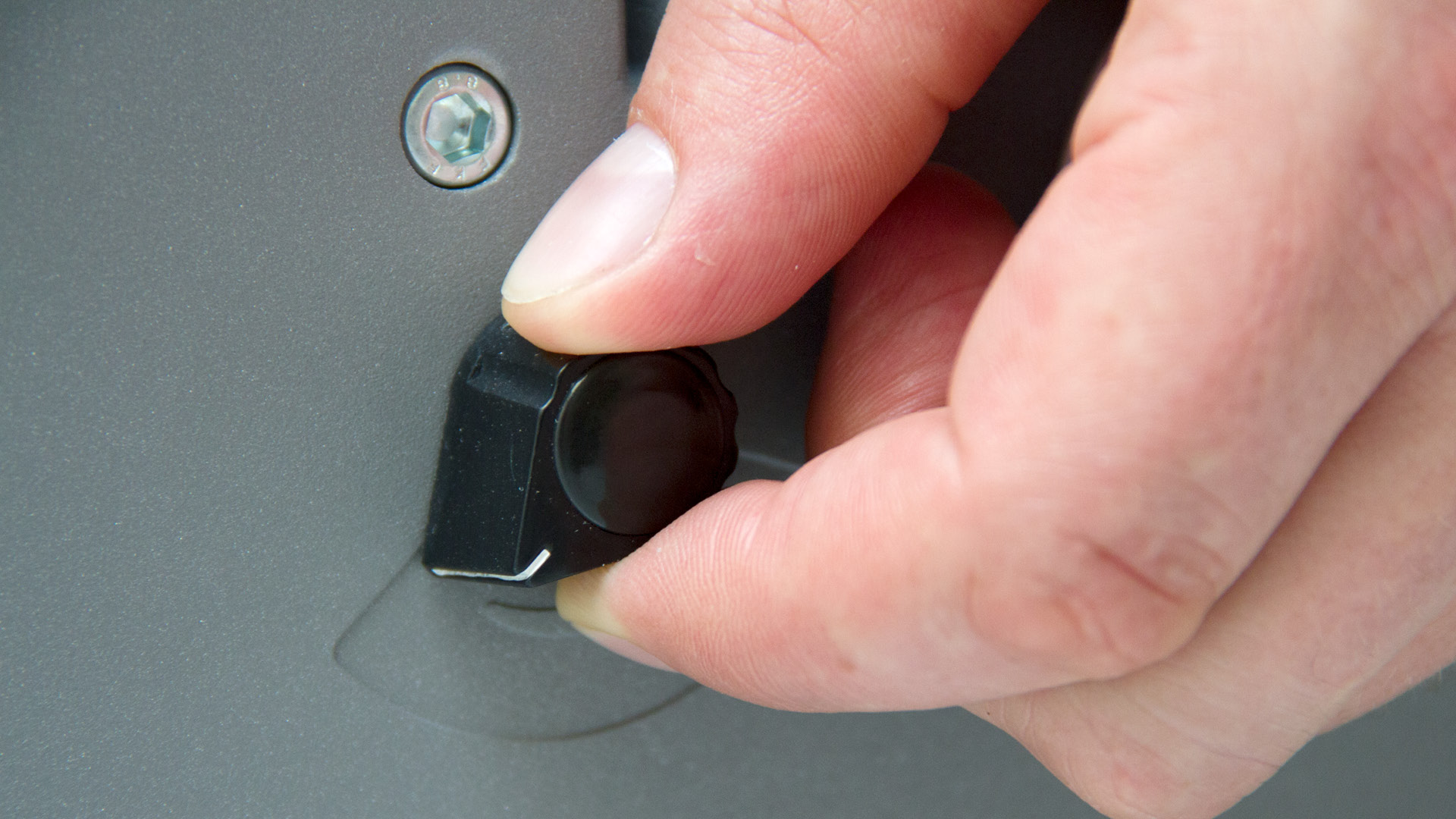

- Adjustable punching margin: 2–4.5 mm

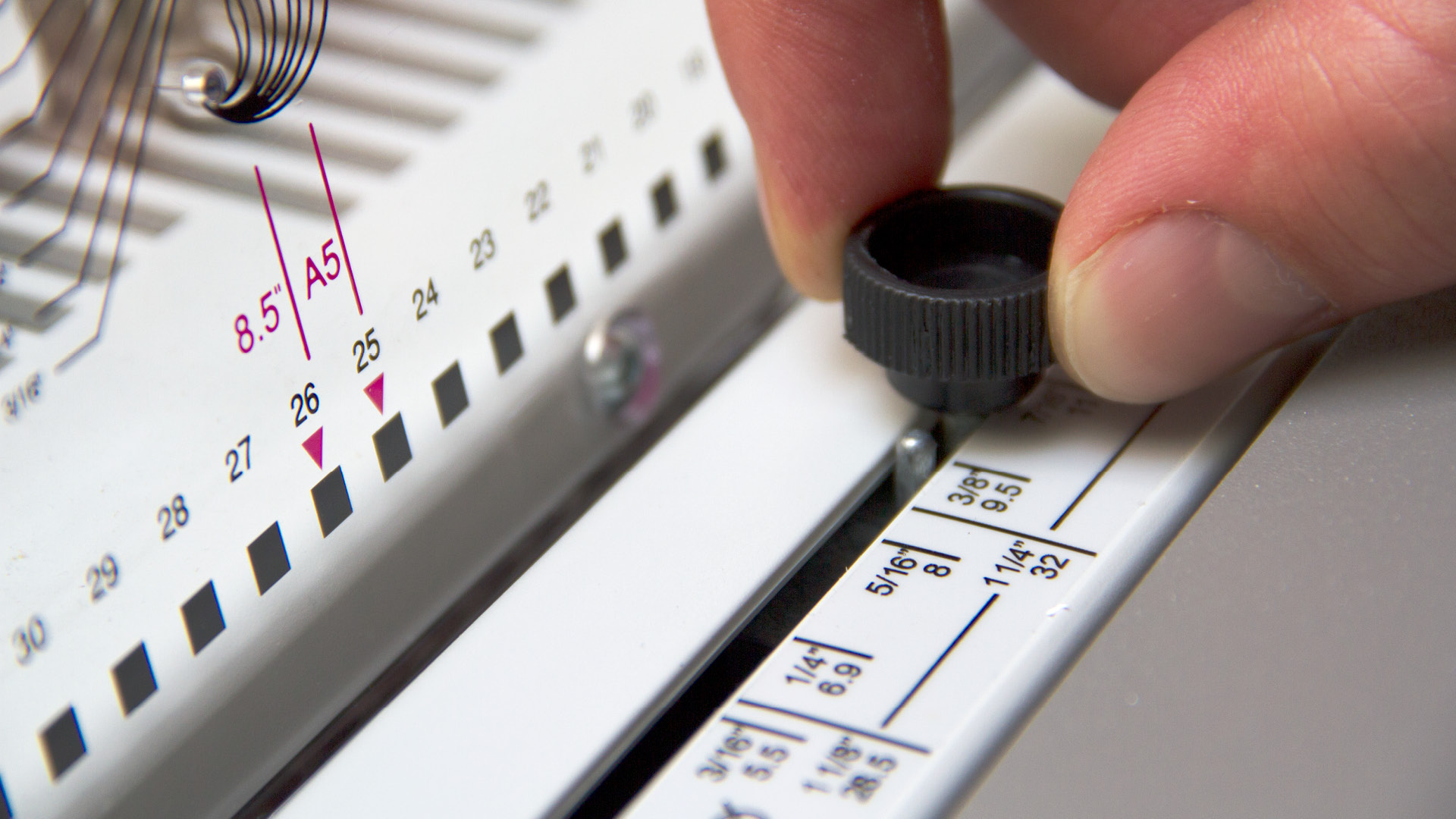

- Diameter setting for accurate closure
- Parallel adjustment for consistent results
- Optional electric motor upgrade (Comfort Plus)
- Durable metal construction with integrated measuring scale
Properties
| Product type: | Manual punching and binding machine |
|---|---|
| Field of application: | Wire comb binding, Calendar binding |
| Function: | manual punching and binding |
| Operation: | Punching lever, Binding lever |
| Setup / Settings: | manuell |
| Format change: | 0,2 min |
| Diameter change: | 0,1 min |
| Working width: | 360 mm |
| Min. format (w x l): | 10 x 50 mm |
| Max. format (w x l): | 360 x 500 mm |
| Pitch: | 3:1 |
| Hole pattern: | square hole |
| Punch pattern: | 4,0 x 4,0 mm |
| Selectable punch pins (QSA): | yes |
| Adjusting margin depth: | variable margin depth |
| Workable diameters: | Ø 1/4″ – 5/8″ (6,9 – 16,0 mm) |
| Max. binding thickness (mm): | 13,5 mm |
| Max. binding thickness (sheets, 70-80gsm): | 135 |
| Max. punching thickness: | 2,2 mm |
| Max. punched sheets p/h: | 12000 |
| Max. bound items /h: | 200 |
| Feeding calendar hangers (optional): | Manual single feeding |
| Product size (w x h x d): | 560 x 180 x 330 mm |
| Product weight: | 13,0 kg |
