Description
RENZ
WBS 360
Wire comb binding – modular and flexible with the RENZ WBS 360 closing unit.
Manual binding machine from the MBS series for wire binding combs from Ø 5.5-38 mm. Can be combined with DTP 340 M or as a stand-alone unit with MBS holder – efficient and compact.

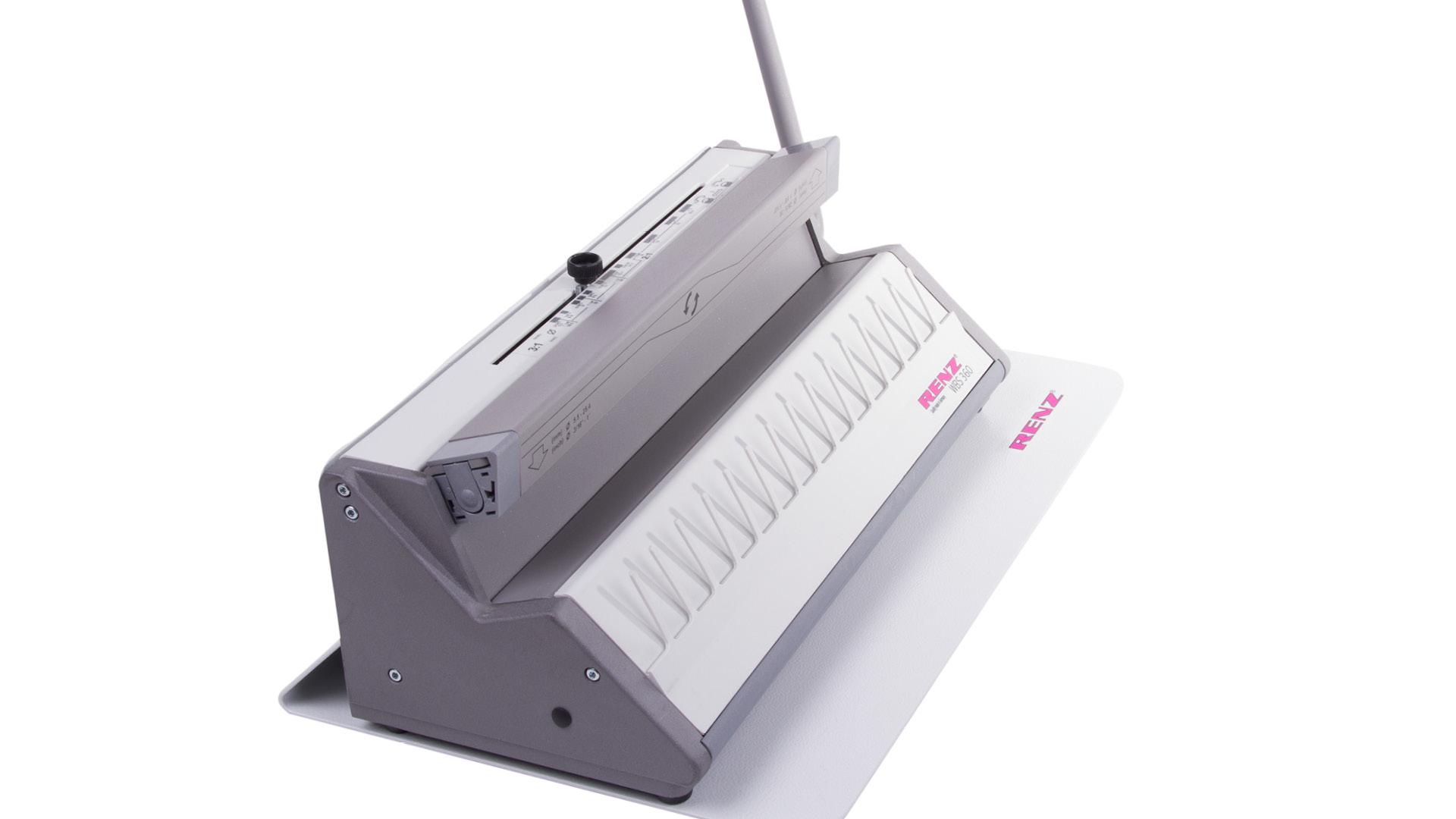

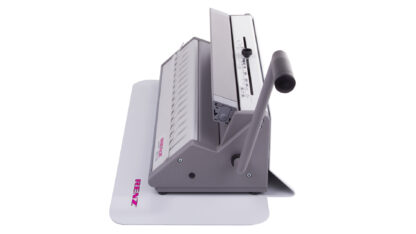

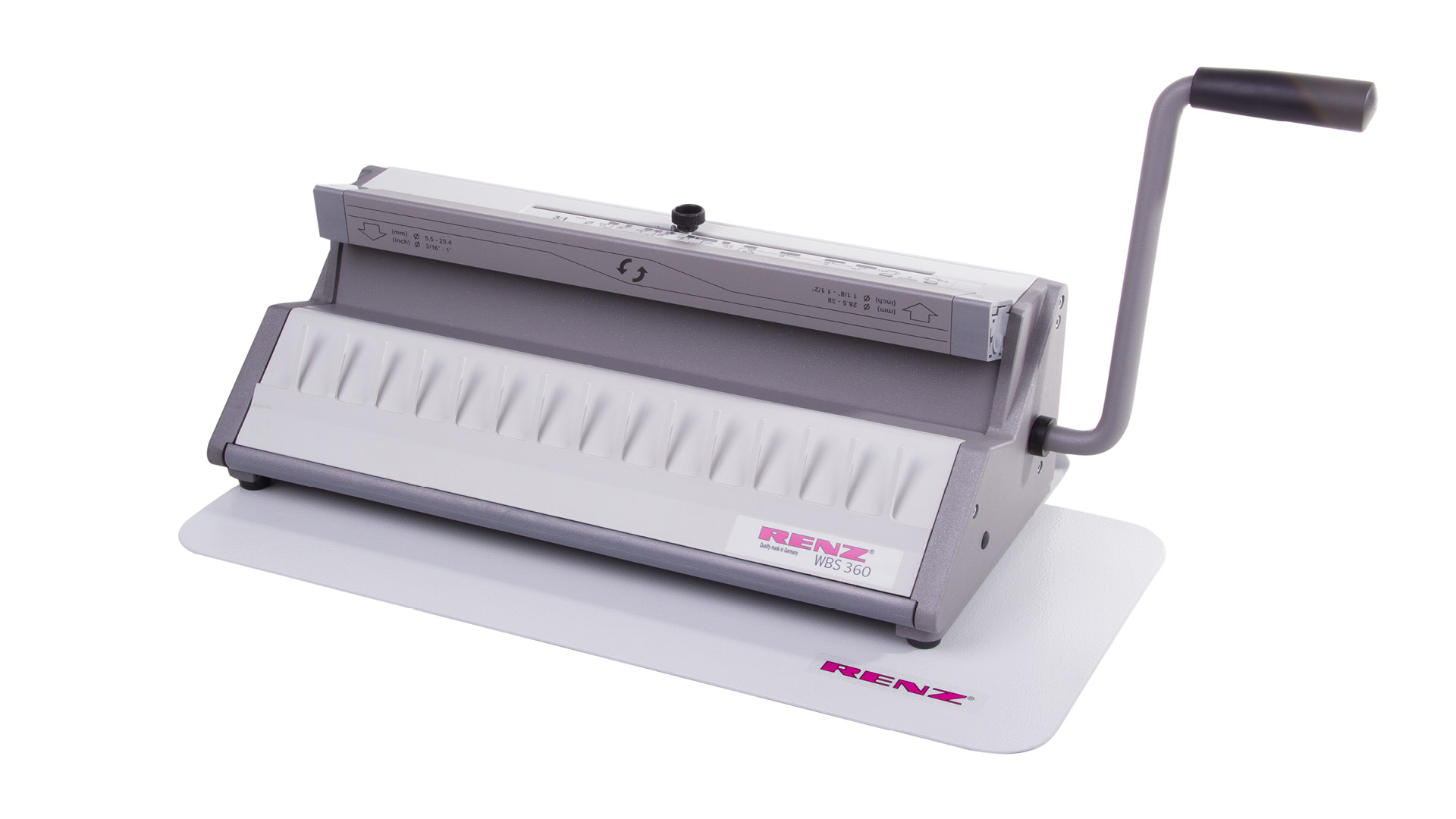

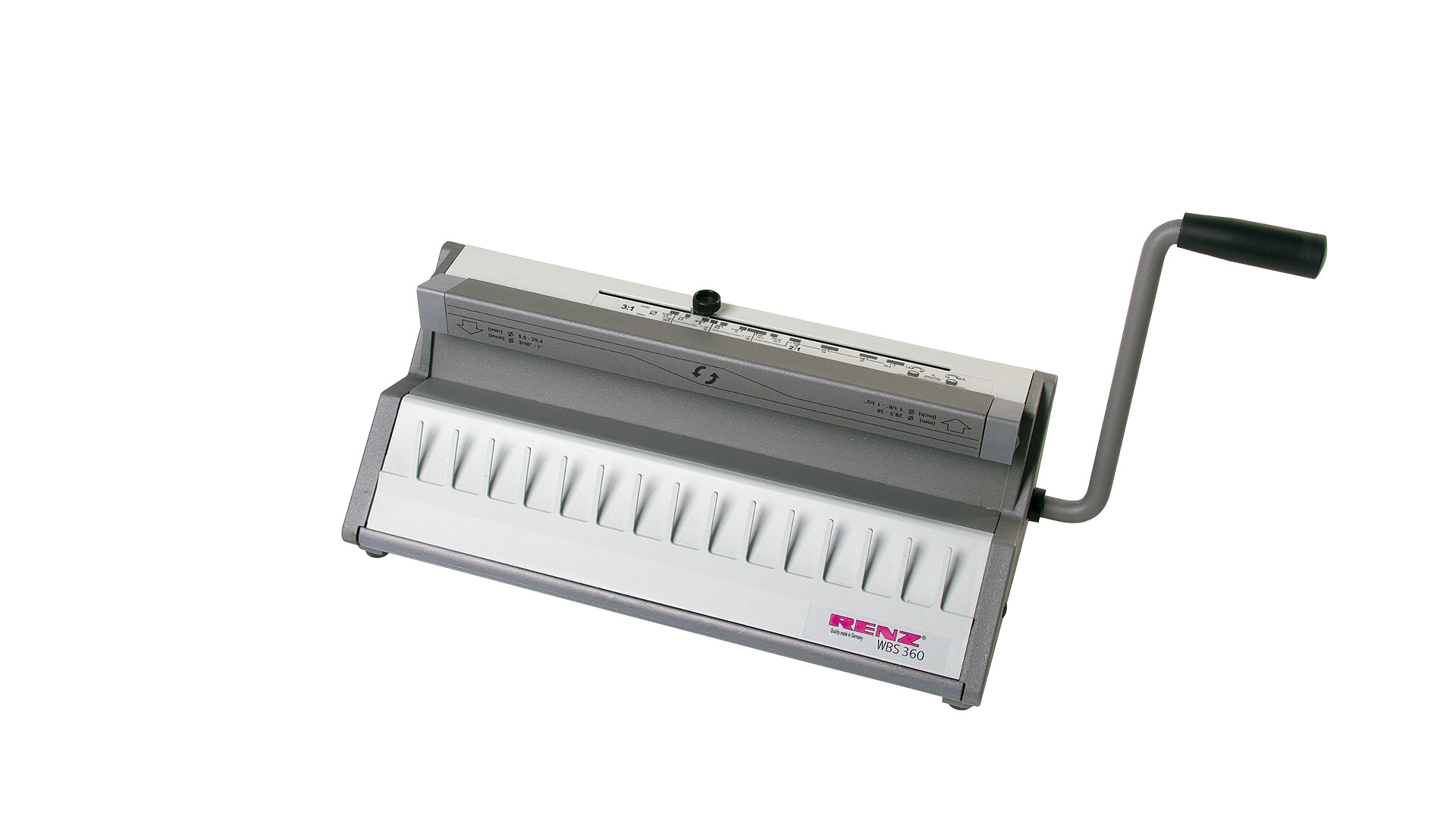

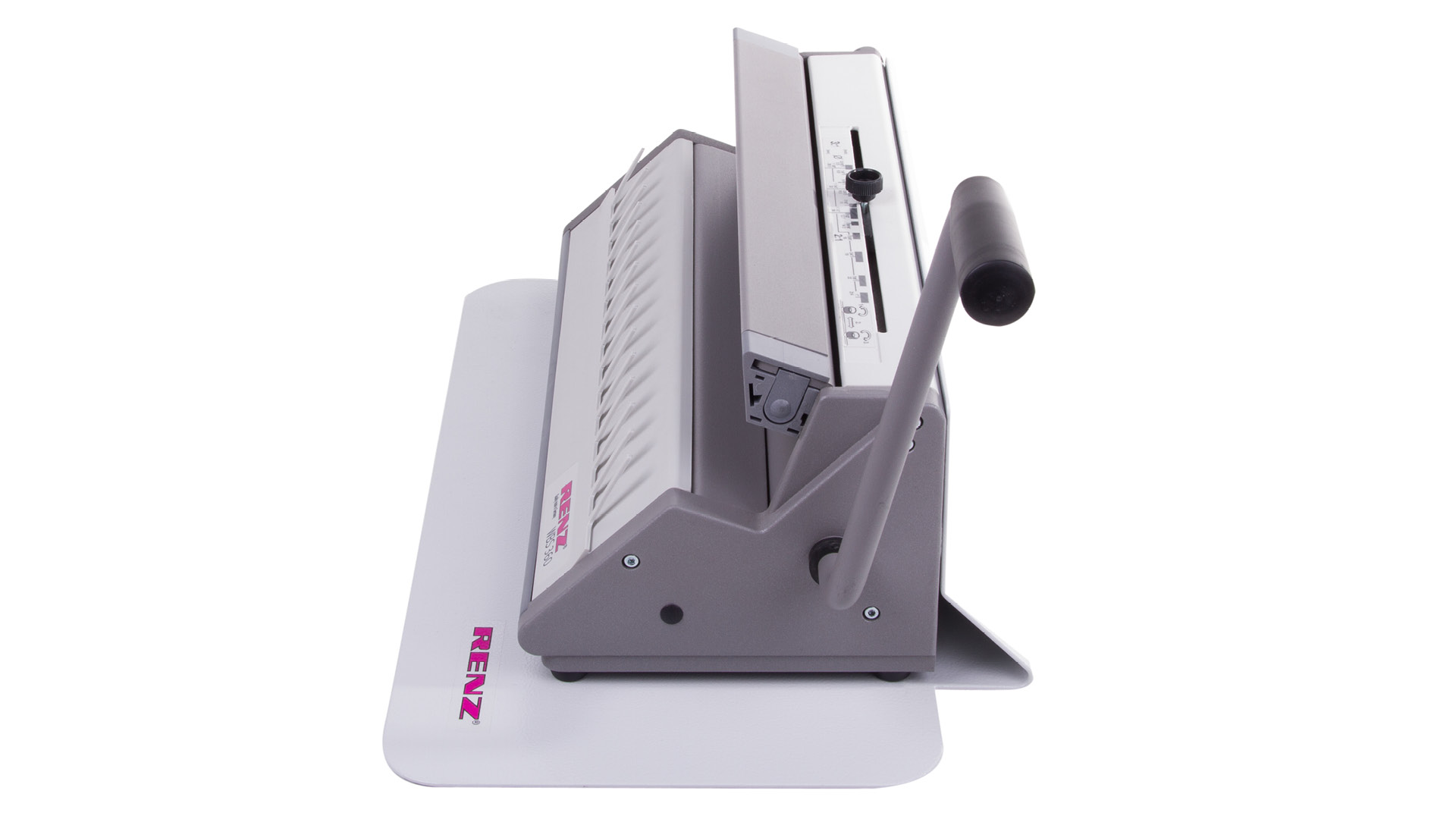

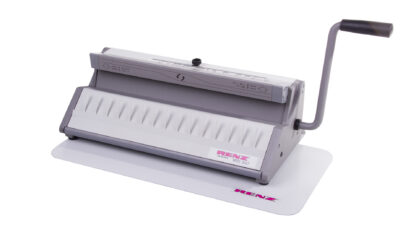

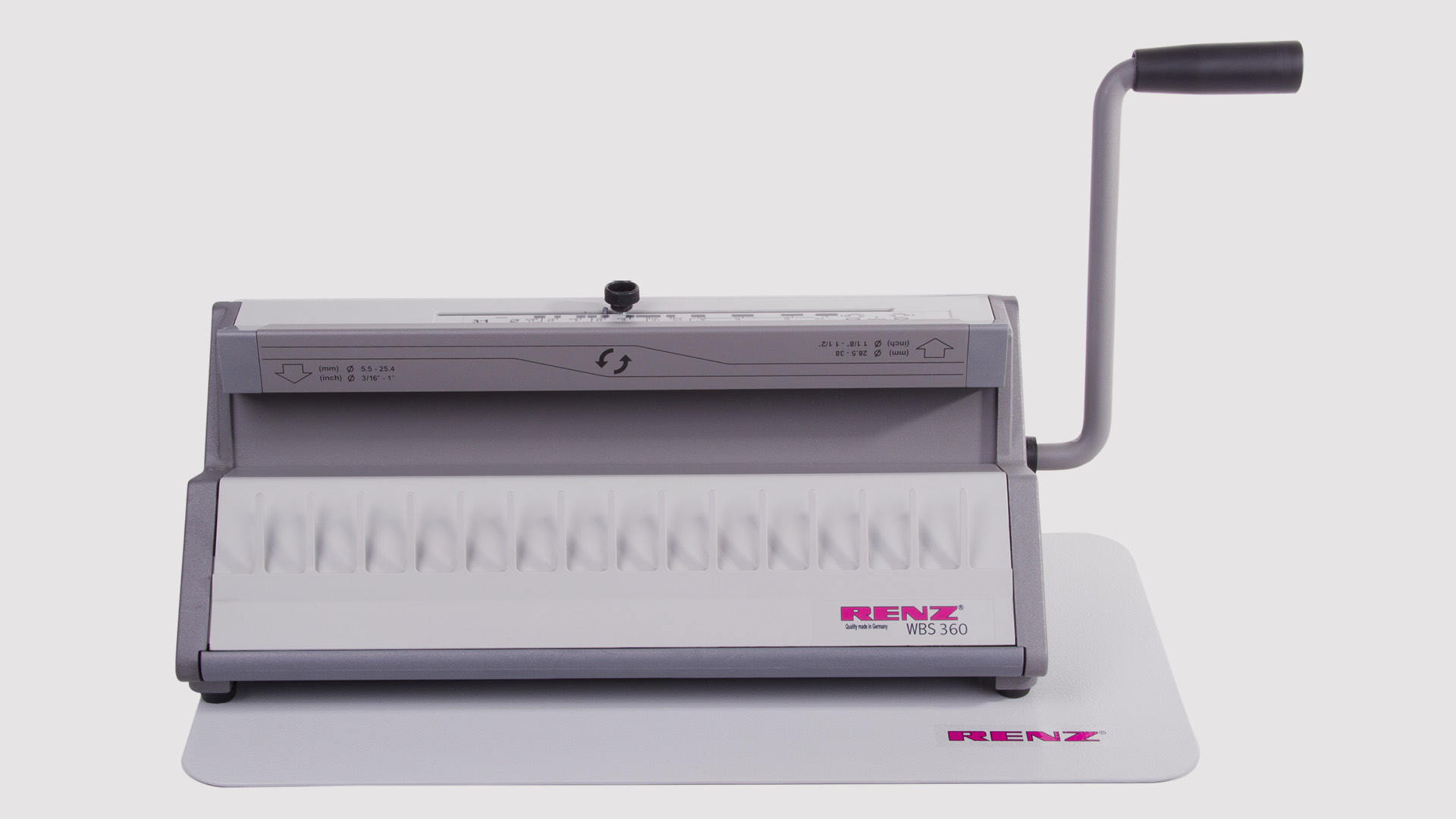

The RENZ WBS 360 is a manual closing unit of the MBS module series for binding wire comb bound products up to 360 mm in width. It handles wire diameters from 5.5 to 38 mm (3/16″–1 ½”) and supports both 3:1 and 2:1 pitch – independent of punching pattern. The advantages of the modular design make the WBS 360 highly versatile in use: It can be mounted directly onto the DTP 340 M desktop punching machine – forming a compact, space-saving punch-and-bind system – or used as a standalone closer with the MBS module holder, allowing punching and binding to be distributed across two workstations for increased productivity. Thanks to its small footprint, the WBS 360 is also ideal for mobile use. With quick diameter adjustment, durable construction and flexible operation, the WBS 360 is the perfect solution for professional environments like offices, copy shops or print finishing.
Features
- Part of the MBS module series

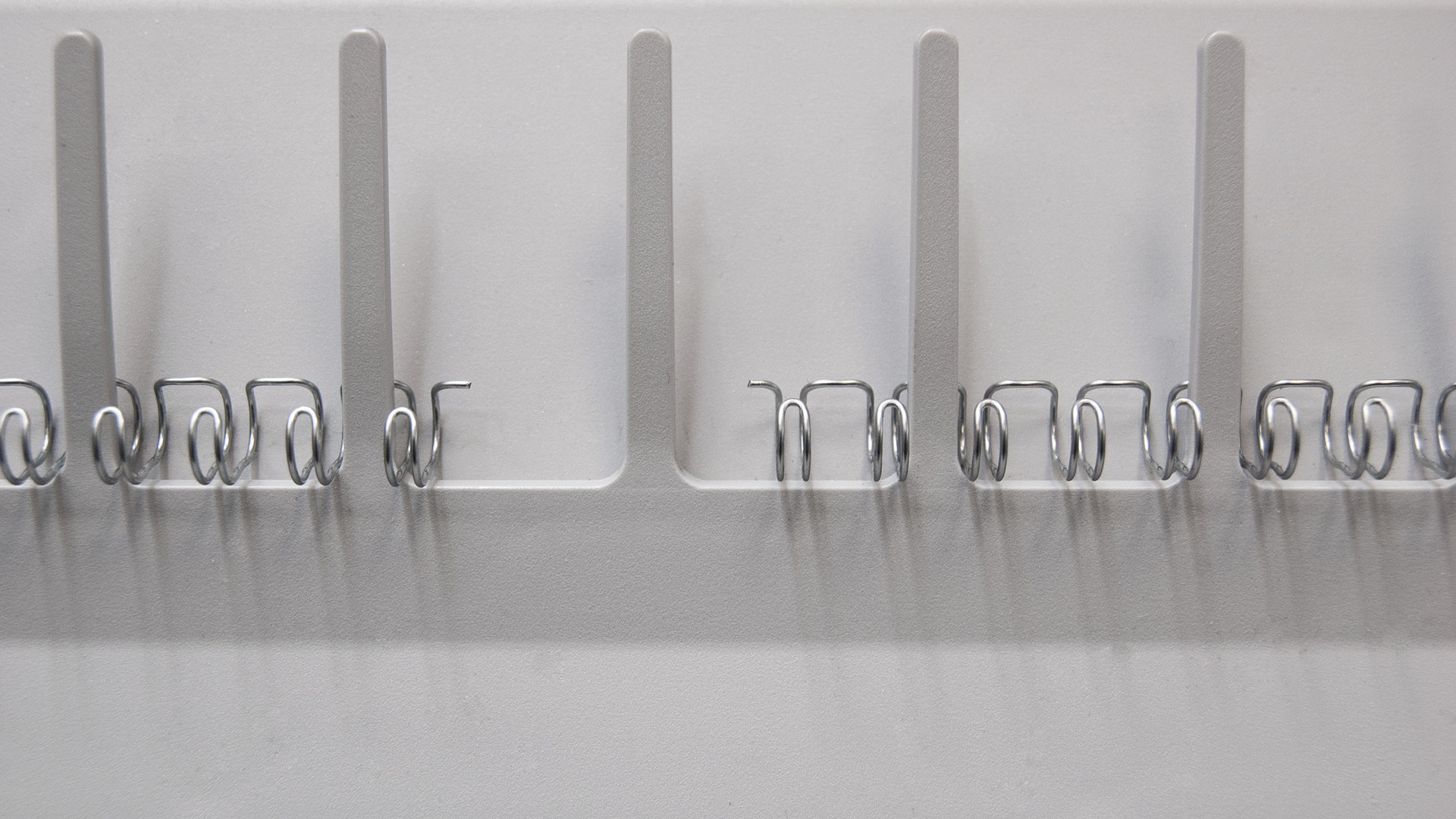

- For wire combs from Ø 5.5 – 38 mm (3/16″ – 1 1/2″)
- Pitch-independent (3:1 / 2:1)
- Working width: up to 360 mm

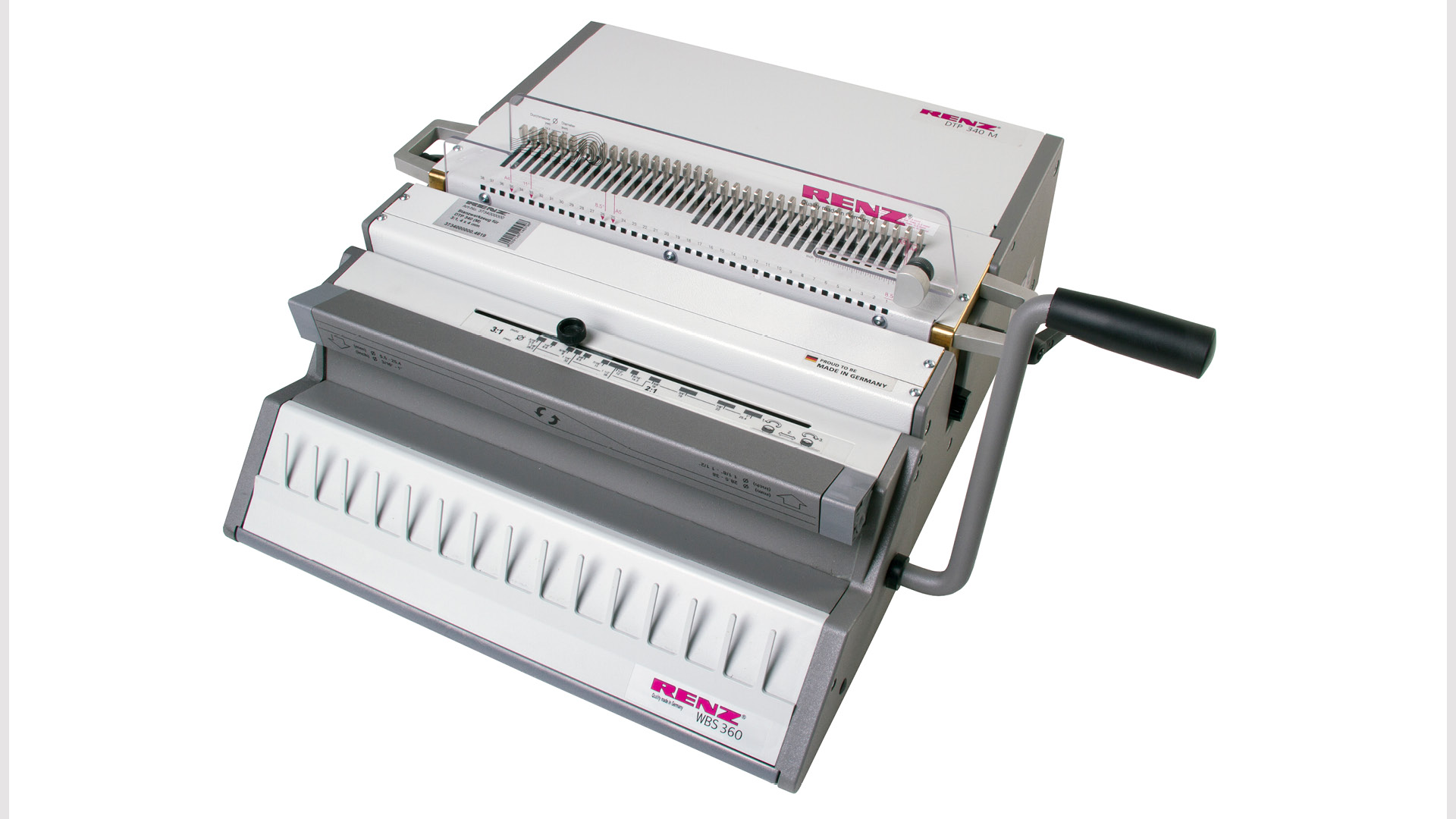

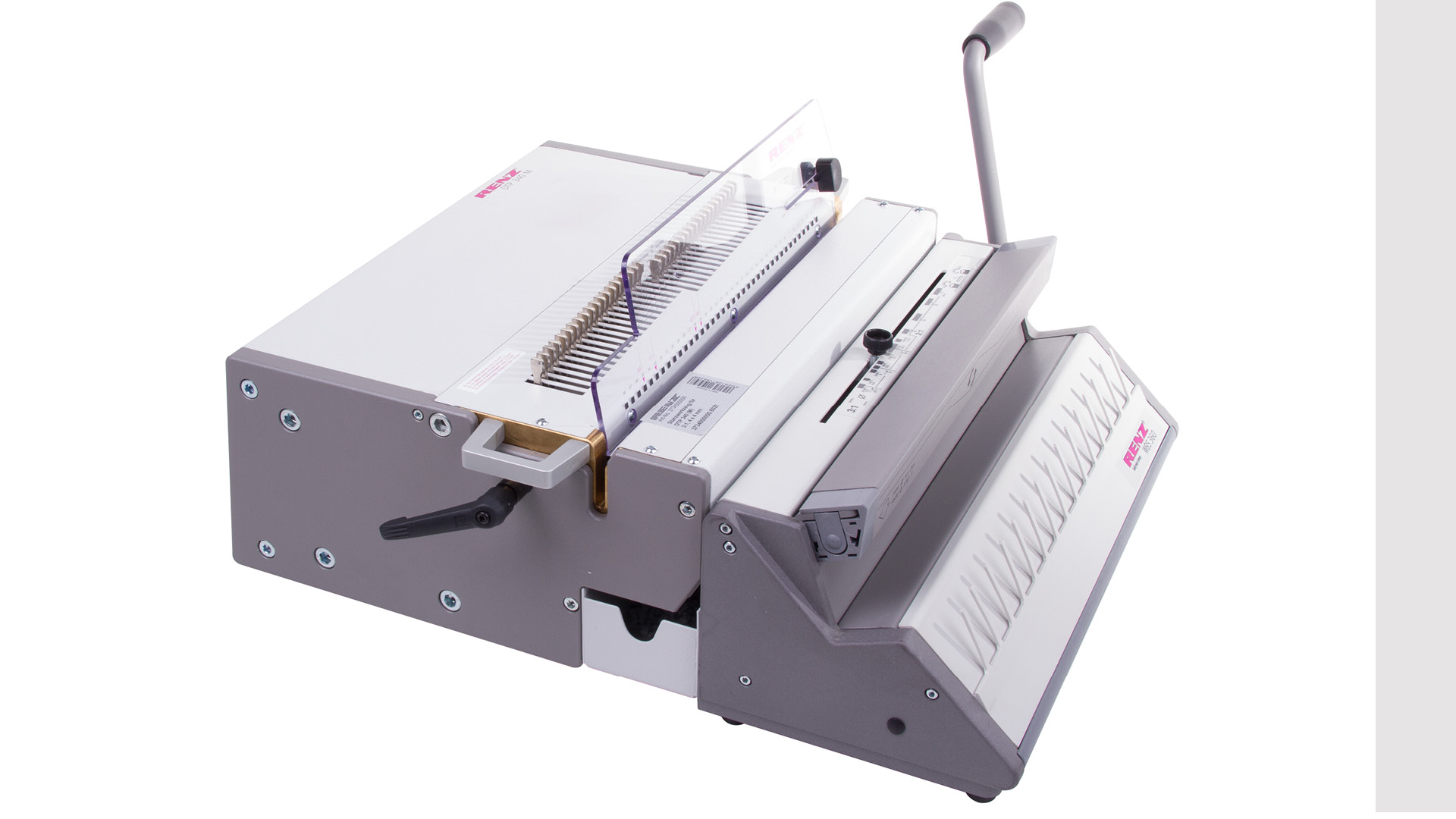

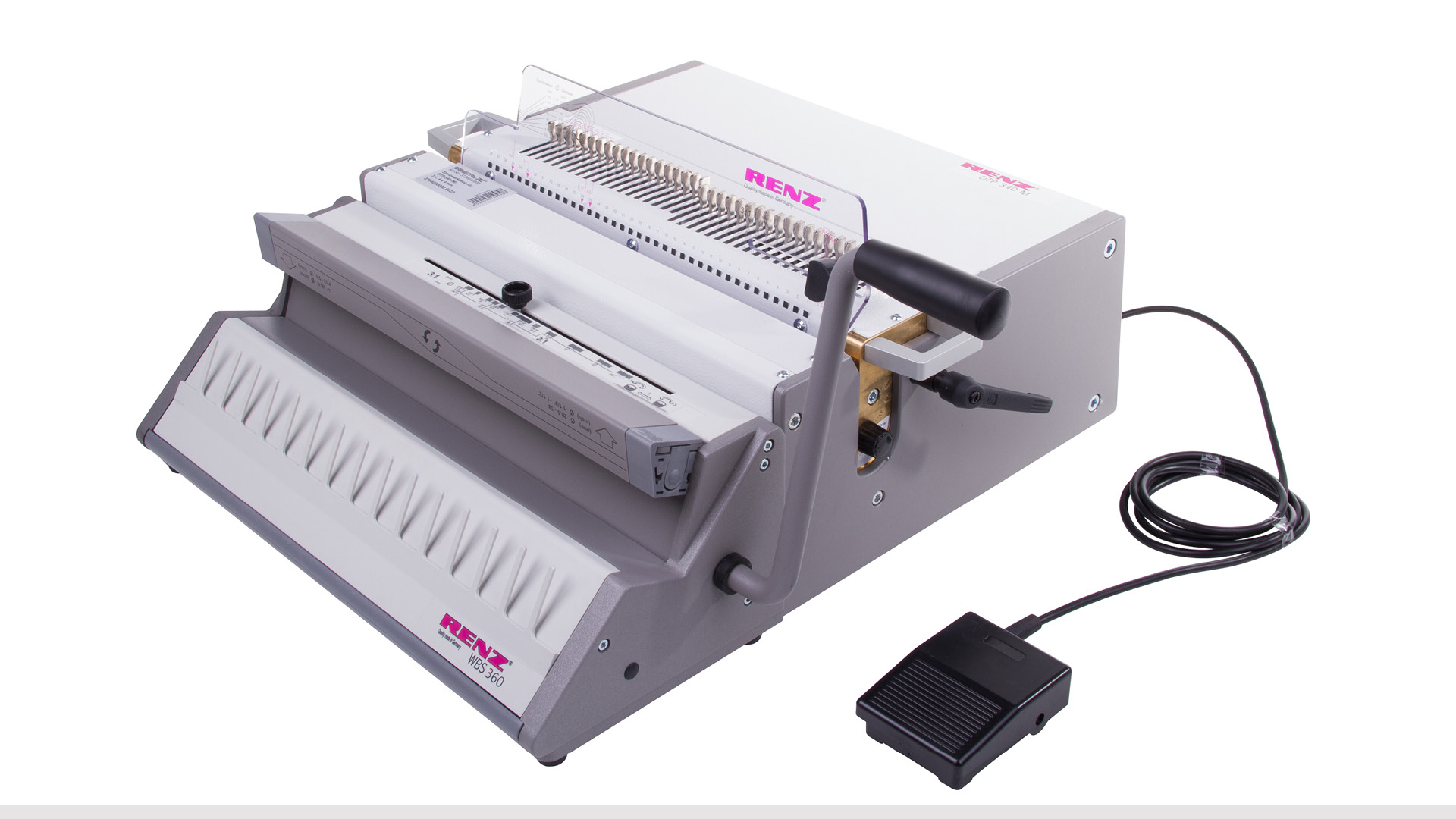

- Combine with DTP 340 M or use standalone with MBS module holder
- Parallel punching and binding at two stations
- Quick diameter adjustment
- Compact and mobile design
- Durable and robust – Made in Germany
| Product type: | Manual binding machine |
|---|---|
| Field of application: | Wire comb binding, Calendar binding |
| Function: | manual binding |
| Operation: | Binding lever |
| Setup / Settings: | manuell |
| Diameter change: | 0,2 min |
| Working width: | 360 mm |
| Min. format (w x l): | 10 x 65 mm |
| Max. format (w x l): | 360 x 600 mm |
| Pitch: | 3:1, 2:1 |
| Workable diameters: | Ø 1/4″ – 1 1/2″ (6,9 – 38,0 mm) |
| Max. binding thickness (mm): | 34,0 mm |
| Max. binding thickness (sheets, 70-80gsm): | 340 |
| Max. bound items /h: | 250 |
| Feeding calendar hangers (optional): | Manual single feeding |
| Product size (w x h x d): | 560 x 320 x 150 mm |
| Product weight: | 8,5 kg |
