Description
RENZ

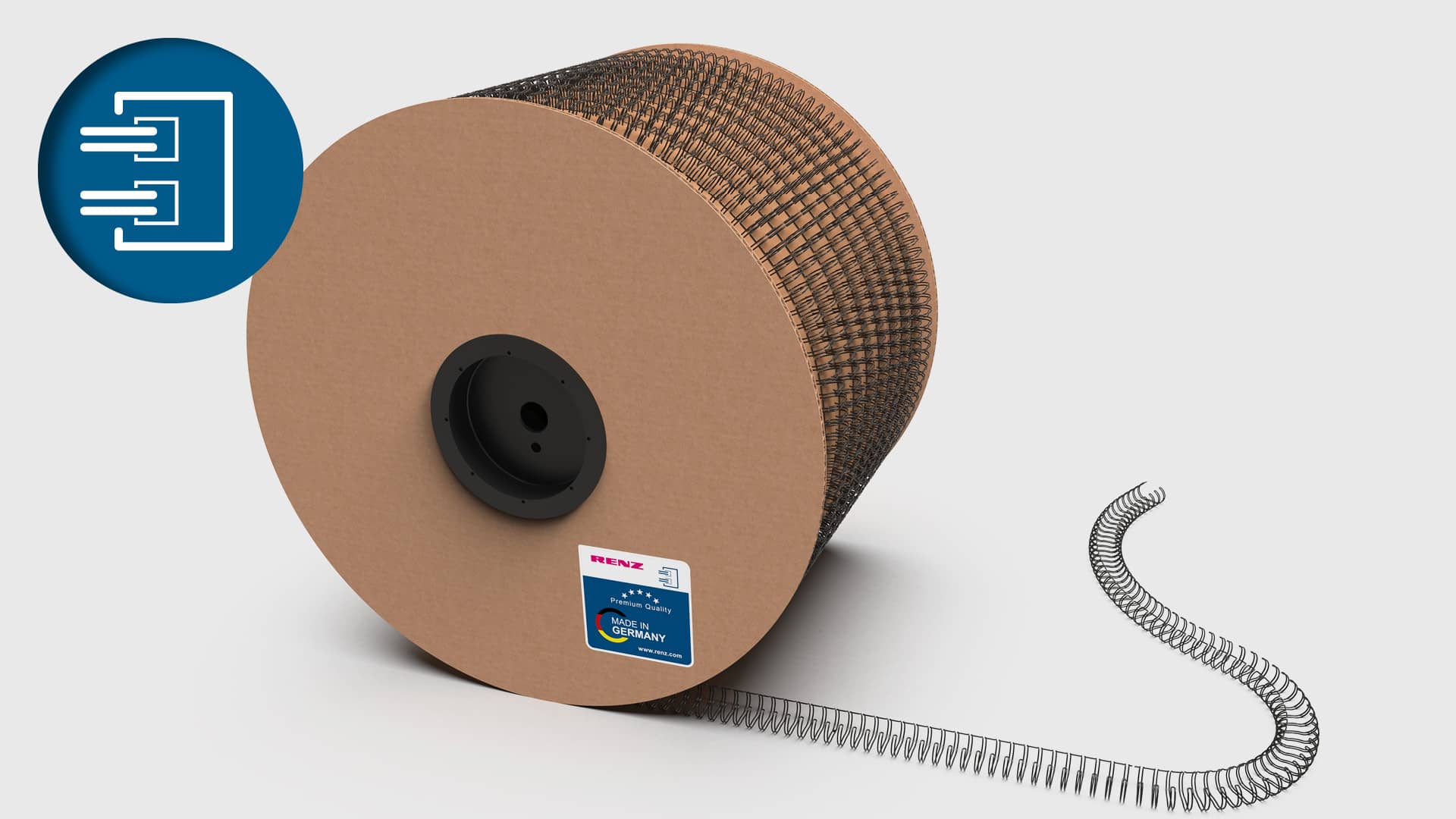

Wire comb binding spool, 3:1 pitch
Maximum productivity meets ultimate precision – with RENZ 3:1 and 2:1 wire comb binding spools for professional high-speed binding.
For industrial book, calendar and brochure production: Precisely manufactured RENZ 3:1 wire comb binding spools deliver premium quality and consistent results – even at high volumes. Designed for maximum efficiency on high-speed binding machines.
The Renz wire comb binding spools stand for outstanding quality and provide a stable and visually appealing solution for the professional binding of documents. They guarantee precise, reliable, and smooth binding in high-speed production. Ideal for calendars, photo books, brochures, and much more. Our wire comb binding spools are manufactured to the highest quality according to German standards. Quality Made in Germany.
Features
- Ideal for industrial production
- Specifically designed for use in automated high-speed binding machines
- Precisely manufactured wire combs ensure consistent binding that meets the highest quality standards
- The spools enable uninterrupted production, reduce downtime, and increase efficiency
- Bound documents can be fully opened and laid flat
- 3:1 pitch: for documents up to approx. 13.5 mm (around 135 sheets, 80 gsm paper)
- 2:1 pitch: for documents up to approx. 28 mm (around 280 sheets, 80 gsm paper)
- Ideal for calendars, notebooks, and technical documentation
- Wire comb binding remains stable even under heavy use and keeps pages securely in place
- Available in various wire sizes and colours, suitable for a wide range of applications
- Compatible with all common automated binding systems that use wire comb binding spools

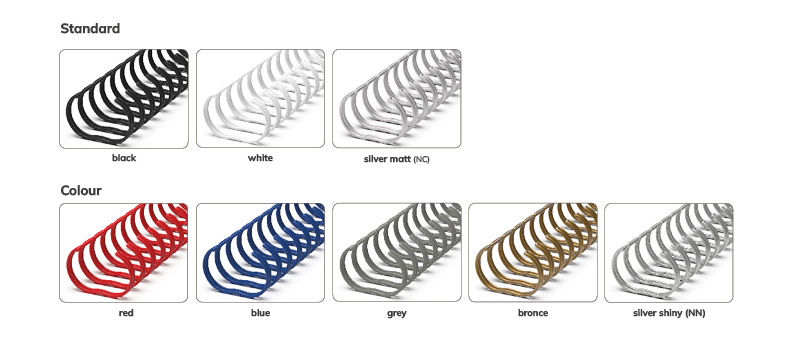

Colors
other colors on request

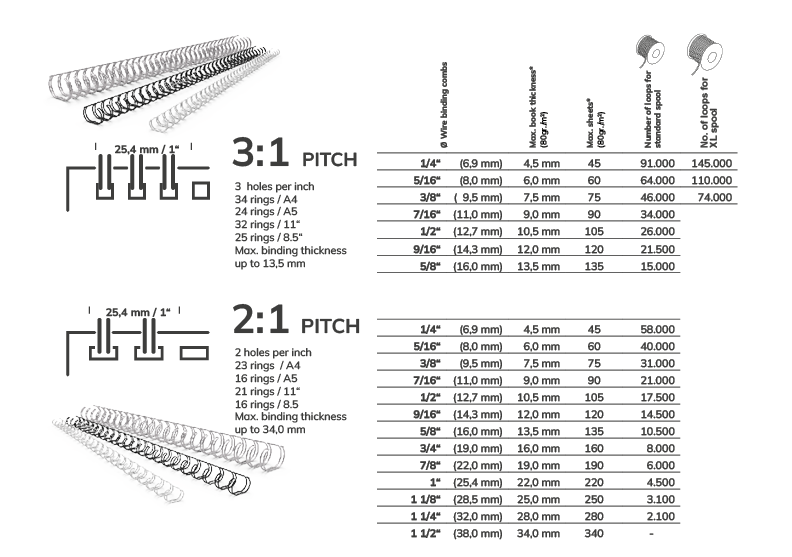

Available wire comb binding diameters

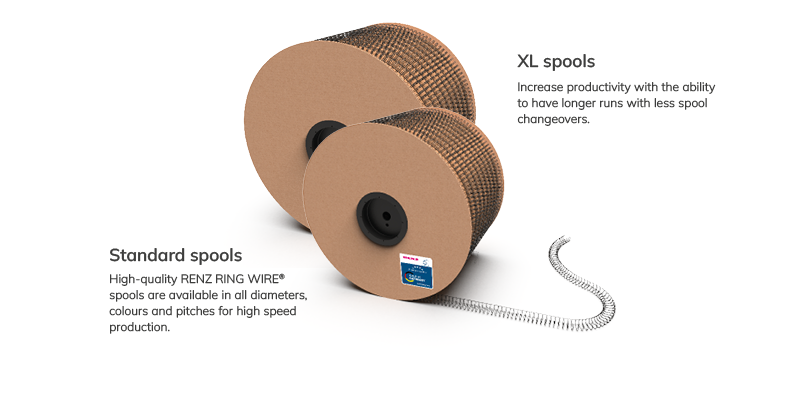

Standard / XL spools
3:1 or 2:1 pitch?
Differences and selection criteria.
A key feature of wire comb binding is the pitch, which defines the distance and number of holes per inch. The two most common pitches are 2:1 and 3:1, each of which has specific characteristics and areas of application.
The main difference between the two pitches is in the binding capacity and the optical effect. The 3:1 pitch offers a finer, more aesthetically pleasing bind for thinner binding thicknesses, while the 2:1 pitch was developed for thicker book thicknesses and ensures a more robust bind. Both the number of pages and the desired visual impression should therefore be taken into account when choosing the appropriate pitch. To summarise, the choice between 2:1 and 3:1 for wire comb binding depends on the binding thickness of the document and the aesthetic requirements. With a paper weight of 70/80 g/m², up to a maximum of 135 sheets can be bound with the 3:1 pitch and up to 340 sheets with the 2:1 pitch. Both pitches offer the advantages of wire comb binding, including the possibility of complete 360° page turns and the flat position of the pages without any offset on the table.
