Description
RENZ
Wire|Go 3:1
Reliable and robust – the solid entry-level machine for 3:1 wire comb binding.
Manual 3:1 wire comb binding machine for punching and binding with wire combs in A4/A5 – up to 135 sheets, 300 mm width and ergonomic two-handle operation.

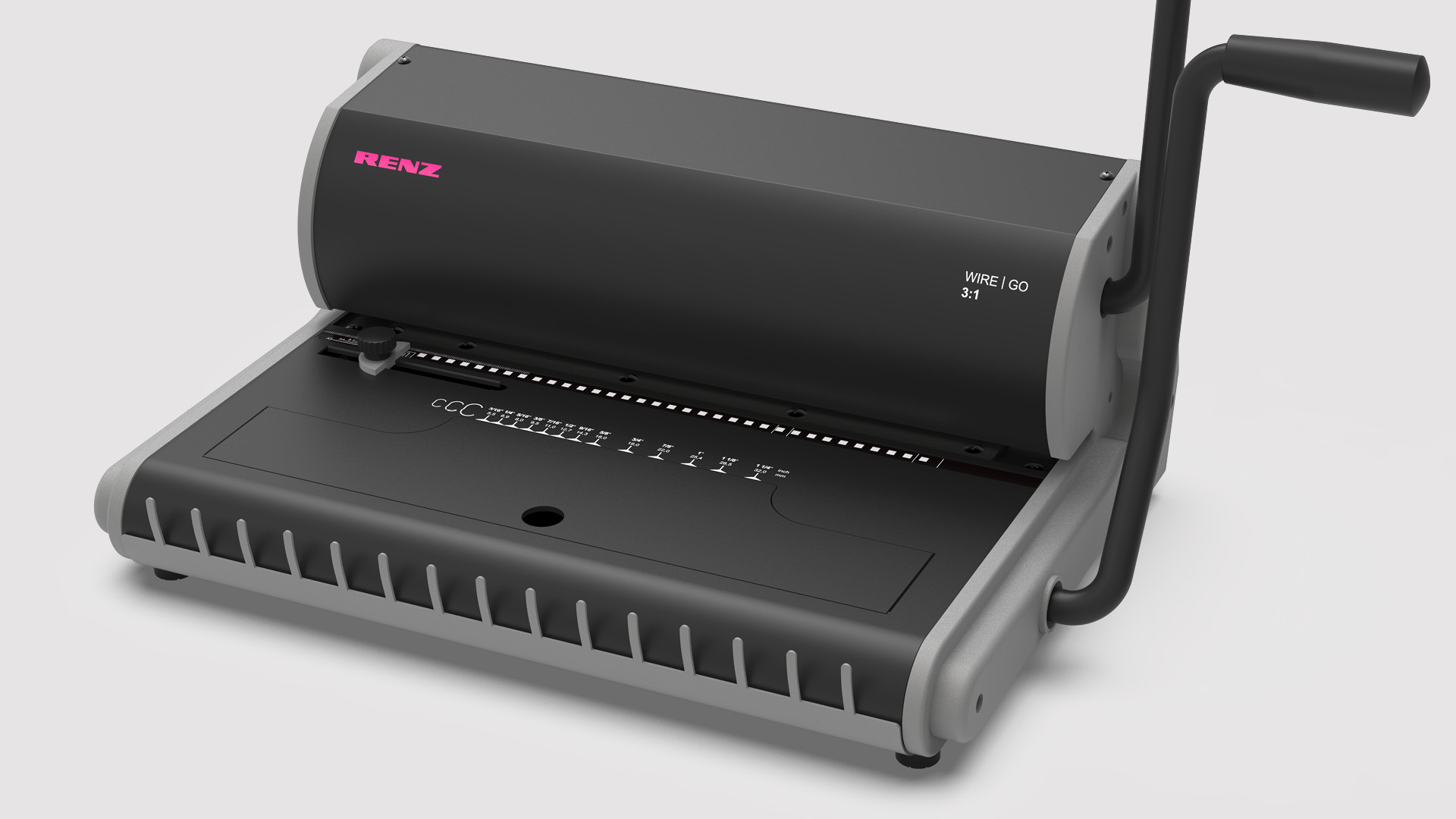

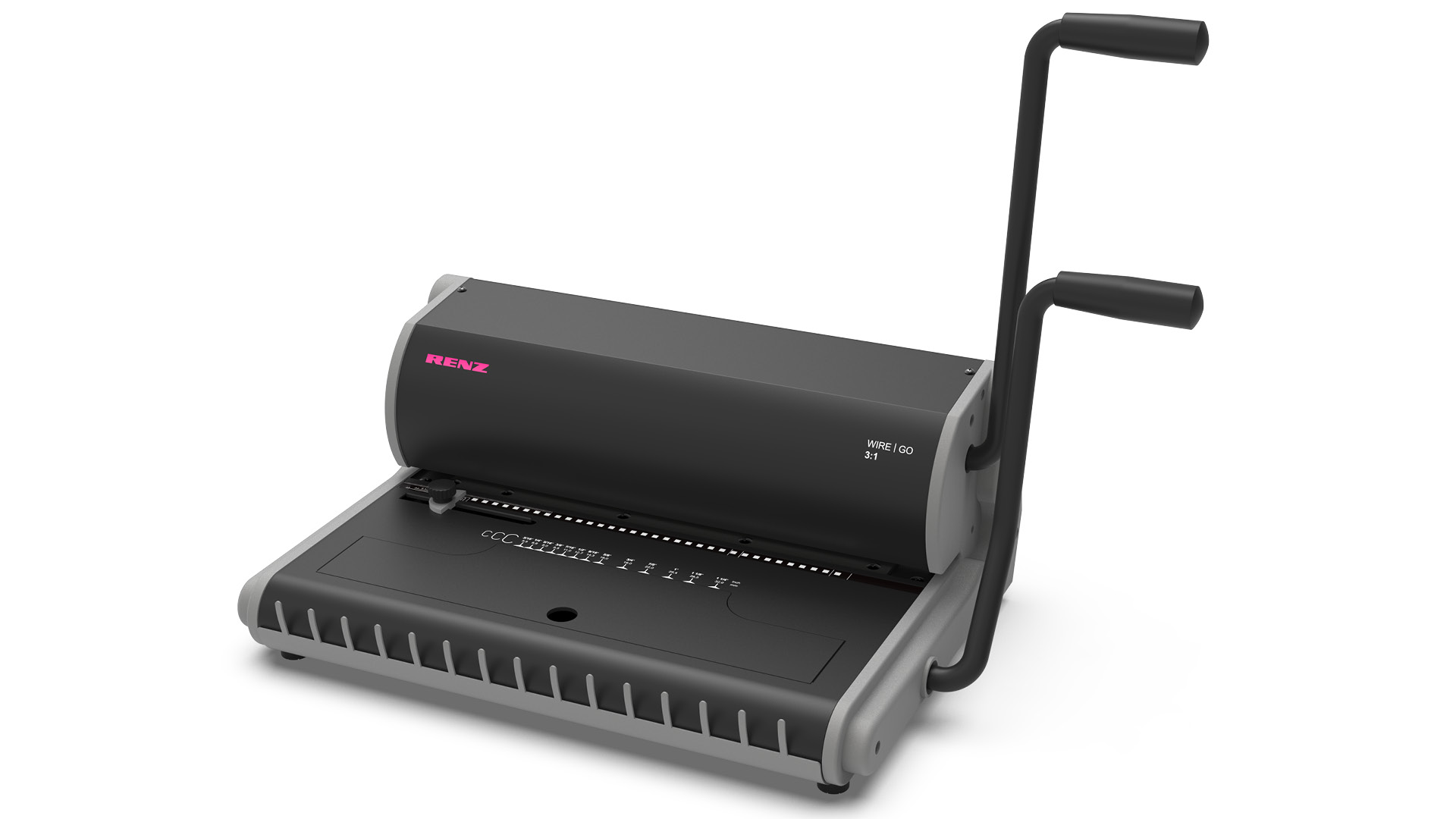

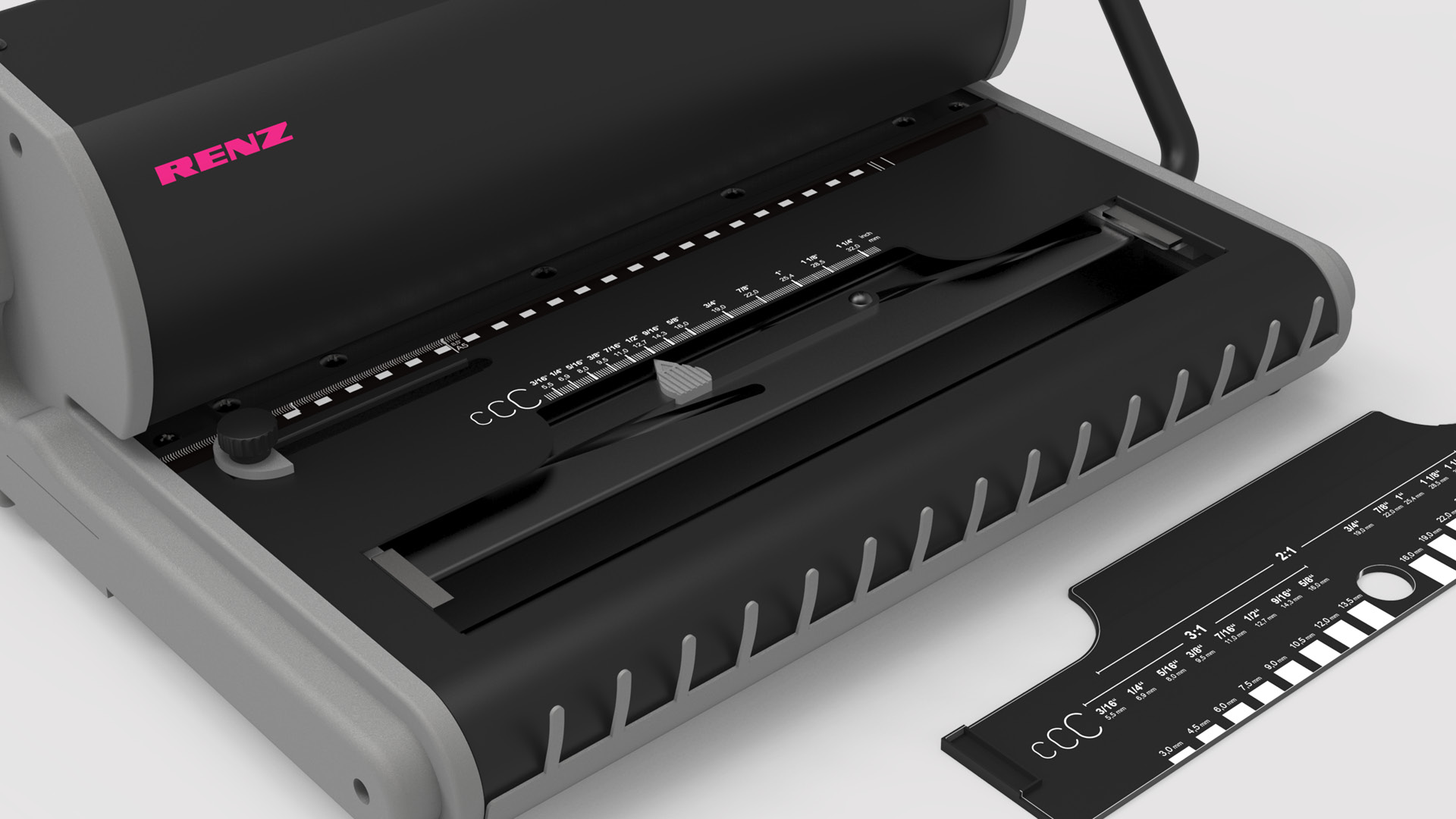

The RENZ Wire|Go 3:1 is a compact manual 3:1 wire comb binding machine for punching and binding with wire combs in A4 or A5 – ideal for use at home or in the office. With a working width of 300 mm, it binds up to 135 sheets (13.5 mm block thickness) using 3:1 pitch (34 rings per A4). The ergonomic two-handle system ensures comfortable punching and binding. Diameter setting is done via a slider, and a built-in wire size guide helps choose the correct comb. With durable metal housing, fixed punching pins, and a large waste tray, this is the reliable choice for clean, precise wire binding.
Features
- Punches up to 20 sheets per stroke
- Binds up to 135 sheets (13.5 mm)
- 3:1 pitch (34 rings per A4)
- 300 mm working width – for A4 and A5

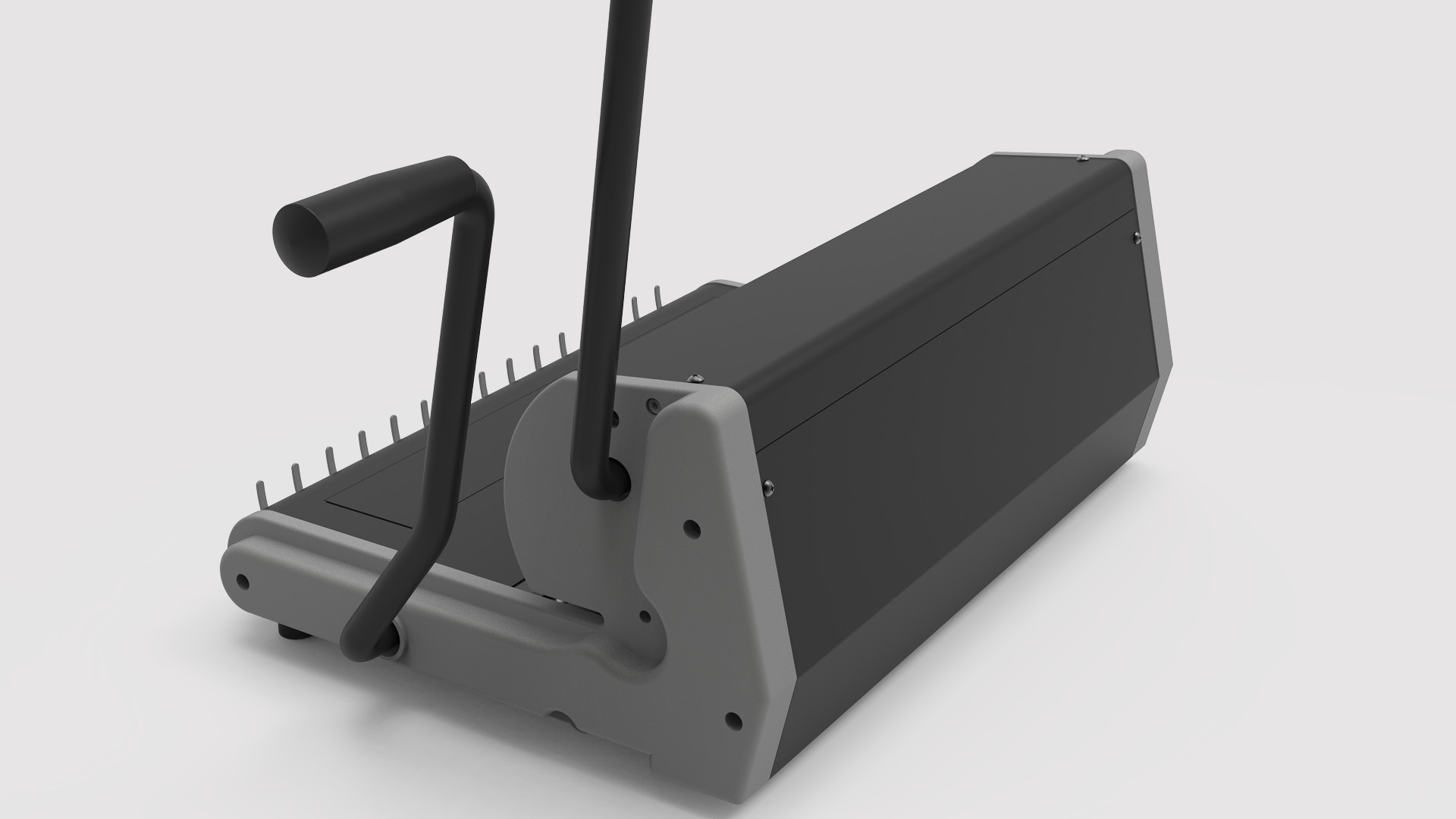

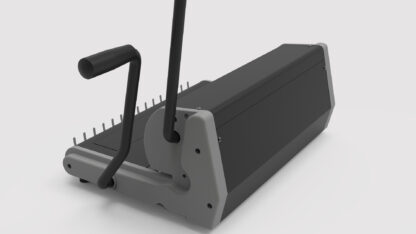

- Ergonomic two-handle operation
- Integrated wire holder for easy binding

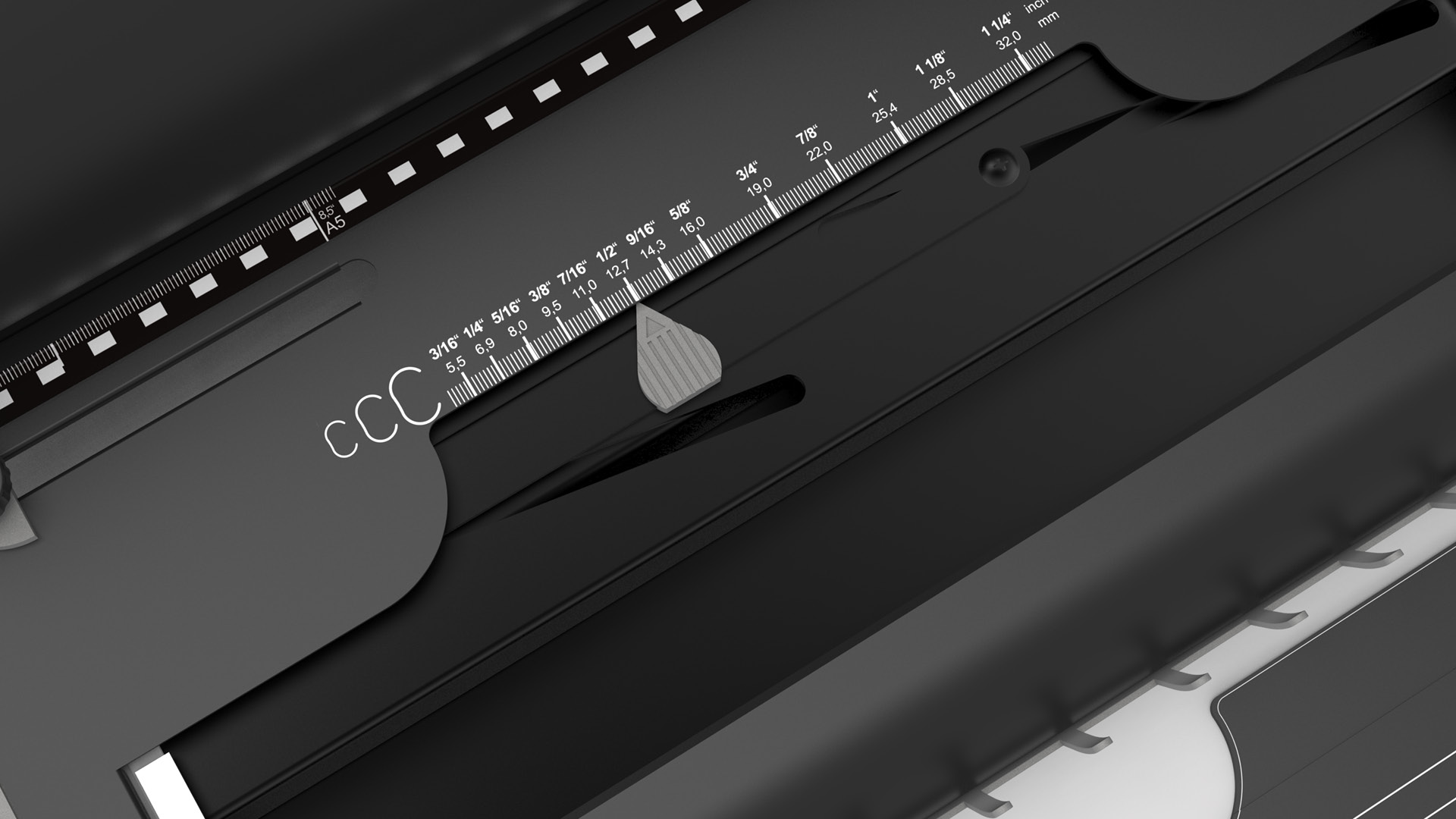

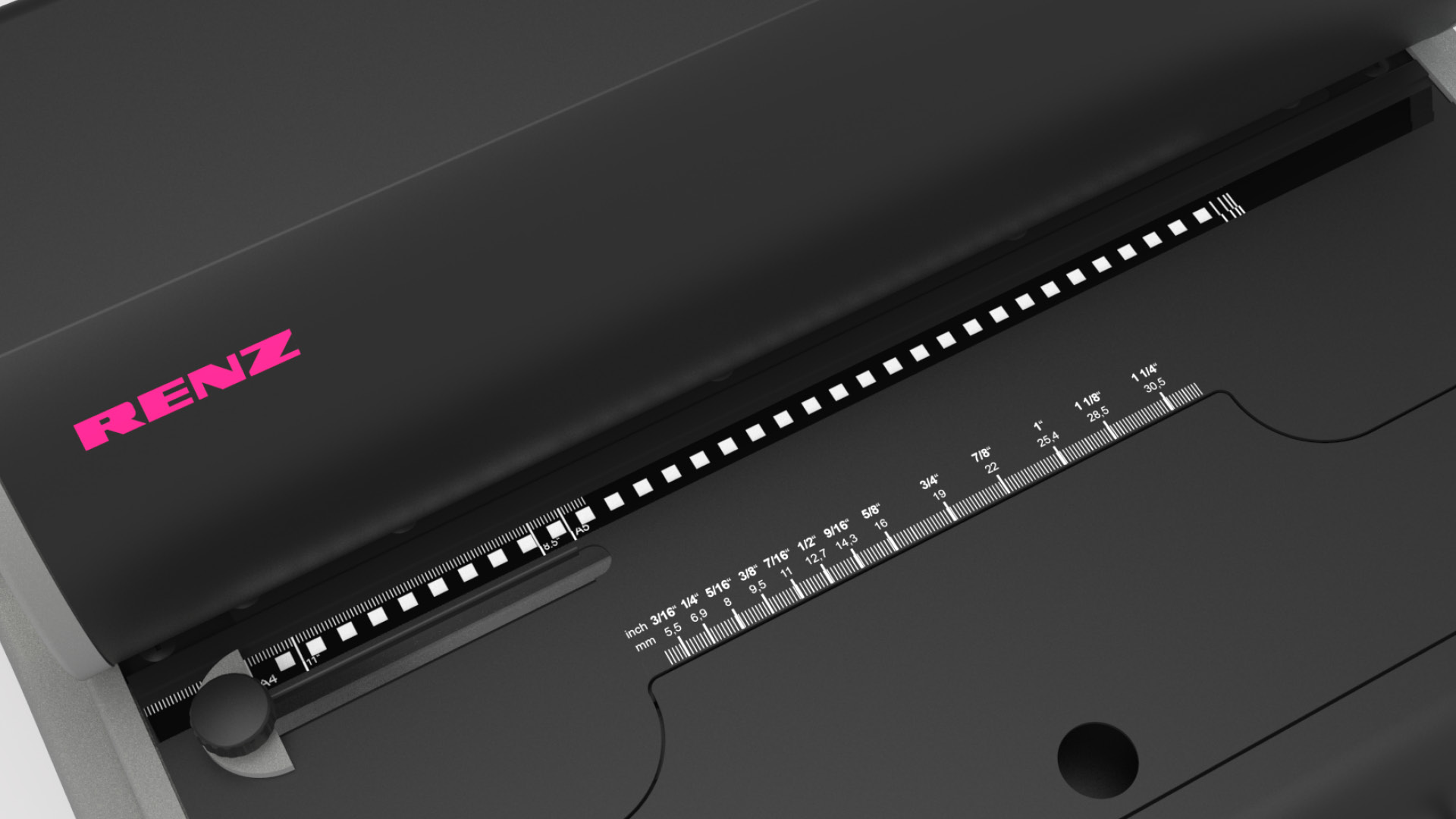

- Quick diameter setting via slider

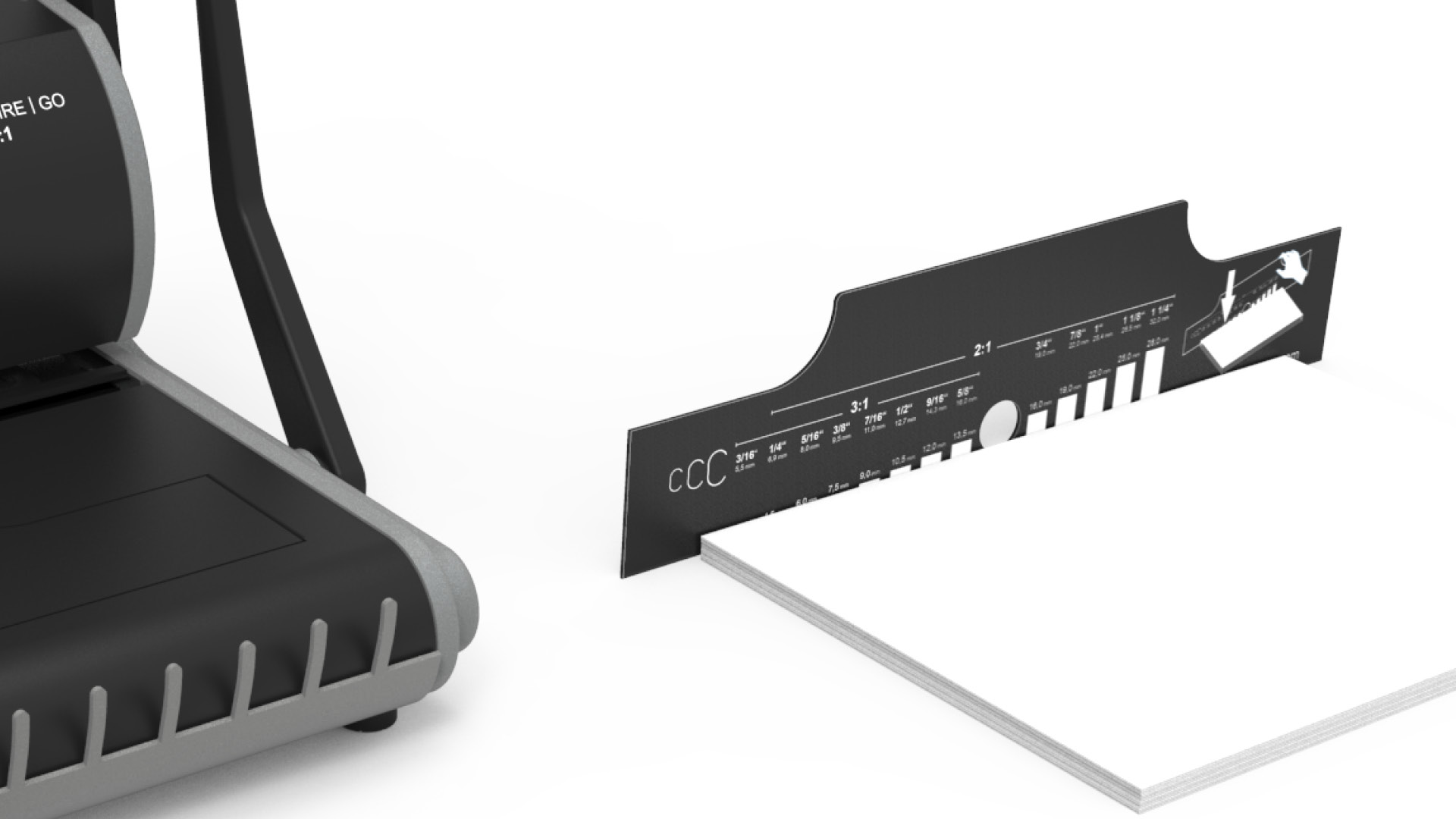

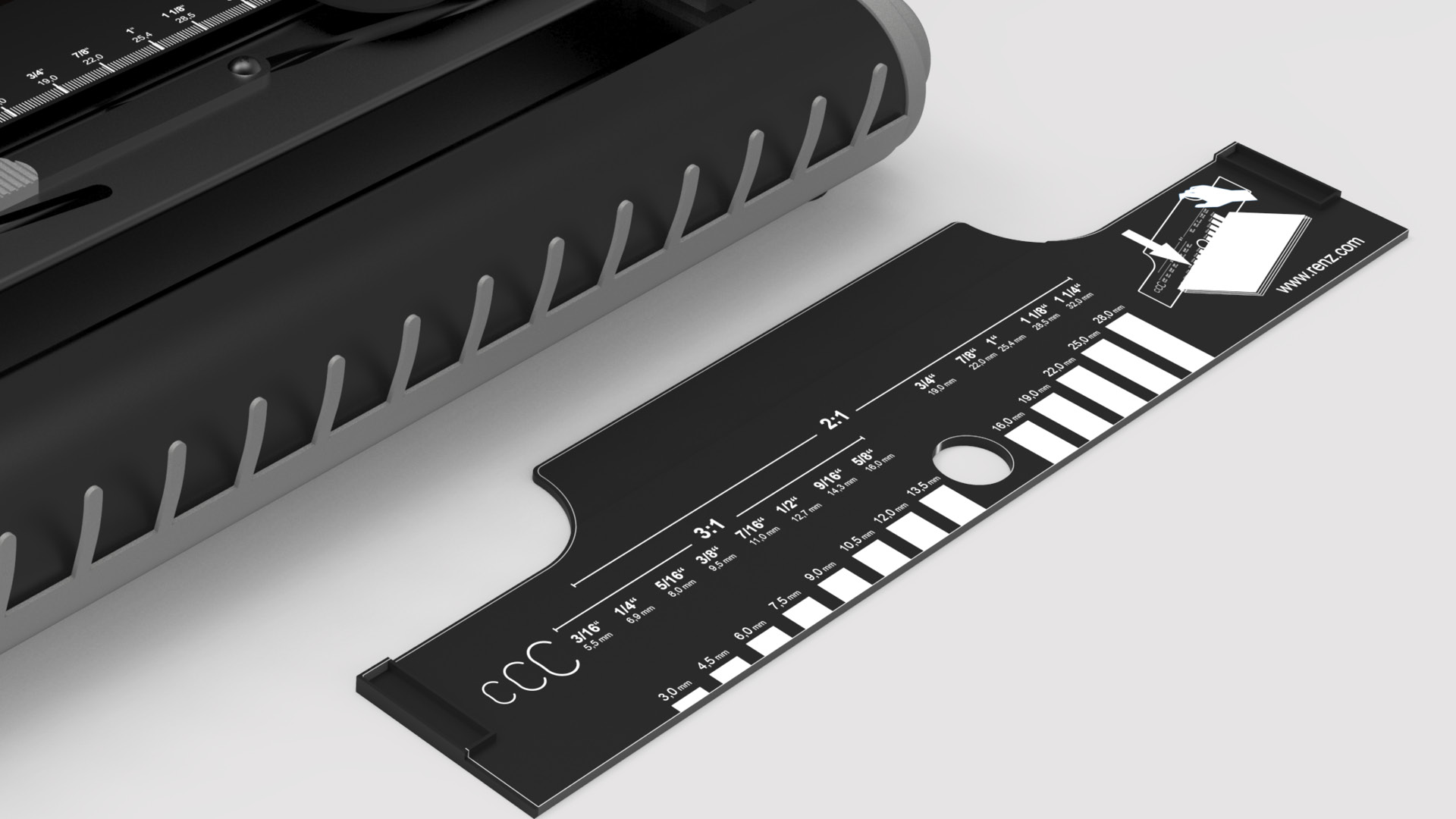

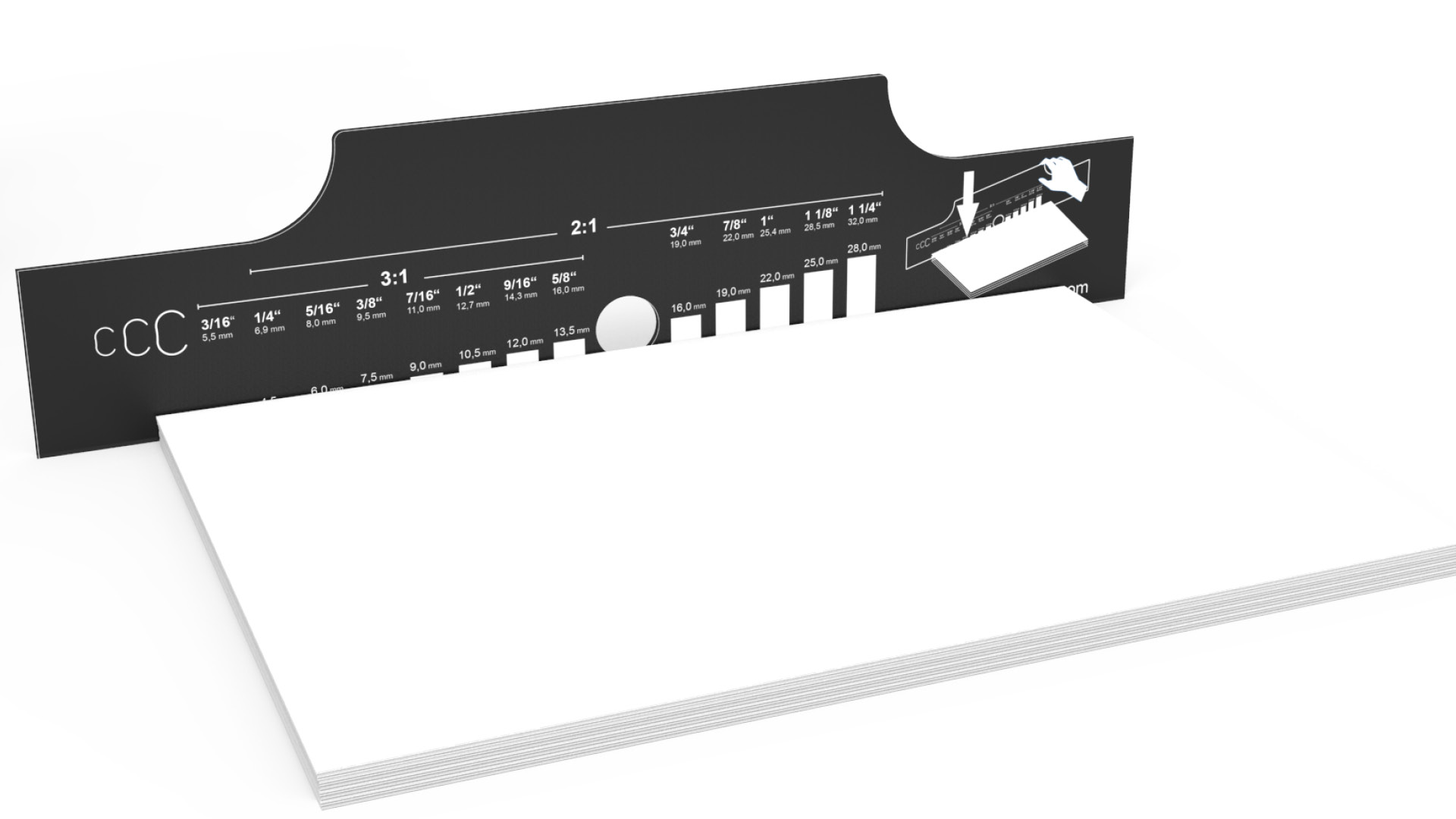

- Wire size guide built into the cover
- Fixed margin and punching pins
- Large waste tray
- Durable metal construction (15 kg)
Properties
| Product type: | Manual punching and binding machine |
|---|---|
| Field of application: | Wire comb binding |
| Function: | manual punching and binding |
| Operation: | Punching lever, Binding lever |
| Setup / Settings: | manuell |
| Format change: | 0,1 min |
| Diameter change: | 0,1 min |
| Working width: | 300 mm |
| Min. format (w x l): | 10 x 50 mm |
| Max. format (w x l): | 300 x 500 mm |
| Pitch: | 3:1 |
| Hole pattern: | square hole |
| Punch pattern: | 4,0 x 4,0 mm |
| Selectable punch pins (QSA): | no |
| Adjusting margin depth: | fixed margin depth |
| Workable diameters: | Ø 1/4″ – 5/8″ (6,9 – 16,0 mm) |
| Max. binding thickness (mm): | 13,5 mm |
| Max. binding thickness (sheets, 70-80gsm): | 135 |
| Max. punching thickness: | 2,0 mm |
| Max. punched sheets p/h: | 12000 |
| Max. bound items /h: | 180 |
| Product size (w x h x d): | 456 x 190 x 333 mm |
| Product weight: | 15,4 kg |
