Renz – AUTOBIND 500 // Semi-automatic high-speed binding machine for wire comb bound book, calendar, and skip bindings up to 500 mm

Vendor: Renz
Categories: , ,

Description

RENZ

Autobind 500

Productive binding with system – the RENZ Autobind 500 combines precision and speed.

The RENZ Autobind 500 is the ideal solution for industrial book, calendar and skip binding – with automatic closure table, adjustable format control and optional calendar hanger system.

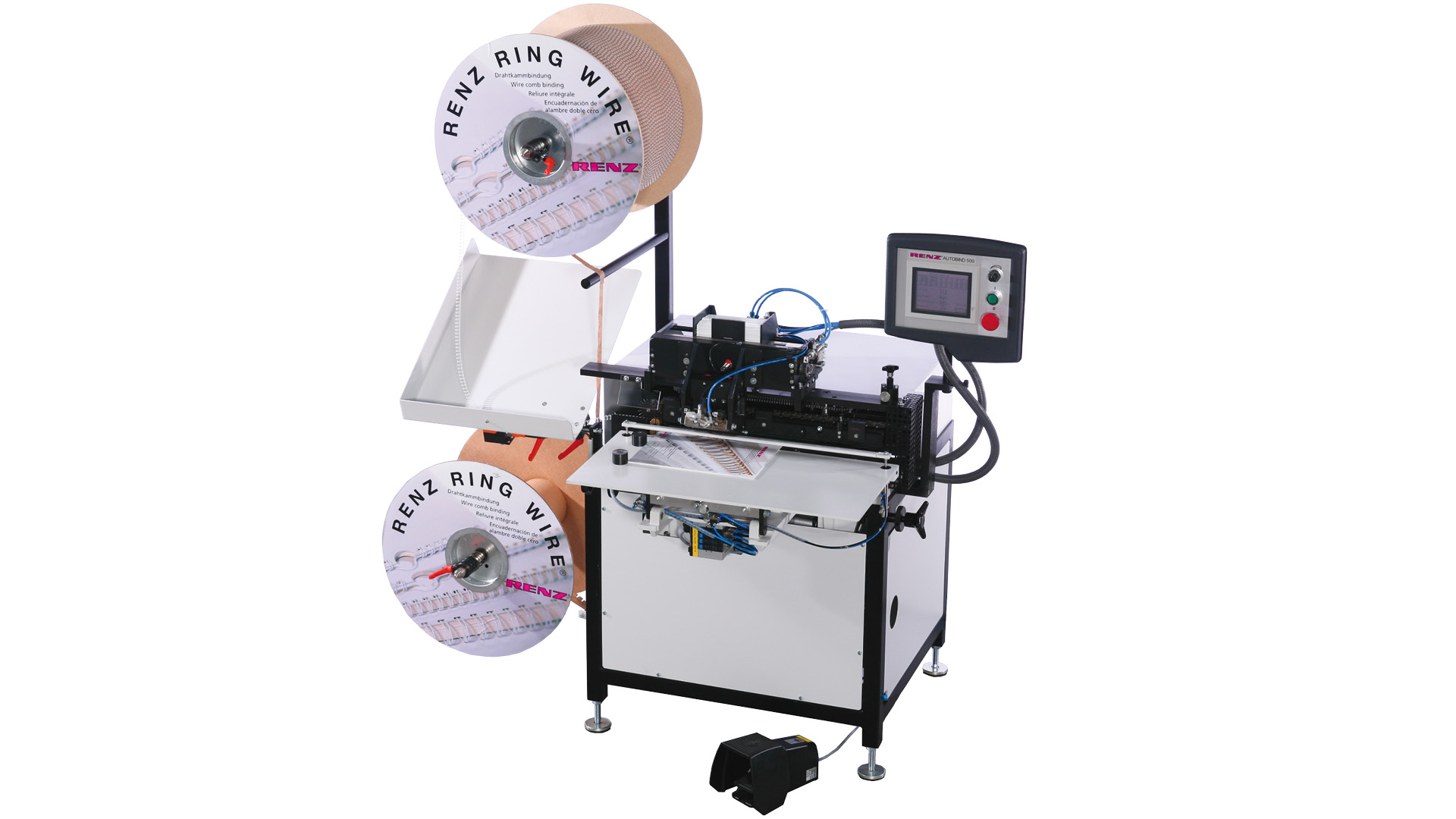

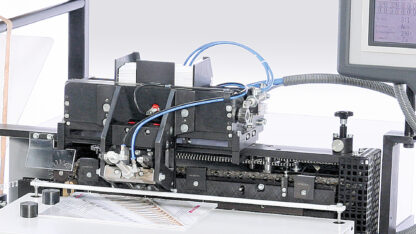

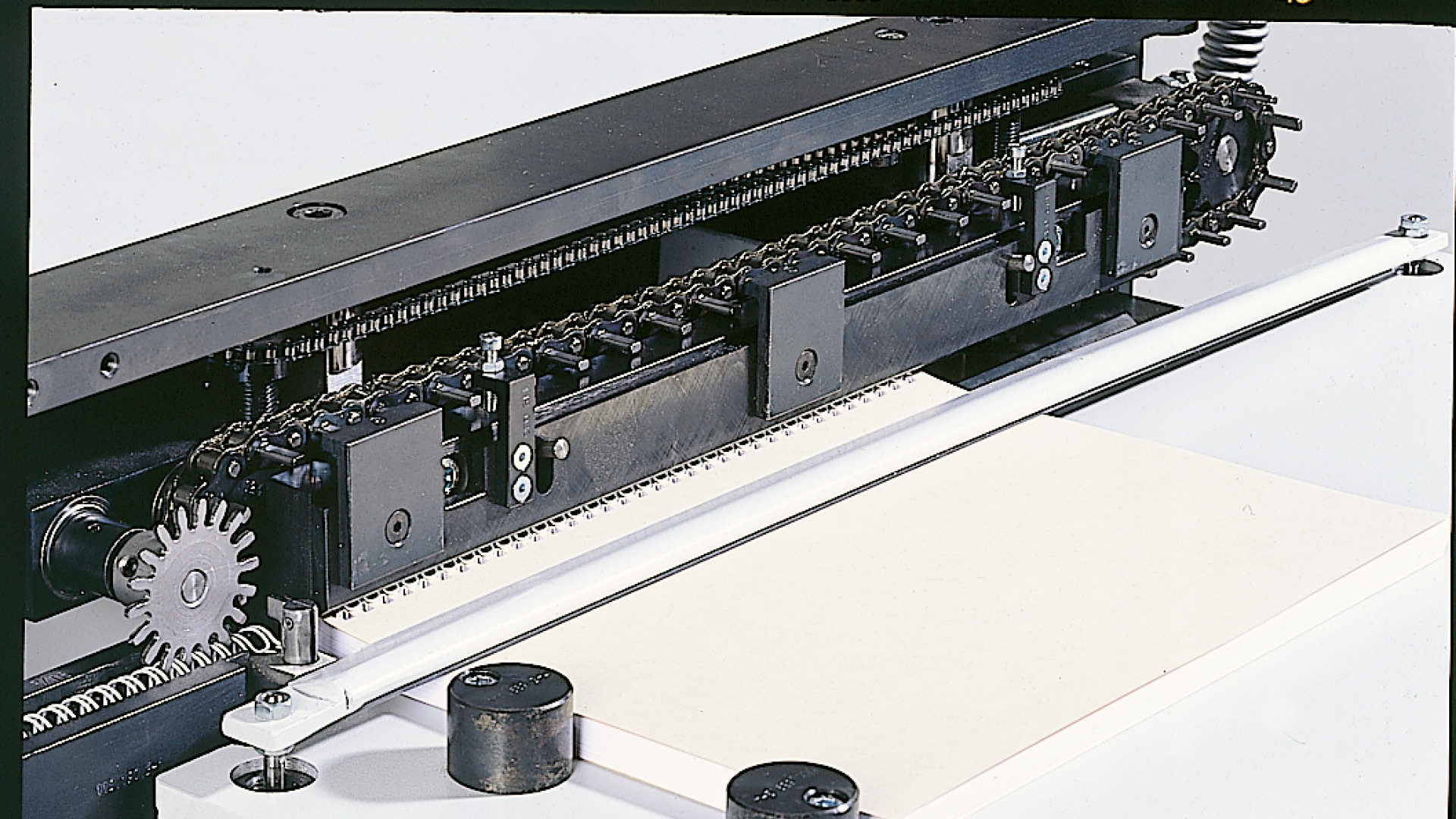

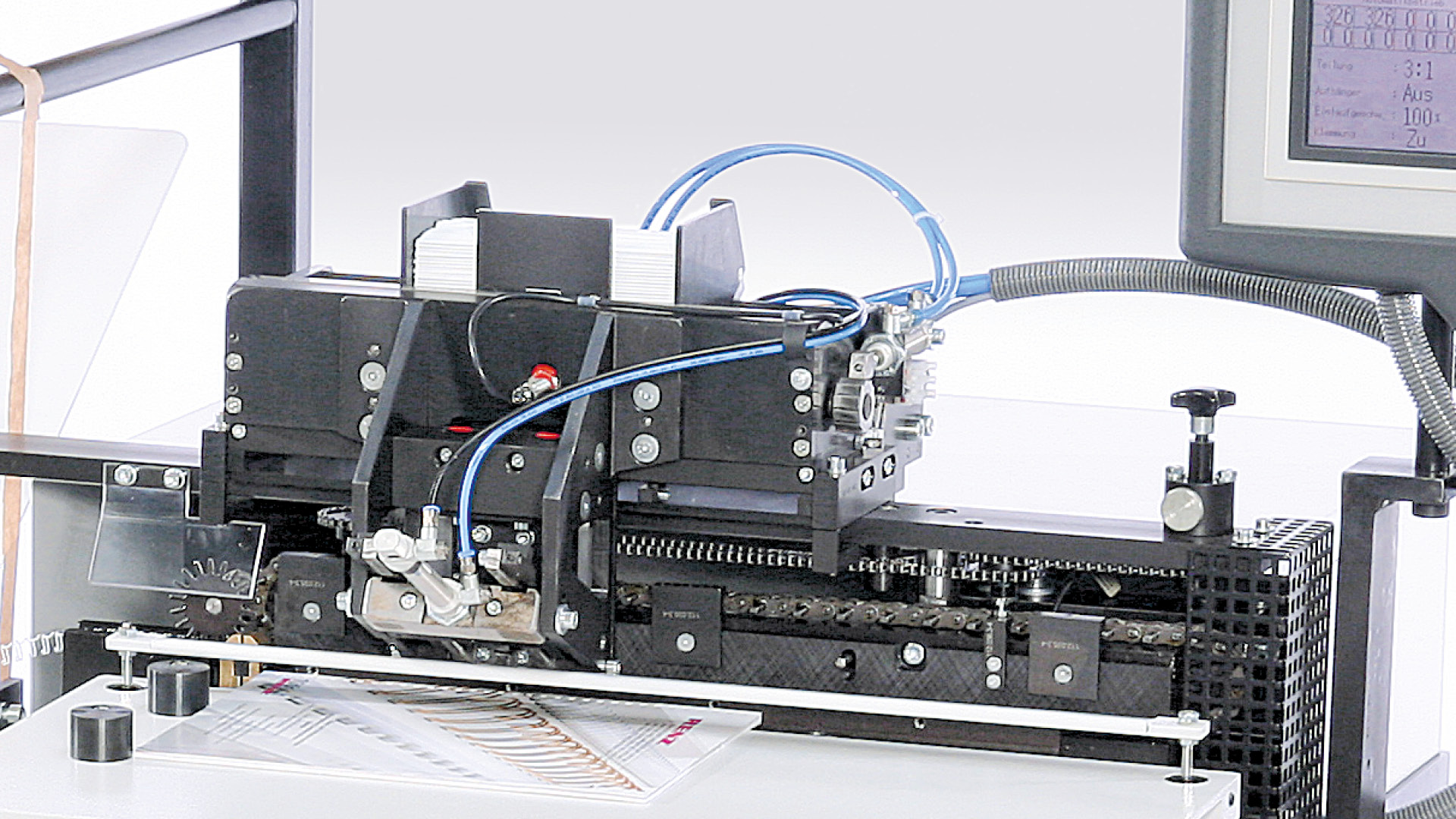

The RENZ Autobind 500 is an industrial, semi-automatic high-speed binding machine designed for processing RENZ RING WIRE® in book, calendar, and skip binding applications. With its high format flexibility and strong productivity, it is ideally suited for post-press operations involving large volumes. The horizontal paper feed supports precise and ergonomic placement of the product to be bound. The automatic closure table clamps the product securely and guides it accurately and reliably into the binding unit, where the wire element is automatically inserted and closed to perfection. The user-friendly touchscreen interface allows for fast and easy format adjustments. For every wire diameter, dedicated RENZ closing tools are available to ensure a consistently perfect round closure. Optional features such as a side lay for products with protruding edges and the KAS calendar hanger system (up to 500 mm) make the Autobind 700 an ideal solution for industrial-scale professional binding applications.

Features

  • Semi-automatic ring wire comb binding machine for books, calendars and skip binding
  • High productivity and flexibility of different paper formats

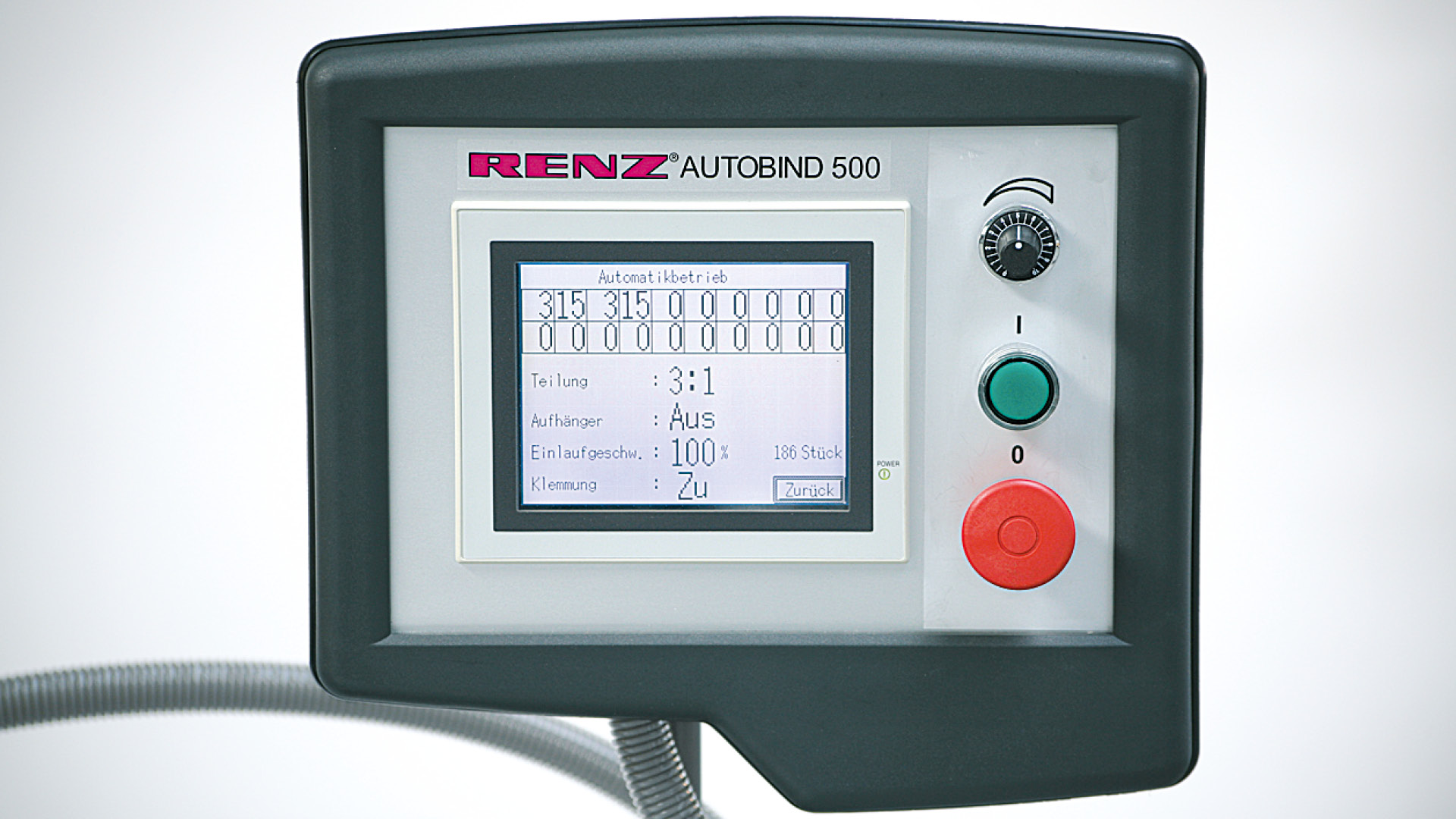

  • Touch screen assisted setup process
  • Binds up to 230 sheets
  • Horizontal paper feeding for easy product loading
  • Automatic closure table
  • Optional extra:
    – KAS calendar hanger systems
    – Side lay allow oversized products to be bound



Properties

Product type: Semi-automatic binding machine
Field of application: Wire comb binding, Calendar binding
Function: electrical binding
Operation: Foot switch
Setup / Settings: Touchscreen, manuell
Format change: 1 min
Diameter change: 15 min
Working width: 500 mm
Min. format (w x l): 60 x 100 mm
Max. format (w x l): 500 x 500 mm
Pitch: 3:1, 2:1
Workable diameters: Ø 1/4“ – 1 1/8“ (6,9 – 28,5 mm)
Mechanical cycles /h: 2000
Max. bound items /h: 1200
Feeding calendar hangers (optional): KAS 300 (80 – 300 mm)
Compressed air requirement: 7,5 bar (300 – 320 l/min)
Power requirement: 230V, 1PH/N/PE, 50Hz, 600W
Power requirement (alternativ): 115V, 1PH/N/PE, 60Hz, 600W
Product size (w x h x d): 1650 x 1700 x 1560 mm
Product weight: 212,0 kg





Product Sell Sheet:


Product video:
